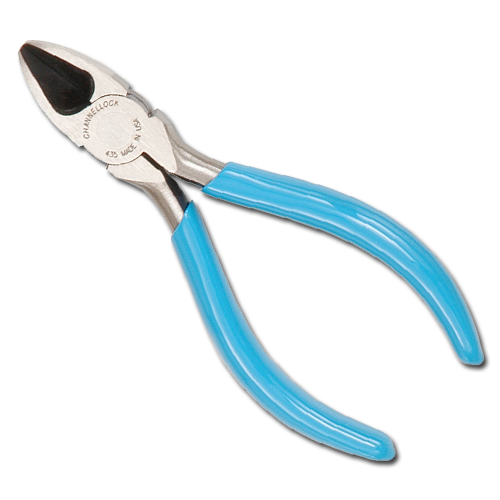

5" Diagonal Box Joint Cutting Plier

CHANNELLOCK® Box Joint Diagonal Cutting Pliers provide powerful cutting capabilities on the job. Cutting capabilities include piano wire (0.063" min diameter - 0.080" max diameter), hard wire (0.047" - 0.091"), medium hard wire (0.047" - 0.091") and soft wire (0.162" max diameter). Made in the USA

C1080 Steel

• CHANNELLOCK uses high-carbon C1080 steel for superior performance on the job and specially coated for ultimate rust prevention

Blue Grips

• CHANNELLOCK BLUE grips for comfort

Knife-And-Anvil Cutting Edge

• Only CHANNELLOCK uses a knife and anvil style cutting edge to ensure perfect mating and superior cutting edge life

Cutting Edges

• Laser heat-treated cutting edges last longer

Joint Design

• Box joint diagonal

Specs

• (C) Joint Thickness: 11.00 mm
• (C) Joint Thickness: 0.43 in
• Weight: 0.28 lbs
• (D) Joint Width: 17.50 mm
• (B) Jaw Length: 22.00 mm
• Weight: 127.00 g
• (H) Handle Span: 48.00 mm
• (D) Joint Width: 0.69 in
• (H) Handle Span: 1.89 in
• (E) Cutting Edge: 0.87 in
• (E) Cutting Edge: 22.00 mm
• (A) Overall Length: 125.00 mm
• (B) Jaw Length: 0.87 in
• (A) Overall Length: 5.00 in
