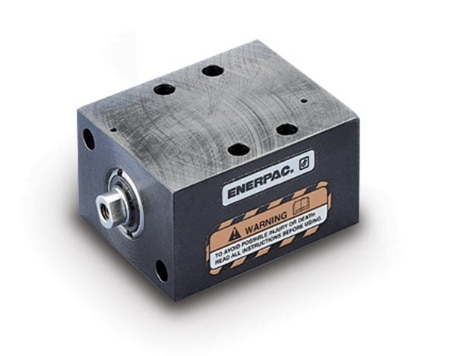

CDB40502, 4900 lbs Capacity, 1.97 in Stroke, Double-Acting, Block Hydraulic Cylinder

Features

• Six clamping capacities enable you to choose the right size for your application
• Filtered vent plug
• Variety of strokes, to meet design needs
• Integral wiper ring, keeps contaminants out of cylinder to extend life
• Double acting and Single acting (spring return), allows selection of cylinder that best conforms to your hydraulic system
• Oil connection alternatives: cylinders incorporate both manifold mount and plumbed options to meet your fixturing needs
• Hard chrome-plated plunger
• Strong return spring
• Manifold O-ring ports
• BSPP oil port
• Internal threaded plunger
• Compact cylinder design does not require large amounts of space on your fixture
• Black oxide base

Hydraulic Cylinders

• Dimension L: 2.36 in | 60,0 mm
• Dimension S: 0.87 in | 22,0 mm
• Clamping Force Advancek N: 43,3
• Cylinder Effective Area Advance: 1.95 in² | 12,6 cm²
• Dimension Z: 0.05 in | 1,3 mm
• Dimension F1: 0.94 in | 23,9 mm
• Maximum Operating Pressure Ranges psi: 5000
• Stroke Ranges: 1.0 - 1.99 in
• Dimension M: 35,0 mm
• Piston Diameter: 39,9 mm
• Dimension O: 0.98 in | 24,9 mm
• Dimension X: 2.46 in
• Piston: 1.57 in
• Rodin: 0.97
• Cylinder Effective Area Retract: 0.98 in² | 6,3 cm²
• Maximum Cylinder Capacity Retract: 4900 lbs
• Oil Capacity Advance: 3.83 in³ | 62,8 cm³
• Dimension N: 0.39 in | 9,9 mm
• Dimension T: 0.37 in | 9,4 mm
• Dimension P: 2.17 in | 55,1 mm
• Oil Capacity Retract: 1.93 in³ | 31,6 cm³
• Return Type: Double-Acting, Hydraulic Return
• Maximum Cylinder Capacity Advance: 9750 lbs
• Dimension W: 0.39 in | 9,4 mm
• Cylinder Material: Steel
• Dimension R: 1.08 in | 27,4 mm
• Dimension U: 1.07 in | 27,1 mm
• Rodmm: 24,6
• Dimension Min: 1.38
• Dimension Q: 2.46 in | 62,5 mm
• Dimension V: 0.42 in | 10,6 mm
• Plunger Type: Solid
• Clamping Force Retractk N: 21,8

Specifications

• Sub Types: Workholding Block Cylinder
• News Feed Product Group: Cylinders and Jacks
• Product Line: Workholding Tools
• Type: Hydraulic Cylinders
• Country of Origin: United States
• Weight: 5.7 lbs | 2,6 kgs

Dimensions

• Dimension G: G1/8 In | G1/8 Mm
• Dimension K: M16 x 2,0 In | M16 x 2,0 Mm
• Dimension A: 6.11 In | 155,2 Mm
• Dimension H: 0.39 In | 9,9 Mm
• Dimension D: 3.15 In | 80,0 Mm
• Dimension J: 2.26 In | 57,4 Mm
• Dimension F: 0.39 In | 24,6 Mm
• Dimension B: 4.15 In | 105,4 Mm
• Dimension C: 3.67 In | 93,2 Mm
