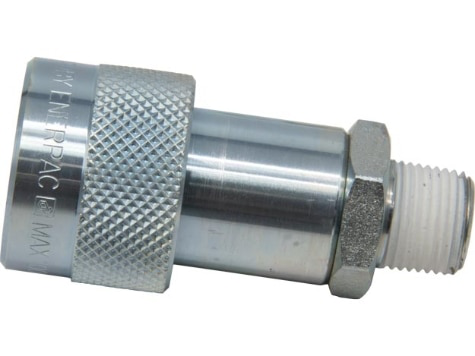

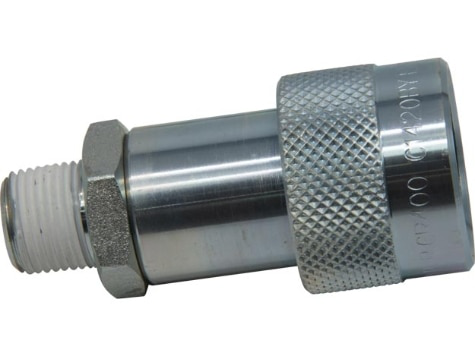

CR400, High Flow Hydraulic Coupler, Female Half

Features

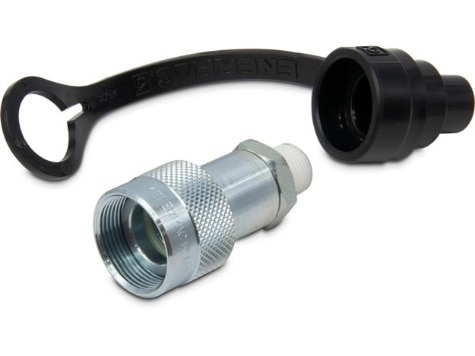

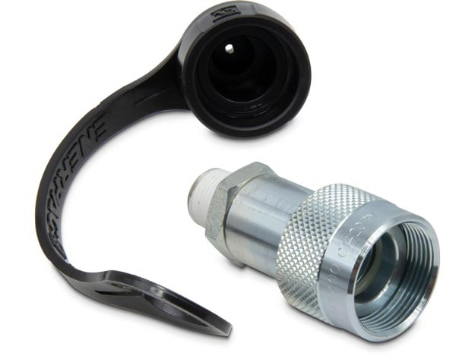

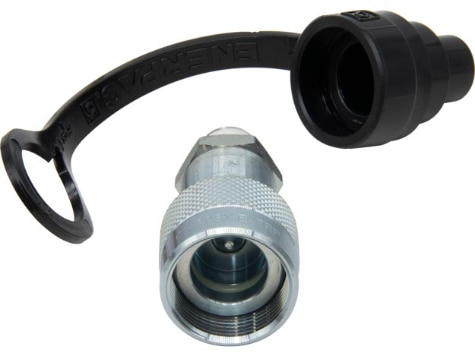

• Include "2-in-1" dust cap for use on male and female coupler halves
• Dimension A is total length when male and female halves are connected.
• Standard equipment on most Enerpac cylinders
• 3/8" High Flow Couplers
• Reccomended for use on all Enerpac pumps and cylinders where space and porting permits

Dimensions

• Dimension A: 3.26 In | 83 Mm
• Dimension C: 3/8 NPTF In | 3/8 nptf Mm
• Dimension F: 1.25 In | 32 Mm
• Dimension D: 1.38 In | 35 Mm
• Dimension E: 1.38 In | 36 Mm
• Dimension B: 2.87 In | 64 Mm
• Dimension G: 1 In | 25 Mm

Specifications

• Product Line: Industrial Tools, Workholding Tools, Bolting Tools
• Shipping Weight: 0.53 lbs
• News Feed Product Group: Couplers
• Type: Coupler
• Sub Types: High Flow Coupler
• Country of Origin: China

Coupler

• Maximum Flow Capacity: 2500 in³/min | 35 L/min
• Maximum Operating Pressure: 10000
