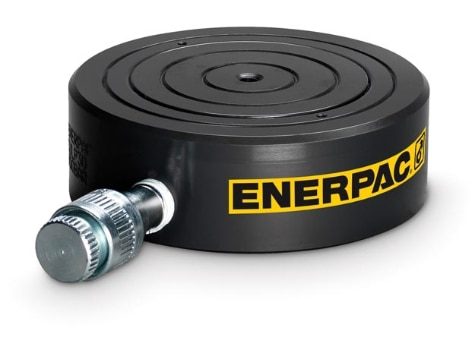

CULP30, 34.8 ton Capacity, 0.24 in Stroke, Ultra Flat Hydraulic Cylinder with Stop-Ring

Features

• Stop-ring for maximum stroke limitation
• Coupler AR630 including dustcap: Use HB7206 hose including AH630 coupler to connect to your pump.
• Up to 4% side load of maximum capacity
• Extremely low collapsed height
• Nitrocarburized surface treatment for harsh conditions

Hydraulic Cylinders

• Oil Capacity Advance: 1.62 in³ | 26,5 cm³
• Cylinder Class: 30 Imperial Tons
• Outside Diameter D: 4.13 in | 105 mm
• Cylinder Bore Diameter E: 2.95 in | 75 mm
• Extended Height B: 1.61 in | 41,0 mm
• Return Type: Single-Acting, Load Return
• Maximum Operating Pressure Ranges psi: 10000
• Cylinder Material: Steel
• Plunger Type: Solid
• Collapsed Height A: 1.38 in | 35 mm
• Surface Treatment: Nitride
• Collapsed Height A Ranges: 0 - 4.99 in | 0 - 127 mm
• Cylinder Effective Area Advance: 6.85 in² | 44,2 cm²
• Stroke Ranges: 0 - 0.99 in | 0 - 23 mm
• Maximum Cylinder Capacity Advance: 34.8 Imperial Tons | 310 kN

Specifications

• Sub Types: Low Height Cylinder
• Shipping Weight: 5.51 lbs
• Type: Hydraulic Cylinders
• Weight: 6 lbs | 2,5 kgs
• Product Line: Industrial Tools
• Country of Origin: Spain
