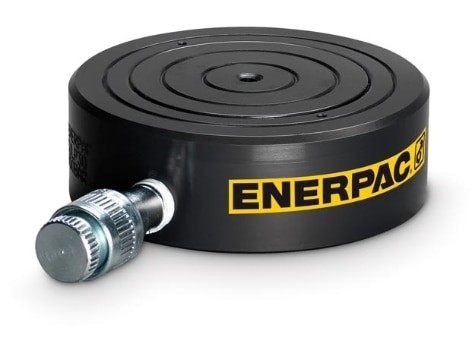

CULP50, 61.8 ton Capacity, 0.24 in Stroke, Ultra Flat Hydraulic Cylinder with Stop-Ring

Features

• Up to 4% side load of maximum capacity
• Stop-ring for maximum stroke limitation
• Coupler AR630 including dustcap: Use HB7206 hose including AH630 coupler to connect to your pump.
• Nitrocarburized surface treatment for harsh conditions
• Extremely low collapsed height

Specifications

• Sub Types: Low Height Cylinder
• Upsell item: CUSP50
• Country of Origin: Spain
• Type: Hydraulic Cylinders
• Weight: 11.9 lbs | 5,4 kgs
• Shipping Weight: 10.36 lbs
• Product Line: Industrial Tools
• News Feed Product Group: Cylinders and Jacks

Hydraulic Cylinders

• Cylinder Class: 50 Imperial Tons
• Collapsed Height A Ranges: 0 - 4.99 in | 0 - 127 mm
• Cylinder Material: Steel
• Return Type: Single-Acting, Load Return
• Extended Height B: 1.99 in | 50,5 mm
• Collapsed Height A: 1.75 in | 44.5 mm
• Cylinder Bore Diameter E: 3.94 in | 100 mm
• Plunger Type: Solid
• Stroke Ranges: 0 - 0.99 in | 0 - 23 mm
• Surface Treatment: Nitride
• Oil Capacity Advance: 2.88 in³ | 47,1 cm³
• Outside Diameter D: 5.51 in | 140 mm
• Maximum Cylinder Capacity Advance: 61.8 Imperial Tons | 550 kN
• Maximum Operating Pressure Ranges psi: 10000
• Cylinder Effective Area Advance: 12.17 in² | 78,5 cm²
