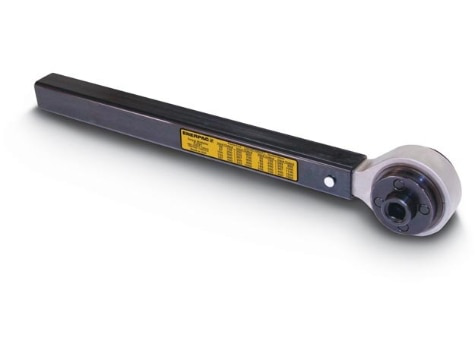

E291, Manual Torque Multiplier, Reaction Bar, 1000 ft. lbs Torque, 3/4 in. Square Drive

Features

• Reversible, tighten or loosen bolts
• Accuracy ± repeatable from 20% to 100% of scale
• Reaction bar or reaction plate type
• Most models operator protected by anti-backlash device
• High efficiency planetary gear sets achieve high output torque from low input torque

Torque Wrench

• input Torque: 411 Nm | 303 ft lbs
• Anti Backlash: No
• Torque Ratio: 3,3 : 1
• Maximum Torque Output: 1000 ft lbs | 1358 Nm
• Dimension L: 17.4 in | 443 mm
• Overload Protection: No

Specifications

• Product Line: Bolting Tools
• Type: Torque Wrench
• News Feed Product Group: Multipliers, Torque Wrenches
• Sub Types: Reaction Bar Multiplier
• Upsell item: E391,E392,E393,E492,E493,E494,E495,PTW1000C
• Length: 17.4 in | 442 mm
• Weight: 5.5 lbs | 2.5 kgs
• Shipping Weight: 5.82 lbs
• Width: 2.8 in | 71 mm
• Country of Origin: United States

Dimensions

• Dimension H: 3.3 In
• Dimension D: 71 Mm
