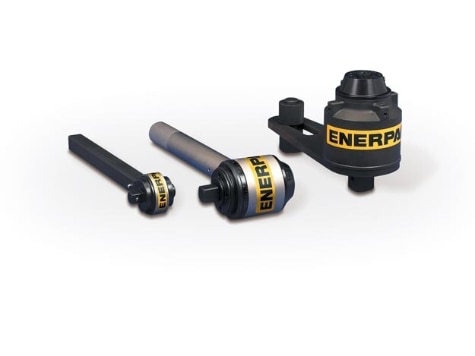

E391, Manual Torque Multiplier, Reaction Bar, 1200 ft. lbs Torque, 3/4 in. Square Drive

Features

• Multiplier output accuracy ± 5% of input torque
• Reaction bar or reaction plate type
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• High efficiency planetary gear sets achieve high output torque from low input torque
• Most models operator protected by anti-backlash device
• Angle-of-turn protractor standard on E300 series models
• Reversible, tighten or loosen bolts

Torque Wrench

• Overload Protection: Yes
• input Torque: 271 Nm | 200 ft lbs
• Anti Backlash: No
• Output Male Square Drive Replaceable Shear Drive Model: E391SDK
• Maximum Torque Output: 1200 ft lbs | 1627 Nm
• Dimension L: 19.6 in | 497 mm

Specifications

• Product Line: Bolting Tools
• Shipping Weight: 15.7 lbs
• Type: Torque Wrench
• Sub Types: Reaction Bar Multiplier
• Height: 4 in | 102 mm
• Weight: 13.8 lbs | 6.3 kgs
• News Feed Product Group: Multipliers, Torque Wrenches
• Upsell item: E392,E393,E492,E493,E494,E495,PTW2000C
• Length: 19.6 in | 498 mm
• Country of Origin: United States
• Width: 3.9 in | 99 mm

Dimensions

• Dimension D: 3.9 In | 100 Mm
• Dimension H: 4 In | 102 Mm
