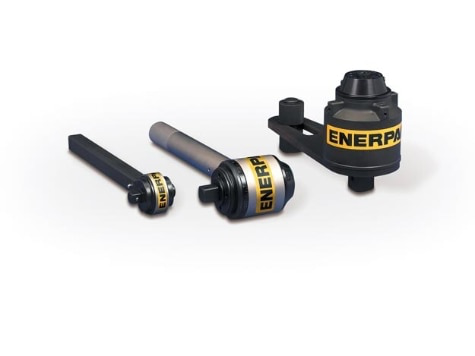

E392, Manual Torque Multiplier, Reaction Bar, 2200 ft. lbs Torque, 1 in. Square Drive

Features

• Most models operator protected by anti-backlash device
• Angle-of-turn protractor standard on E300 series models
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• High efficiency planetary gear sets achieve high output torque from low input torque
• Reaction bar or reaction plate type
• Reversible, tighten or loosen bolts
• Multiplier output accuracy ± 5% of input torque

Specifications

• Type: Torque Wrench
• Length: 19.6 in | 498 mm
• News Feed Product Group: Multipliers, Torque Wrenches
• Country of Origin: United States
• Weight: 18.3 lbs | 8.3 kgs
• Upsell item: E393,E492,E493,E494,E495,PTW2000C
• Height: 5.7 in | 145 mm
• Width: 4.1 in | 104 mm
• Sub Types: Reaction Bar Multiplier
• Product Line: Bolting Tools
• Shipping Weight: 23 lbs

Torque Wrench

• Dimension L: 19.6 in | 498 mm
• Anti Backlash: Yes
• Output Male Square Drive Replaceable Shear Drive Model: E392SDK
• Maximum Torque Output: 2200 ft lbs | 2983 Nm
• Overload Protection: Yes
• Square Drivein: 1
• Output Male Square Drive S2: 1 in
• input Torque: 220 Nm | 162 ft lbs
• Torque Ratio: 13,6 : 1

Dimensions

• Dimension H: 5.7 In | 146 Mm
• Dimension D: 4.1 In | 103 Mm
