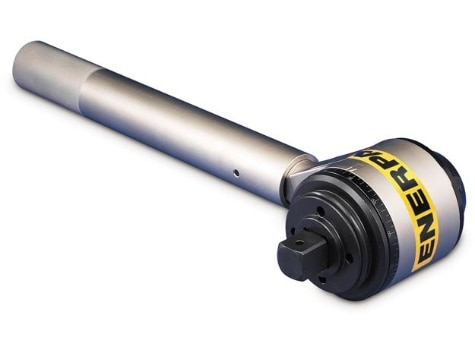

E393, Manual Torque Multiplier, Reaction Bar, 3200 ft. lbs Torque, 1 in. Square Drive

Features

• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• Multiplier output accuracy ± 5% of input torque
• Reversible, tighten or loosen bolts
• Angle-of-turn protractor standard on E300 series models
• Most models operator protected by anti-backlash device
• High efficiency planetary gear sets achieve high output torque from low input torque
• Reaction bar or reaction plate type

Specifications

• Length: 19.6 in | 498 mm
• Product Line: Bolting Tools
• Upsell item: E492,E493,E494,E495,PTW3000C
• Sub Types: Reaction Bar Multiplier
• News Feed Product Group: Multipliers, Torque Wrenches
• Type: Torque Wrench
• Height: 6.5 in | 165 mm
• Shipping Weight: 22.85 lbs
• Width: 4.1 in | 104 mm
• Country of Origin: United States
• Weight: 15.2 lbs | 6.9 kgs

Torque Wrench

• Overload Protection: Yes
• Dimension L: 19.6 in | 498 mm
• input Torque: 235 Nm | 173 ft lbs
• Output Male Square Drive Replaceable Shear Drive Model: E393SDK
• Torque Ratio: 18,5 : 1
• Anti Backlash: Yes
• Maximum Torque Output: 3200 ft lbs | 4340 Nm
• Output Male Square Drive S2: 1 in
• Square Drivein: 1

Dimensions

• Dimension D: 103 Mm
• Dimension H: 6.5 In
