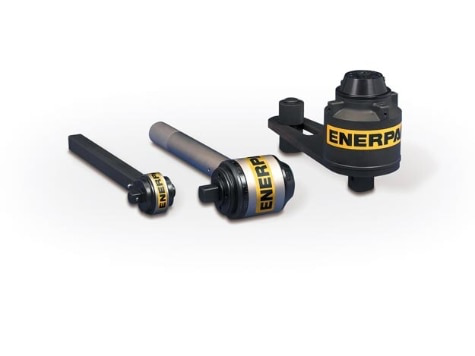

E492, Manual Torque Multiplier, Reaction Plate, 2200 ft. lbs Torque, 1 in. Square Drive

Features

• Multiplier output accuracy ± 5% of input torque
• Reversible, tighten or loosen bolts
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• Most models operator protected by anti-backlash device
• Reaction bar or reaction plate type
• High efficiency planetary gear sets achieve high output torque from low input torque

Torque Wrench

• Dimension L: 14 in | 356 mm
• Dimension L1: 5.5 in | 140 mm
• Torque Ratio: 13,6 : 1
• Output Male Square Drive S2: 1 in
• Dimension R: 1.3 in | 32 mm
• Maximum Torque Output: 2200 ft lbs | 2983 Nm
• Dimension L2: 4.9 in | 124 mm
• input Torque: 219 Nm | 162 ft lbs
• Output Male Square Drive Replaceable Shear Drive Model: E392SDK
• Square Drivein: 1
• Anti Backlash: Yes
• Overload Protection: Yes

Specifications

• Upsell item: E493,E494,E495,PTW3000C
• Country of Origin: United States
• News Feed Product Group: Multipliers, Torque Wrenches
• Height: 5.5 in | 140 mm
• Weight: 17.2 lbs | 7.8 kgs
• Shipping Weight: 21 lbs
• Type: Torque Wrench
• Width: 4.9 in | 124 mm
• Product Line: Bolting Tools
• Sub Types: Reaction Plate Multiplier
• Length: 14 in | 356 mm

Dimensions

• Dimension D: 4.9 In | 124 Mm
• Dimension H: 5.5 In | 140 Mm
