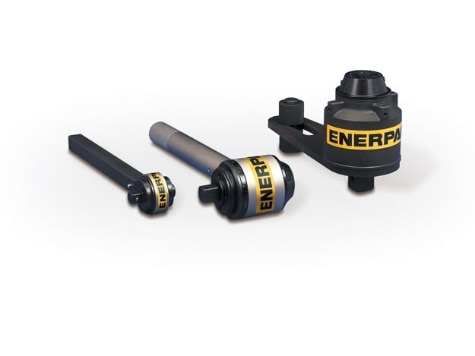

E493, Manual Torque Multiplier, Reaction Plate, 3200 ft. lbs Torque, 1 in. Square Drive

Features

• Most models operator protected by anti-backlash device
• Reversible, tighten or loosen bolts
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• Reaction bar or reaction plate type
• Multiplier output accuracy ± 5% of input torque
• High efficiency planetary gear sets achieve high output torque from low input torque

Torque Wrench

• Overload Protection: Yes
• Square Drivein: 1
• Dimension L1: 5.5 in | 140 mm
• Output Male Square Drive S2: 1 in
• Anti Backlash: Yes
• Dimension L2: 4.9 in | 124 mm
• Dimension L: 14 in | 356 mm
• Torque Ratio: 18,5 : 1
• Maximum Torque Output: 3200 ft lbs | 4339 Nm
• Output Male Square Drive Replaceable Shear Drive Model: E393SDK
• input Torque: 234 Nm | 173 ft lbs
• Dimension R: 1.3 in | 32 mm

Specifications

• Height: 6.4 in | 163 mm
• News Feed Product Group: Multipliers, Torque Wrenches
• Shipping Weight: 23.04 lbs
• Upsell item: E494,E495,PTW3000C
• Width: 4.9 in | 124 mm
• Country of Origin: United States
• Type: Torque Wrench
• Weight: 23.4 lbs | 10.6 kgs
• Length: 14 in | 356 mm
• Sub Types: Reaction Plate Multiplier
• Product Line: Bolting Tools

Dimensions

• Dimension D: 4.9 In | 124 Mm
• Dimension H: 6.4 In | 165 Mm
