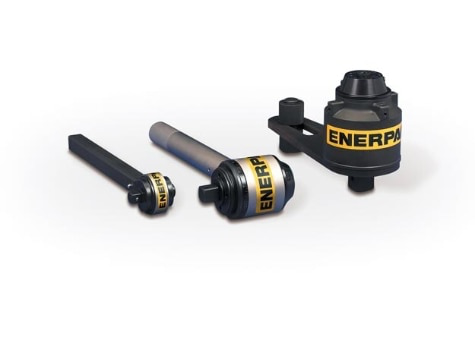

E494, Manual Torque Multiplier, Reaction Plate, 5000 ft. lbs Torque, 1 1/2 in. Square Drive

Features

• High efficiency planetary gear sets achieve high output torque from low input torque
• Most models operator protected by anti-backlash device
• Multiplier output accuracy ± 5% of input torque
• Reaction bar or reaction plate type
• Reversible, tighten or loosen bolts
• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)

Dimensions

• Dimension H: 8.7 In | 222 Mm
• Dimension D: 5.6 In | 143 Mm

Specifications

• Length: 14.9 in | 378 mm
• Width: 5.6 in | 142 mm
• Shipping Weight: 43.3 lbs
• Height: 8.7 in | 221 mm
• Type: Torque Wrench
• Product Line: Bolting Tools
• News Feed Product Group: Multipliers, Torque Wrenches
• Sub Types: Reaction Plate Multiplier
• Country of Origin: United States
• Weight: 34 lbs | 15.4 kgs
• Upsell item: E495,PTW6000C

Torque Wrench

• Dimension L1: 7 in | 178 mm
• Output Male Square Drive Replaceable Shear Drive Model: E494SDK
• Square Drivein: 1.5
• Torque Ratio: 26,5 : 1
• Anti Backlash: Yes
• Dimension L2: 3.5 in | 89 mm
• input Torque: 256 Nm | 189 ft lbs
• Overload Protection: Yes
• Maximum Torque Output: 5000 ft lbs | 6779 Nm
• Dimension L: 14.9 in | 378 mm
• Output Male Square Drive S2: 1.5 in
• Dimension R: 1.7 in | 41 mm
