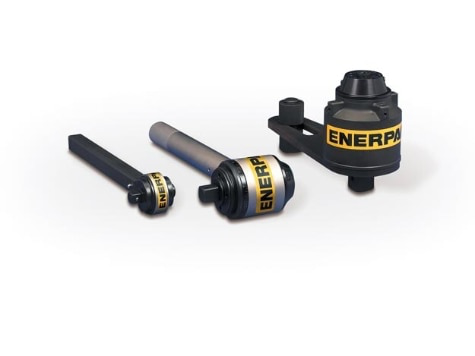

E495, Manual Torque Multiplier, Reaction Plate, 8000 ft. lbs Torque, 1 1/2 in. Square Drive

Features

• E300 and E400 torque multiplier series replaceable shear drives provide overload protection of internal power train (one replacement shear drive is included)
• High efficiency planetary gear sets achieve high output torque from low input torque
• Most models operator protected by anti-backlash device
• Multiplier output accuracy ± 5% of input torque
• Reversible, tighten or loosen bolts
• Reaction bar or reaction plate type

Torque Wrench

• Maximum Torque Output: 8000 ft lbs | 10846 Nm
• Dimension R: 1.9 in | 48 mm
• Square Drivein: 1.5
• Anti Backlash: Yes
• Output Male Square Drive Replaceable Shear Drive Model: E495SDK
• Dimension L1: 7 in | 178 mm
• input Torque: 209 Nm | 154 ft lbs
• Dimension L: 15.2 in | 387 mm
• Overload Protection: Yes
• Dimension L2: 3.5 in | 89 mm
• Output Male Square Drive S2: 1.5 in

Specifications

• Type: Torque Wrench
• Shipping Weight: 74.01 lbs
• Sub Types: Reaction Plate Multiplier
• Height: 10.7 in | 272 mm
• Width: 5.8 in | 147 mm
• Product Line: Bolting Tools
• Upsell item: PTW6000C
• Weight: 50.3 lbs | 22.8 kgs
• News Feed Product Group: Multipliers, Torque Wrenches
• Country of Origin: United States
• Length: 15.2 in | 386 mm

Dimensions

• Dimension H: 10.7 In | 293 Mm
• Dimension D: 5.8 In | 148 Mm
