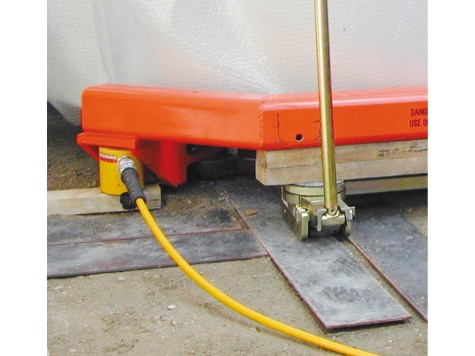

ER80, 80 Ton, Chain Roller Load Skate

Features

• Attachable load leveling plates and swivel turntables for turning corners
• Low rolling-resistance allows for easy load movement
• Rugged and sturdy construction for long life
• Low profile construction for increased stability

Dimensions

• Dimension A: 20.88 In | 530 Mm
• Dimension F: 19 Mm
• Dimension E: 86 Mm
• Dimension B: 7.19 In | 182 Mm
• Dimension H: 0.75 In
• Dimension G: 3.38 In
• Dimension C: 5.75 In | 145 Mm
• Dimension D: 1.97 In | 50 Mm

Specifications

• Sub Types: Load Skate
• Capacity Imperialtons: 80
• Shipping Weight: 145 lbs
• Country of Origin: Germany
• News Feed Product Group: Cylinders and Jacks
• Weight: 134.2 lbs | 60,9 kgs
• Type: Load Skate
• Product Line: Industrial Tools
• Capacity: 711 kN
