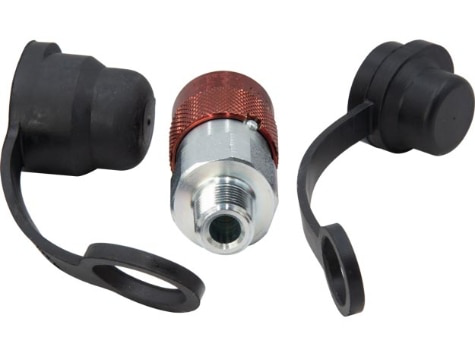

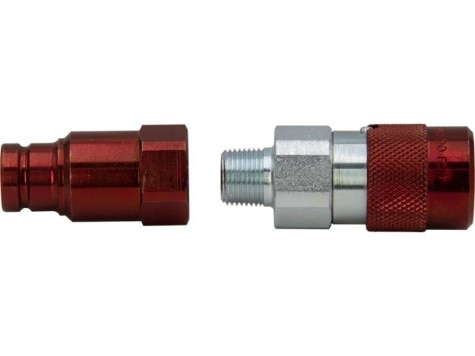

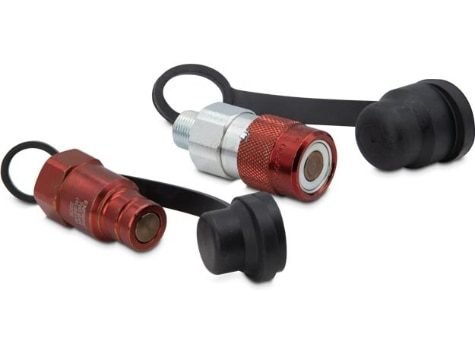

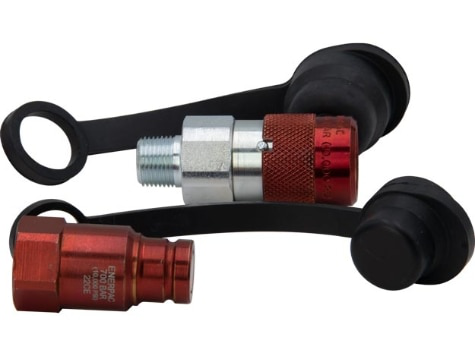

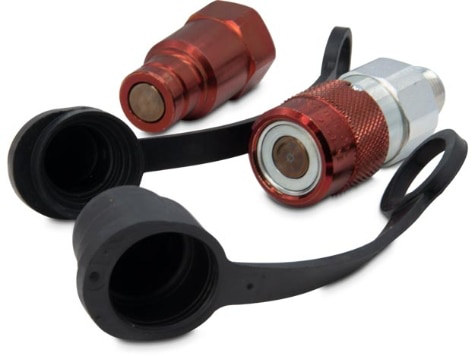

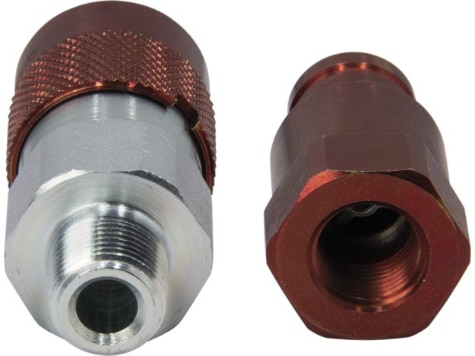

F604, Flush-Face Hydraulic Coupler, Complete Set

Features

• Featuring "Push-to-connect" operation, to guarantee good connection every time
• Flush-face, zero-leak operation for minimal spillage
• Hydraulic Tool Manufacters Association recognized for safety and performance
• 3/8" High Flow "Flush-face" Couplers
• Dimension A is total length when male and female halves are connected.

Dimensions

• Dimension E: 1.23 In | 31 Mm
• Dimension C: 3/8 NPTF In | 3/8 nptf Mm
• Dimension B: 2.85 In | 72 Mm
• Dimension F: 1.06 In | 27 Mm
• Dimension D: 1.23 In | 31 Mm
• Dimension A: 4.36 In | 111 Mm
• Dimension G: 1.12 In | 29 Mm

Specifications

• Type: Coupler
• Country of Origin: United States
• News Feed Product Group: Couplers
• Product Line: Industrial Tools
• Shipping Weight: 1.05 lbs
• Sub Types: Flush-face Coupler

Coupler

• Maximum Flow Capacity: 2500 in³/min | 40 L/min
• Maximum Operating Pressure: 10000
