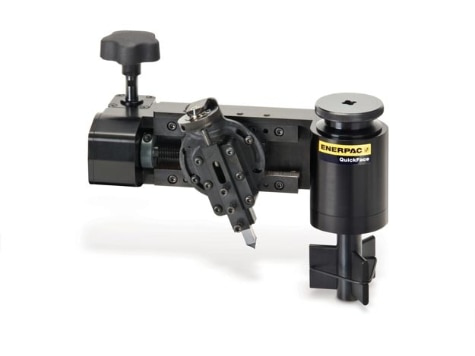

FF120, Mechanical Flange Facing Tool

Features

• Interchangeable collets for ID mounting range from 1-6 inches allowing the user to work on many different flanges with minimal time between set-ups
• Interchangeable lead screws suitable for refacing damaged raised-face (RF) or flat-face (FF) joint flanges
• Accessory Kit FF120FSF is included as standard and provides a fine thread feed screw, 1/2" - 20 UNF, and delivers a Ra of: 60-100 μin (3,2 - 6,3)
• Lightweight and portable - easily transported to remote locations for increased productivity
• Refacing made easy - hand-operated machine tool can be set up anywhere without the need for air, electric or hydraulic power support
• Tool body with expanding collets centers itself providing real concentric operation
• Adjustable cutting range for flange diameters between 1-12 inches [25,4-304,8 mm]

Specifications

• Width: 2.8 in | 71 mm
• Type: Flange Facing Tools
• Weight: 32 lbs | 14.5 kgs
• Country of Origin: United States
• Height: 9.2 in | 234 mm
• Shipping Weight: 43 lbs
• Length: 11 in | 279 mm
• News Feed Product Group: Machining Tools, Flange Maintenance Tools, Torque Wrenches, Bolt Tensioners
• Bundle Product Ids: FF120FSF,FF120FSS,FF120FFL
• Product Line: Bolting Tools
• Sub Types: Flange Facing Tool
