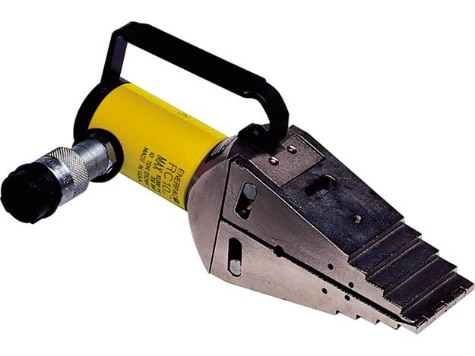

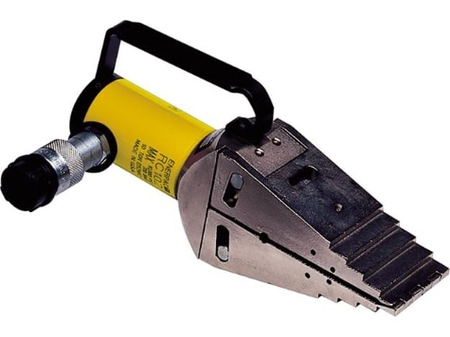

FSH14, 14 Ton, Hydraulic Industrial Spreader, 3.16 in Maximum Spread

Features

• Stepped spreader arm design: each step can spread under full load
• Few moving parts means durability and low maintenance
• Unique interlocking wedge design: no first step bending and risk of slipping out of joint
• Safety block SB1 and ratchet spanner SW22 included
• Integrated wedge concept: friction-free, smooth, parallel wedge movememtn eliminates flange damage and spreading arm failure
• Requires very small access gap of only .24 in. (6mm)

Specifications

• Shipping Weight: 18.4 lbs
• Product Line: Industrial Tools, Bolting Tools
• Sub Types: Hydraulic Spreader
• News Feed Product Group: Flange Maintenance Tools
• Weight: 15.7 lbs | 7,1 kgs
• Capacity Imperialtons: 14
• Type: Spreader
• Country of Origin: United Kingdom

Spreader

• Tip Clearance: 6 mm
• Maximum Spread: 3.16 in | 80 mm
• Oil Capacity: 4.76 in³ | 78 cm³
• Maximum Spread ing Force Ton: 14
• Tip Clearancein: 0.24
• Maximum Spread ing Force: 125 kN
• Spreader Power Source: Hydraulic
