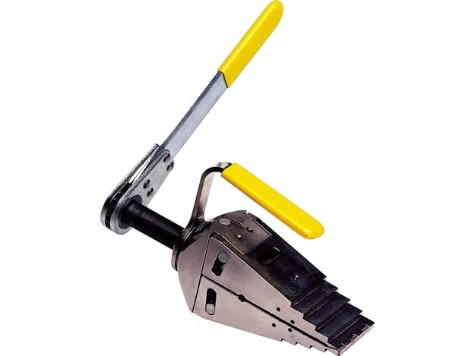

FSM8, 8 Ton, Mechanical Industrial Spreader, 3.16 in Maximum Spread

Features

• Few moving parts means durability and low maintenance
• Requires very small access gap of only .24 in. (6mm)
• Stepped spreader arm design: each step can spread under full load
• Integrated wedge concept: friction-free, smooth, parallel wedge movememtn eliminates flange damage and spreading arm failure
• Safety block SB1 and ratchet spanner SW22 included
• Unique interlocking wedge design: no first step bending and risk of slipping out of joint

Spreader

• Tip Clearance: 6 mm
• Maximum Spread ing Force Ton: 8
• Tip Clearancein: 0.24
• Maximum Spread: 3.16 in | 80 mm
• Maximum Spread ing Force: 72 kN
• Spreader Power Source: Mechanical

Specifications

• Width: 2.6 in | 66 mm
• Bundle Product Ids: SW22
• Country of Origin: United Kingdom
• Type: Spreader
• Length: 11.31 in | 287 mm
• Sub Types: Mechanical Spreader
• Weight: 14.3 lbs | 6.5 kgs
• Capacity Imperialtons: 8
• News Feed Product Group: Flange Maintenance Tools
• Shipping Weight: 16.65 lbs
• Product Line: Industrial Tools, Bolting Tools
