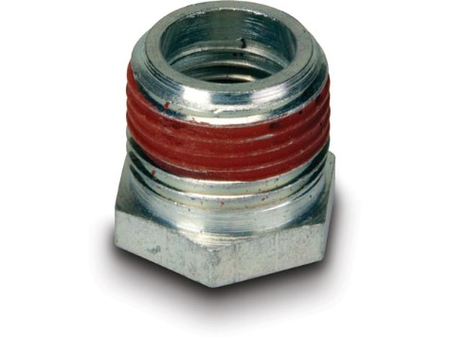

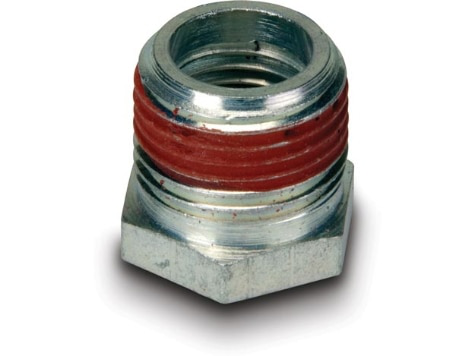

FZ1630, High Pressure Fitting, Reducer, 10,000 psi Maximum Operating Pressure, Connection from 1/4" NPTF Female to 3/8" NPTF Male

Fitting are used to connect all cylinders, components, power sources, tubes, gauges and hoses in a hydraulic system. Enerpac fittings provide flexible, safe and leak-free connections.

Specifications

• Shipping Weight: 0.04 lbs
• Product Line: Industrial Tools, Workholding Tools
• News Feed Product Group: Fittings, Pumps
• Type: Fitting
• Country of Origin: China
• Sub Types: Reducer

Dimensions

• Dimension B: 3/4 In | 19 Mm
• Dimension C: 1/4 - 18 NPT In | 1/4-18 NPTF Mm
• Dimension A: 0.86 In | 19 Mm
• Dimension D: 3/8 - 18 NPT In | 3/8-18 NPTF Mm

Fitting

• Connection From: 1/4" NPTF Female
• Connection To: 3/8" NPTF Male
