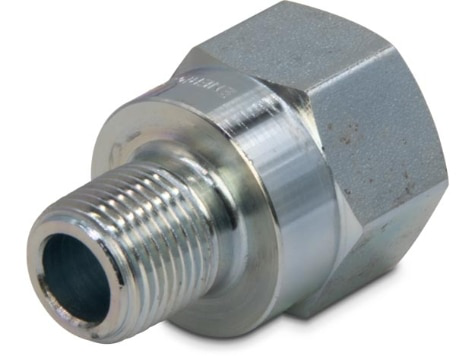

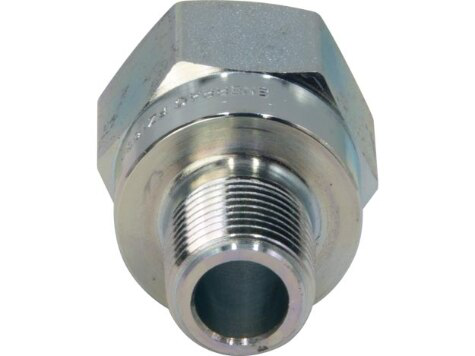

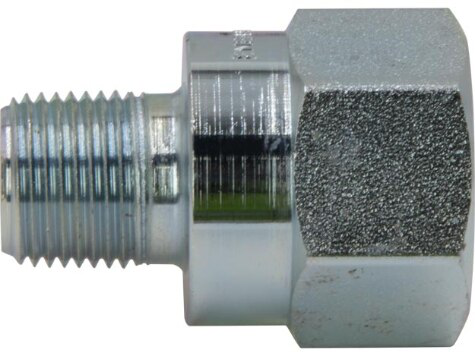

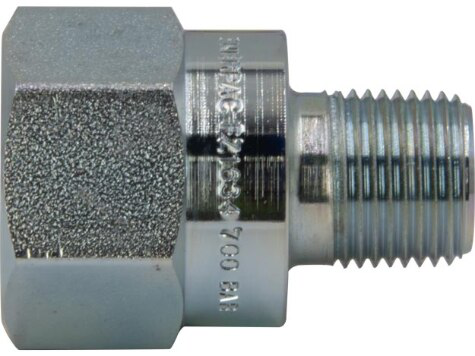

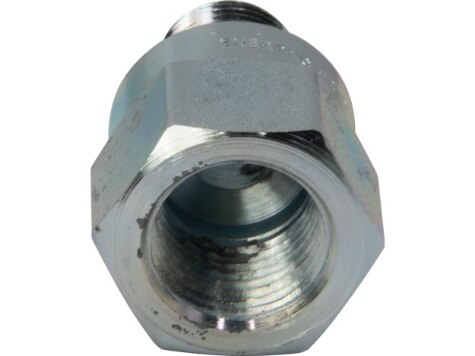

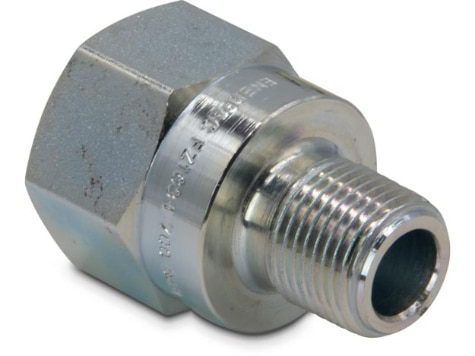

FZ1634, High Pressure Fitting, Adapter, 10,000 psi Maximum Operating Pressure, Connection from 1/2" NPTF Female to 3/8" NPTF Male

Fitting are used to connect all cylinders, components, power sources, tubes, gauges and hoses in a hydraulic system. Enerpac fittings provide flexible, safe and leak-free connections.

Fitting

• Connection To: 3/8" NPTF Male
• Connection From: 1/2" NPTF Female

Dimensions

• Dimension C: 3/8 - 18 NPT In | 3/8-18 NPT Mm
• Dimension A: 1.69 In | 43 Mm
• Dimension D: 1/2 - 14 NPT In | 1/2-14 NPT Mm
• Dimension B: 1 - 1/8 In | 29 Mm

Specifications

• Country of Origin: United States
• Type: Fitting
• Product Line: Industrial Tools, Workholding Tools
• Shipping Weight: 0.22 lbs
• Sub Types: Adapter
• News Feed Product Group: Fittings, Pumps
