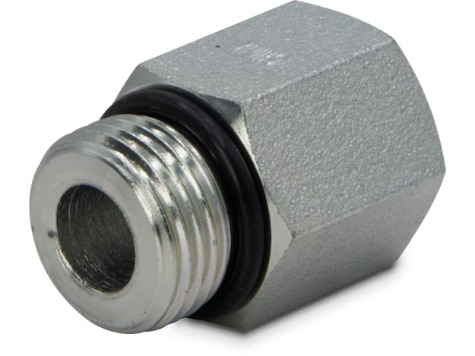

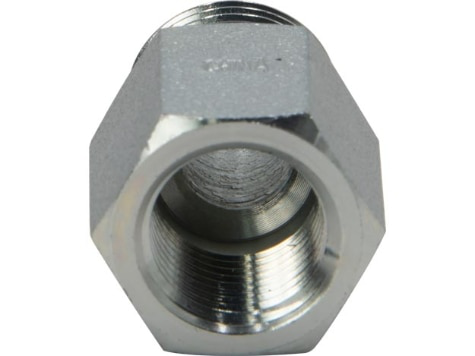

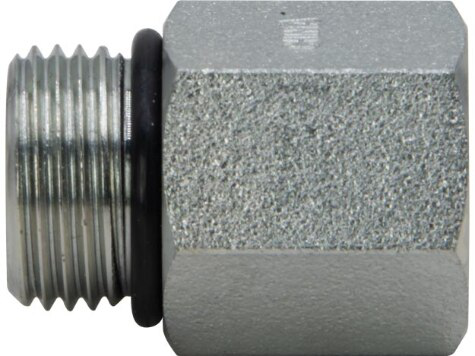

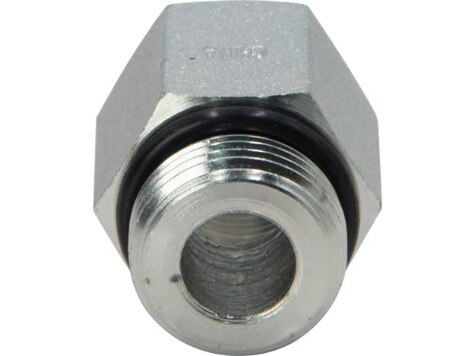

FZ2069, High Pressure Fitting, Adapter, 5,000 psi Maximum Operating Pressure, Connection from SAE #8 Male to 3/8" NPT Female
Fitting are used to connect all cylinders, components, power sources, tubes, gauges and hoses in a hydraulic system. Enerpac fittings provide flexible, safe and leak-free connections.
Specifications
- Product Line: Workholding Tools
- Country of Origin: China
- Shipping Weight: 0.15 lbs
- Sub Types: Adapter
- Type: Fitting
- News Feed Product Group: Fittings, Pumps
Fitting
- Connection From: SAE #8 Male
- Connection To: 3/8" NPT Female
Dimensions
- Dimension A: 1.28 In | 33 Mm
- Dimension C: 3/4 - 16 In | 3/4-16 Mm
- Dimension B: 7/8 In | 22 Mm
- Dimension D: 3/8- 18 NPT In | 3/8-18 NPT Mm
Regular price
$34.49
Ask An Expert
- Type Hydraulic Clamps & Work Supports
- Vendor Enerpac
- SKU EPFZ2069
