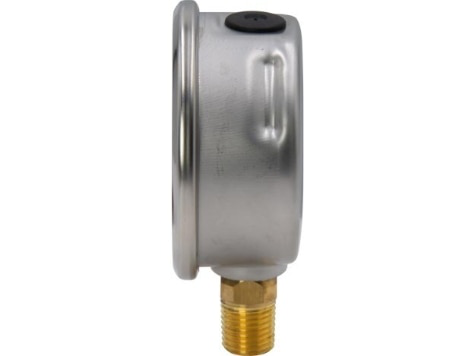

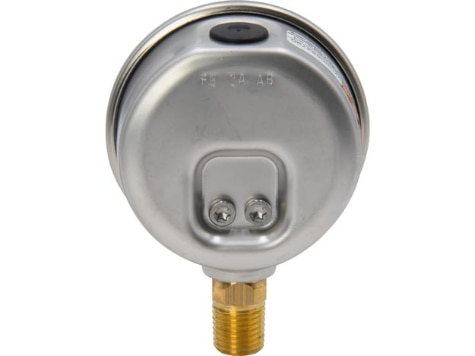

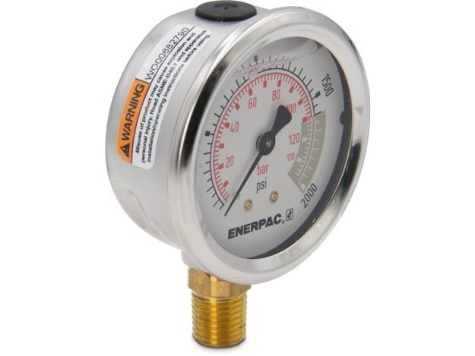

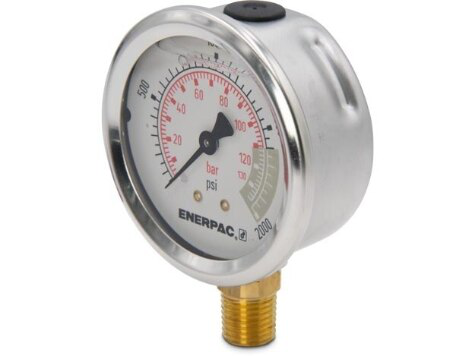

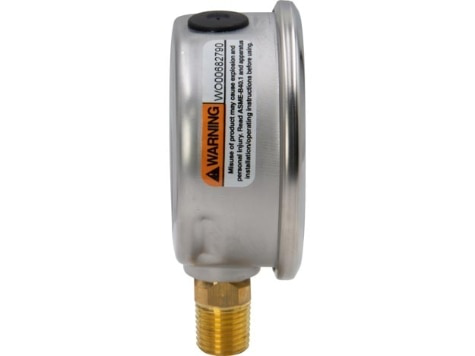

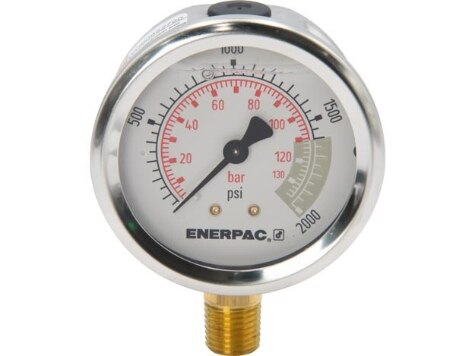

G2515L, Hydraulic Pressure Gauge, 2.50 in. Face, Lower Mount, Glycerine Filled, 2,000 maximum psi

Features

• Includes safety blow-out disk and pressure equalizing membrane
• Calibrated in dual scale reading in psi and bar
• Gauge snubbers or needle valves recommended for high cycle applications
• All pressure sensing parts sealed and dampened by glycerine for long life

Dimensions

• Dimension B: 1.46 In | 37 Mm
• Dimension G: 1/4 NPTF Mm
• Dimension A: 2.5 In | 63 Mm
• Dimension C: 1/4 nptf In
• Dimension D: 3.31 In | 84 Mm

Gauge

• Threadin: 1/4 NPTF
• Major Graduationbar: 10
• Style: Glycerine Filled
• Minor Graduationpsi: 50
• Major Graduationpsi: 500
• Face Diameter: 63 mm
• Mount: Lower Mount
• Accuracy Percentageof Full Scale: 1.5
• Minor Graduationbar: 2

Specifications

• Sub Types: Pressure Gauge
• Product Line: Industrial Tools, Workholding Tools
• Country of Origin: United States
• News Feed Product Group: Gauges, Pumps
• Shipping Weight: 0.45 lbs
• Type: Gauge
