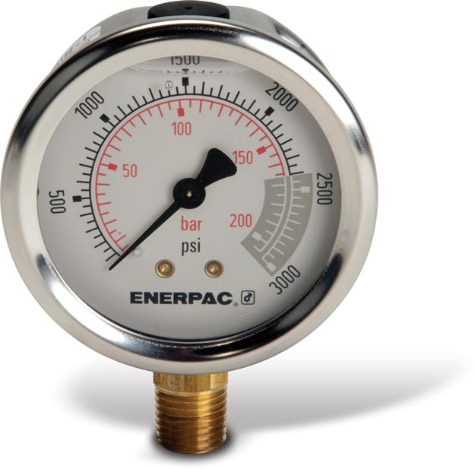

G2516SL, Hydraulic Pressure Gauge, 2.5 in. Face, Lower Mount, Glycerine Filled, 3,000 maximum psi

Features

• Includes safety blow-out disk and pressure equalizing membrane to prevent overpressurization
• Copper alloy, coiled safety Bourdon tube for 1000 psi and higher
• All pressure sensing parts sealed and dampened by glycerine for long life
• Dual psi and bar scale readings, 1.5 inch gauge face
• ± 1.5% accuracy of full scale

Gauge

• Mount: Lower Mount
• Major Graduationpsi: 500
• Major Graduationbar: 50
• Style: Glycerine Filled
• Minor Graduationpsi: 50
• Minor Graduationbar: 5

Specifications

• News Feed Product Group: Gauges, Pumps
• Product Line: Workholding Tools
• Type: Gauge
• Sub Types: Pressure Gauge
• Shipping Weight: 0.8 lbs
• Country of Origin: United States

Dimensions

• Dimension D: 2.5 In | 63 Mm
• Dimension G: SAE#4 In | SAE#4 Mm
• Dimension B: 1.23 In | 31 Mm
• Dimension A: 3.66 In | 93 Mm
