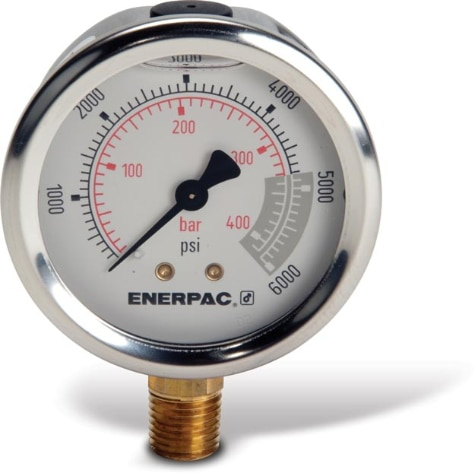

G2517L, Hydraulic Pressure Gauge, 2.50 in. Face, Lower Mount, Glycerine Filled, 6,000 maximum psi

Features

• Includes safety blow-out disk and pressure equalizing membrane
• Gauge snubbers or needle valves recommended for high cycle applications
• All pressure sensing parts sealed and dampened by glycerine for long life
• Calibrated in dual scale reading in psi and bar

Gauge

• Mount: Lower Mount
• Minor Graduationbar: 10
• Minor Graduationpsi: 100
• Major Graduationpsi: 1000
• Major Graduationbar: 100
• Threadin: 1/4 NPTF
• Style: Glycerine Filled
• Accuracy Percentageof Full Scale: 1.5
• Face Diameter: 63 mm

Specifications

• Type: Gauge
• Shipping Weight: 0.4 lbs
• Country of Origin: United States
• Product Line: Industrial Tools, Workholding Tools
• News Feed Product Group: Gauges, Pumps
• Sub Types: Pressure Gauge

Dimensions

• Dimension A: 2.5 In | 63 Mm
• Dimension C: 1/4 nptf In
• Dimension D: 3.31 In | 84 Mm
• Dimension B: 1.46 In | 37 Mm
• Dimension G: 1/4 NPTF Mm
