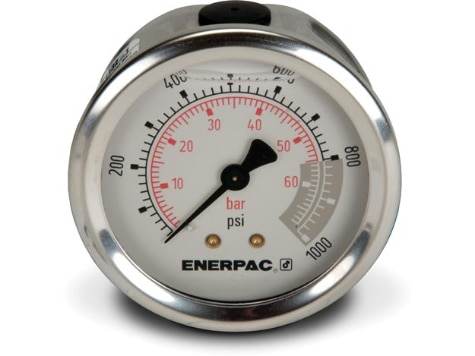

G2531SR, Hydraulic Pressure Gauge, 2.5 in. Face, Rear Mount, Glycerine Filled, 1,000 maximum psi

Features

• ± 1.5% accuracy of full scale
• All pressure sensing parts sealed and dampened by glycerine for long life
• Includes safety blow-out disk and pressure equalizing membrane to prevent overpressurization
• Copper alloy, coiled safety Bourdon tube for 1000 psi and higher
• Dual psi and bar scale readings, 1.5 inch gauge face

Specifications

• Type: Gauge
• Country of Origin: United States
• News Feed Product Group: Gauges, Pumps
• Sub Types: Pressure Gauge
• Shipping Weight: 0.55 lbs
• Product Line: Workholding Tools

Gauge

• Mount: Rear Mount
• Face Diameter: 63 mm
• Major Graduationbar: 10
• Accuracy Percentageof Full Scale: 1.5
• Major Graduationpsi: 100
• Style: Glycerine Filled
• Minor Graduationbar: 1
• Threadin: SAE #4
• Minor Graduationpsi: 20

Dimensions

• Dimension G: SAE#4 In | SAE#4 Mm
• Dimension B: 1.23 In | 31 Mm
• Dimension D: 2.5 In | 63 Mm
• Dimension A: 2.46 In | 62 Mm
