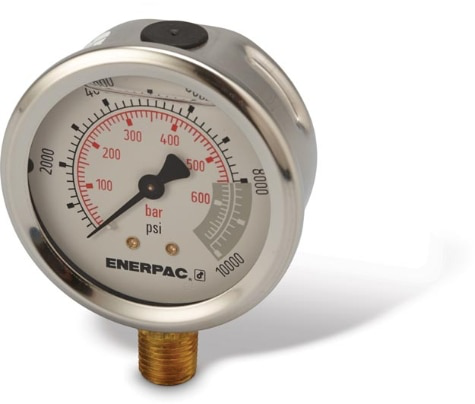

G2535SL, Hydraulic Pressure Gauge, 2.5 in. Face, Lower Mount, Glycerine Filled, 10,000 maximum psi

Features

• All pressure sensing parts sealed and dampened by glycerine for long life
• Copper alloy, coiled safety Bourdon tube for 1000 psi and higher
• Dual psi and bar scale readings, 1.5 inch gauge face
• Includes safety blow-out disk and pressure equalizing membrane to prevent overpressurization
• ± 1.5% accuracy of full scale

Gauge

• Minor Graduationbar: 10
• Major Graduationpsi: 2000
• Mount: Lower Mount
• Style: Glycerine Filled
• Minor Graduationpsi: 200
• Major Graduationbar: 100

Dimensions

• Dimension A: 3.66 In | 93 Mm
• Dimension D: 2.5 In | 63 Mm
• Dimension B: 1.23 In | 31 Mm
• Dimension G: SAE#4 In | SAE#4 Mm

Specifications

• Product Line: Workholding Tools
• News Feed Product Group: Gauges, Pumps
• Sub Types: Pressure Gauge
• Country of Origin: United States
• Type: Gauge
• Shipping Weight: 0.8 lbs
