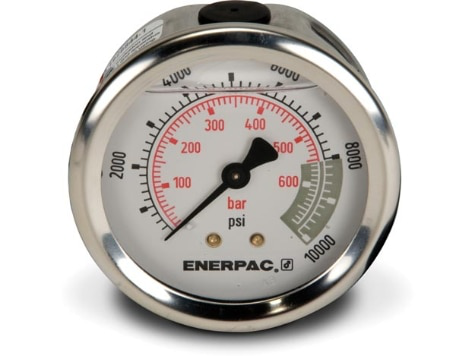

G2537R, Hydraulic Pressure Gauge, 2.50 in. Face, Center Rear Mount, Glycerine Filled, 10,000 maximum psi

Features

• All pressure sensing parts sealed and dampened by glycerine for long life
• Includes safety blow-out disk and pressure equalizing membrane
• Calibrated in dual scale reading in psi and bar
• Gauge snubbers or needle valves recommended for high cycle applications

Specifications

• Country of Origin: China
• Type: Gauge
• Shipping Weight: 0.55 lbs
• News Feed Product Group: Gauges, Pumps
• Product Line: Industrial Tools, Workholding Tools
• Sub Types: Pressure Gauge

Dimensions

• Dimension C: 1/4 nptf In
• Dimension E: 2.48 In
• Dimension B: 1.46 In | 37 Mm
• Dimension D: 63 Mm
• Dimension A: 2.5 In | 63 Mm
• Dimension G: 1/4 NPTF Mm

Gauge

• Mount: Center Rear
• Face Diameter: 63 mm
• Accuracy Percentageof Full Scale: 1.5
• Minor Graduationpsi: 200
• Minor Graduationbar: 10
• Major Graduationbar: 100
• Major Graduationpsi: 2000
• Threadin: 1/4 NPTF
• Style: Glycerine Filled
