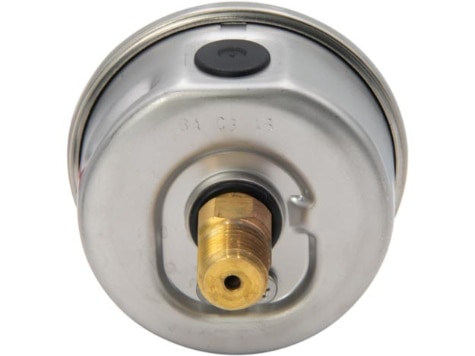

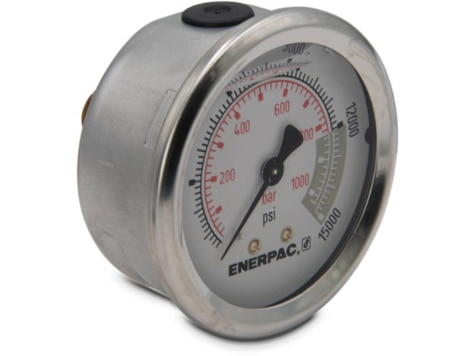

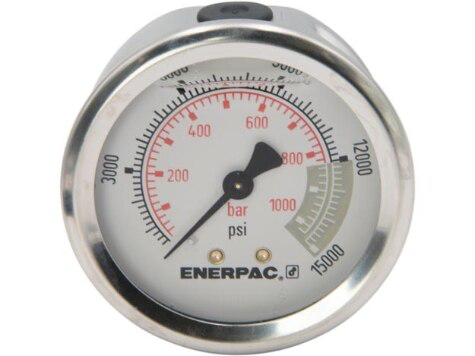

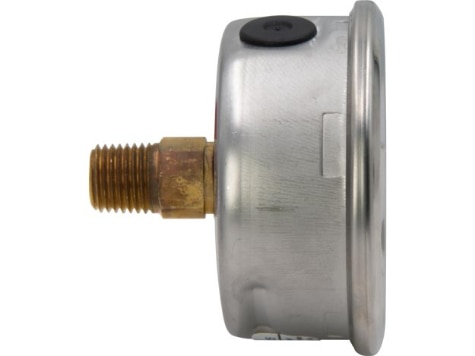

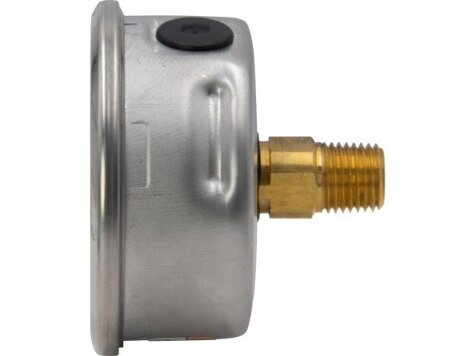

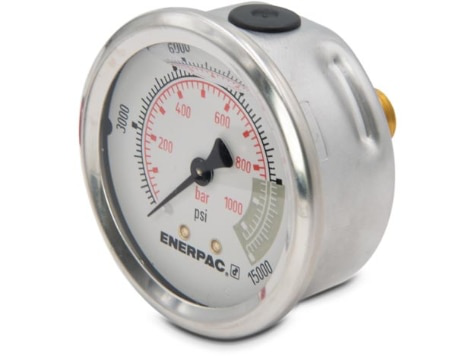

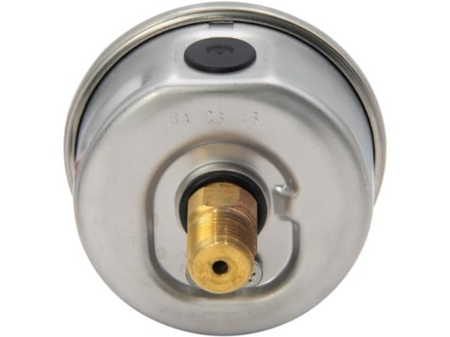

G2538R, Hydraulic Pressure Gauge, 2.50 in. Face, Center Rear Mount, Glycerine Filled, 15,000 maximum psi

Features

• Gauge snubbers or needle valves recommended for high cycle applications
• Calibrated in dual scale reading in psi and bar
• All pressure sensing parts sealed and dampened by glycerine for long life
• Includes safety blow-out disk and pressure equalizing membrane

Gauge

• Style: Glycerine Filled
• Accuracy Percentageof Full Scale: 1.5
• Minor Graduationpsi: 200
• Major Graduationpsi: 3000
• Major Graduationbar: 100
• Threadin: 1/4 NPTF
• Face Diameter: 63 mm
• Minor Graduationbar: 20
• Mount: Center Rear

Dimensions

• Dimension C: 1/4 nptf In
• Dimension A: 2.5 In | 63 Mm
• Dimension D: 63 Mm
• Dimension E: 2.48 In
• Dimension G: 1/4 NPTF Mm
• Dimension B: 1.46 In | 37 Mm

Specifications

• Country of Origin: United States
• Shipping Weight: 0.55 lbs
• Product Line: Industrial Tools, Workholding Tools
• Sub Types: Pressure Gauge
• Type: Gauge
• News Feed Product Group: Gauges, Pumps
