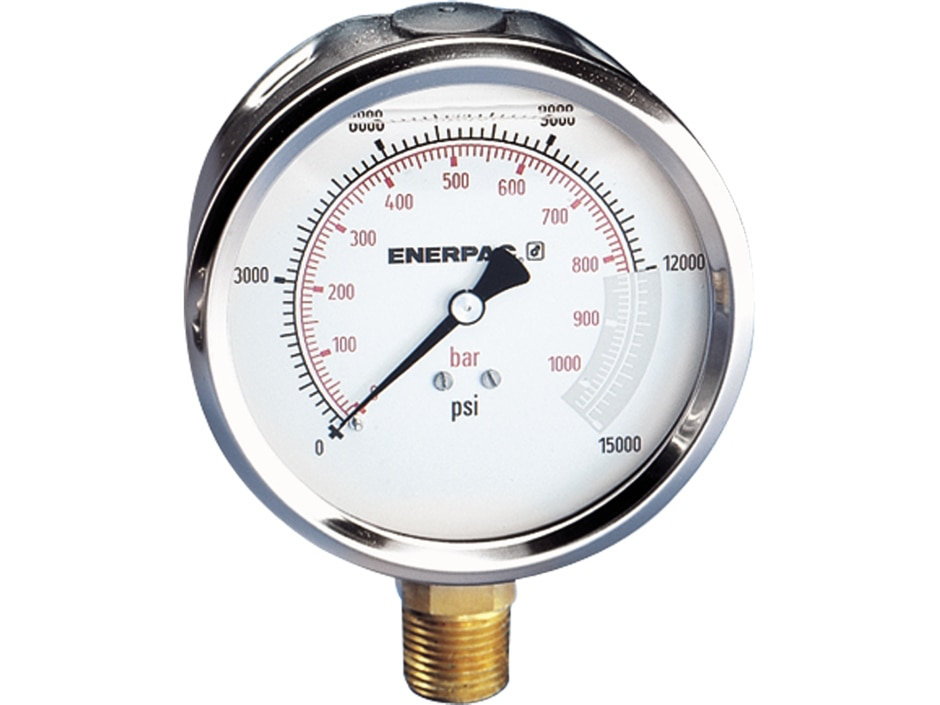

G4040L, Hydraulic Pressure Gauge, 4.0 in. Face, Lower Mount, Glycerine Filled, 15,000 maximum psi

Features

• Gauge snubbers or needle valves recommended for high cycle applications
• Includes safety blow-out disk and pressure equalizing membrane
• Calibrated in dual scale reading in psi and bar
• All pressure sensing parts sealed and dampened by glycerine for long life

Specifications

• Maximum Operating Pressure (psi): 15,000
• Major Graduation (psi): 3000
• Accuracy Percentage of Full Scale: 1
• Thread (in): 1/2 NPTF
• Series: G
• Mount: Lower Mount
• Minor Graduation (psi): 200
• Style: Glycerine Filled

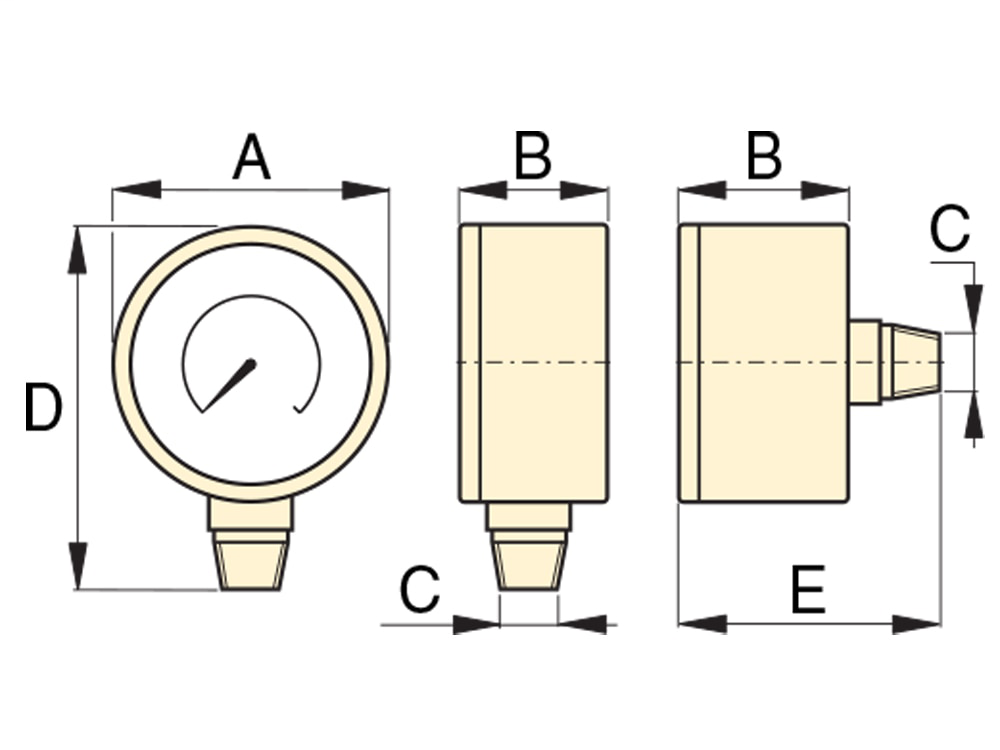

Dimensions

• Dimension B (in): 1.93
• Dimension D (in): 5.38
• Dimension C (in): 1/2" nptf
• Dimension A (in): 4
