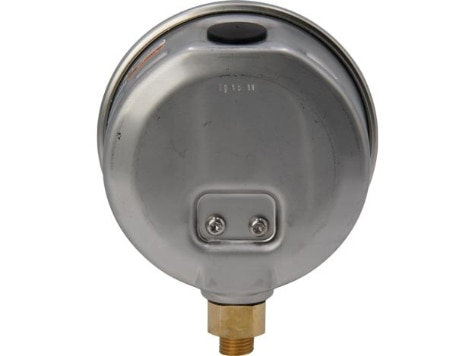

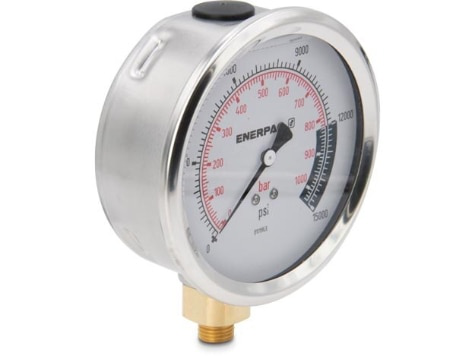

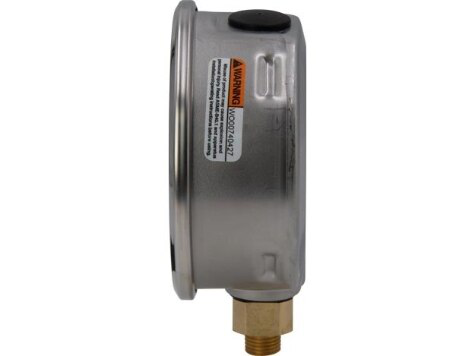

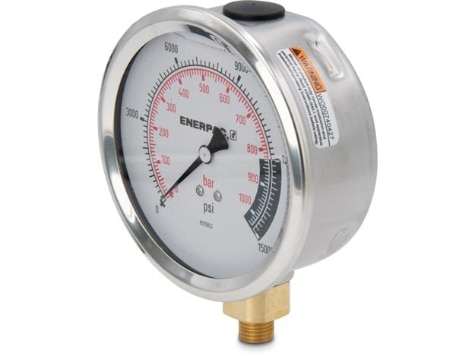

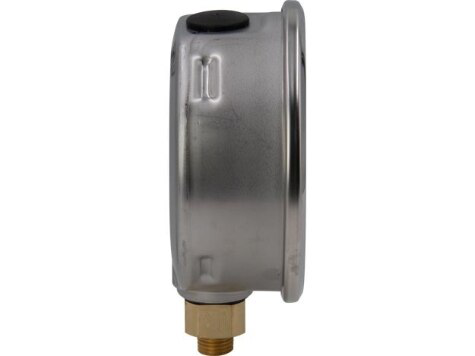

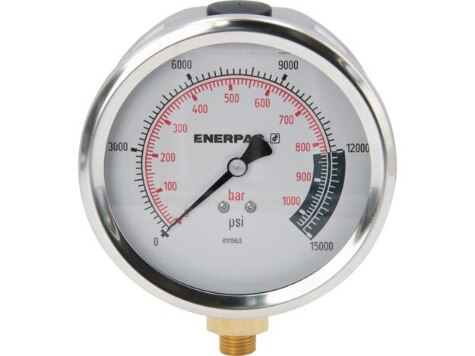

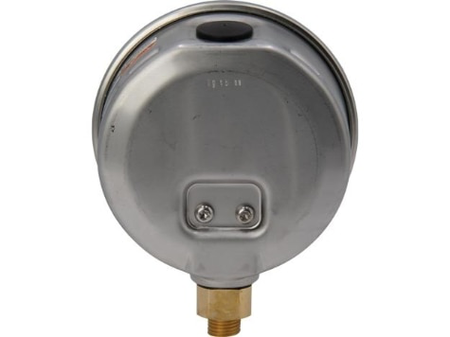

G4089L, Hydraulic Pressure Gauge, 4.0 in. Face, Lower Mount, Glycerine Filled, 15,000 maximum psi

Features

• All pressure sensing parts sealed and dampened by glycerine for long life
• Includes safety blow-out disk and pressure equalizing membrane
• Calibrated in dual scale reading in psi and bar
• Gauge snubbers or needle valves recommended for high cycle applications

Gauge

• Minor Graduationbar: 20
• Minor Graduationpsi: 200
• Major Graduationpsi: 3000
• Accuracy Percentageof Full Scale: 1
• Mount: Lower Mount
• Style: Glycerine Filled
• Threadin: 1/4 NPTF
• Face Diameter: 100 mm
• Major Graduationbar: 100

Dimensions

• Dimension C: 1/4 nptf In | 1/4 NPTF Mm
• Dimension B: 1.15 In | 29 Mm
• Dimension A: 4 In | 100 Mm
• Dimension D: 4.8 In | 121 Mm

Specifications

• Shipping Weight: 1.7 lbs
• Country of Origin: China
• Sub Types: Pressure Gauge
• Product Line: Industrial Tools
• Type: Gauge
• News Feed Product Group: Gauges, Pumps
