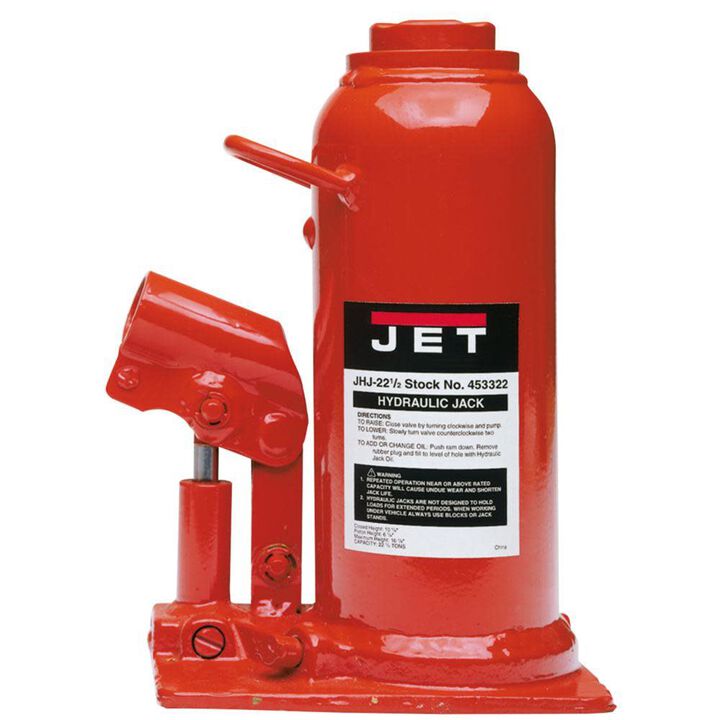

JHJ-22-1/2, 22-1/2-Ton Hydraulic Bottle Jack

JET®JHJ Series Hydraulic Bottle Jacks have capacities from 2 to 100 tons, and are available in standard and low profile heights. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility. JET JHJ Series Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.

Features

• Pump handle included
• Complies with ANSI/ASME B30.1 and PALD-1 Standard
• Precision machined and polished cylinders provide non-abrasive, leak-free,
• Lifting, pushing, spreading, bending, pressing or straightening capabilities
• Precision machined and polished cylinders provide non-abrasive, leak-free, durable performance
• Upright, horizontal or angled operating positions increase versatility
• Hydraulic system is protected from damage by internal by-pass mechanism
• Industrial-duty construction permits use in extreme climates
• Heavy-duty bases are electrically welded providing a stable platform
• Operating temperature range from -4°F to 158°F

Specifications

• Load Capacity (Tons): 22-1/2
• Gross Weight: 29.35
• Piston Height (In.): 6-1/4
• Base Dimensions (L x W) (In.): 7-1/8 x 5-1/2
• Stock Number: JT9-453322
• Piston Lift (In.): 6-1/4
• Net weight: 29.35
• Model Number: JHJ-22 1/2
• Minimum Height (In.): 10-5/8
• Warranty: 2 Year
• Maximum Height (In.): 16-7/8
• Prop 65: Cancer
