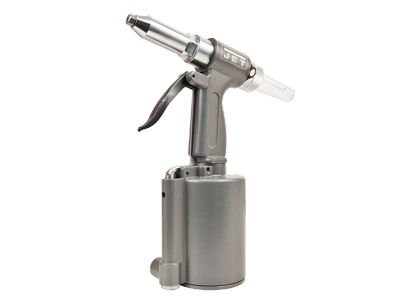

JAT-920 Riveter

The JAT-920 is a very versatile Riveter that is excellent for mild steel up to 3/16" in depth. Built with industrial usage in mind, this tool will handle the requirements of high-production shops.

Features

• Maximum pulling load of 1,940 pounds for increased versatility
• Quick-release air valve increases safety
• Includes 3/16", 5/32", 1/8" and 3/32" nose pieces
• 3/16" mild steel capacity
• Heavy-duty construction for continuous production

Specifications

• Net weight: 3.47
• Warranty: 2 Year
• Model Number: JAT-920
• Vibration Value (m/s²): 1.0100
• Air Pressure (PSI): 78-85
• Min. Air Hose (ID): 3/8
• Sound Pressure (db) (A): 77.0000
• Gross Weight: 3.82
• Stock Number: JT9-505921
• Prop 65: Cancer and Reproductive Harm
• Sound Power (db) (A): 88.0000
• Metal Capacity (Gauge): 18.0000
• Overall Length (In.): 11-1/2
• Air Inlet (NPT): 1/4
• Traction Power (Lbs.): 1940
• Stroke Length (In.): 9/16
• Rivet Capacity (In.): 3/16
• Air Consumption (CFM): 4.0000
