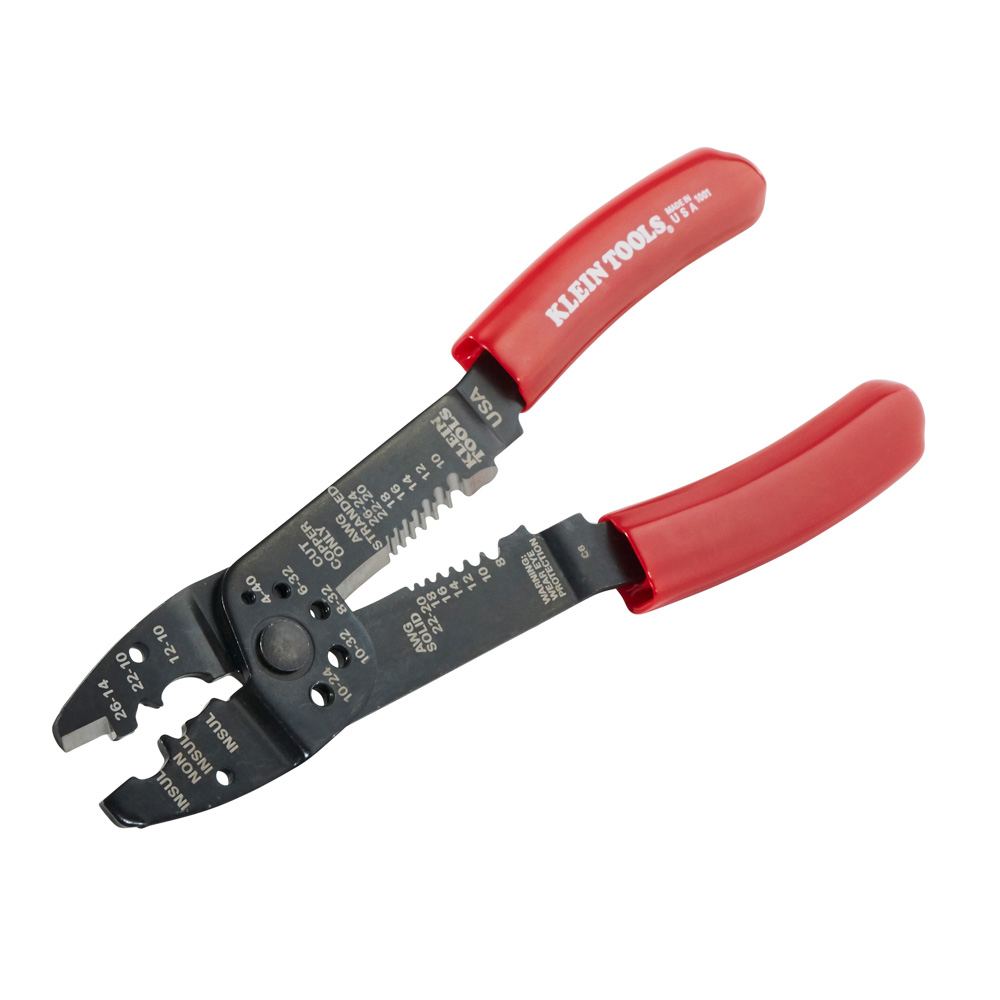

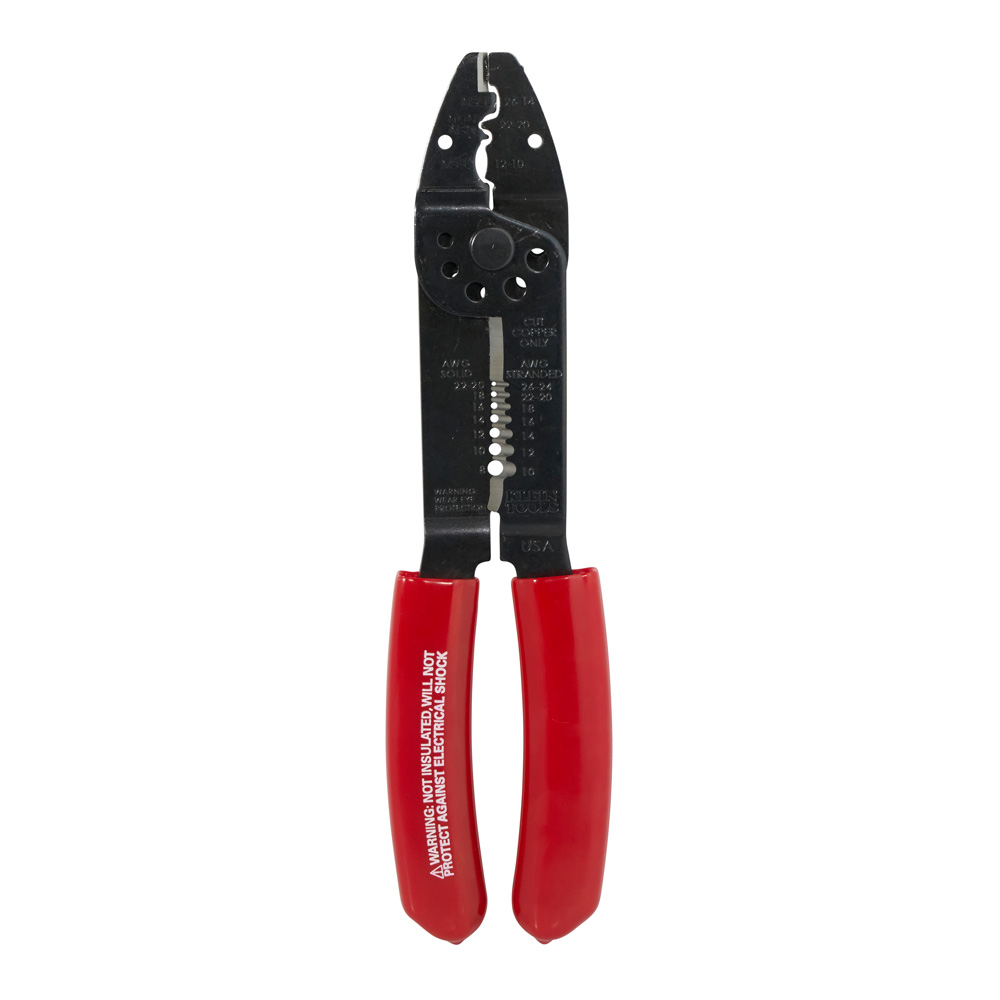

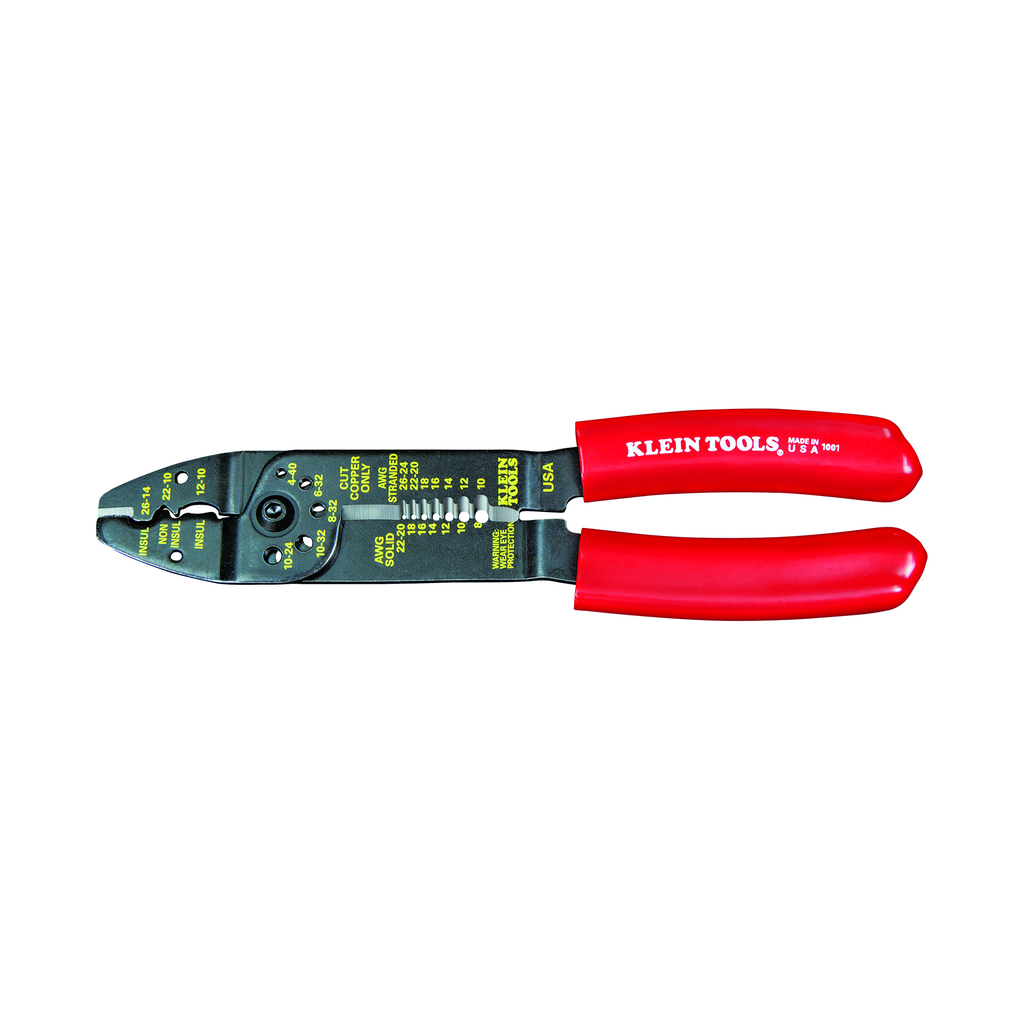

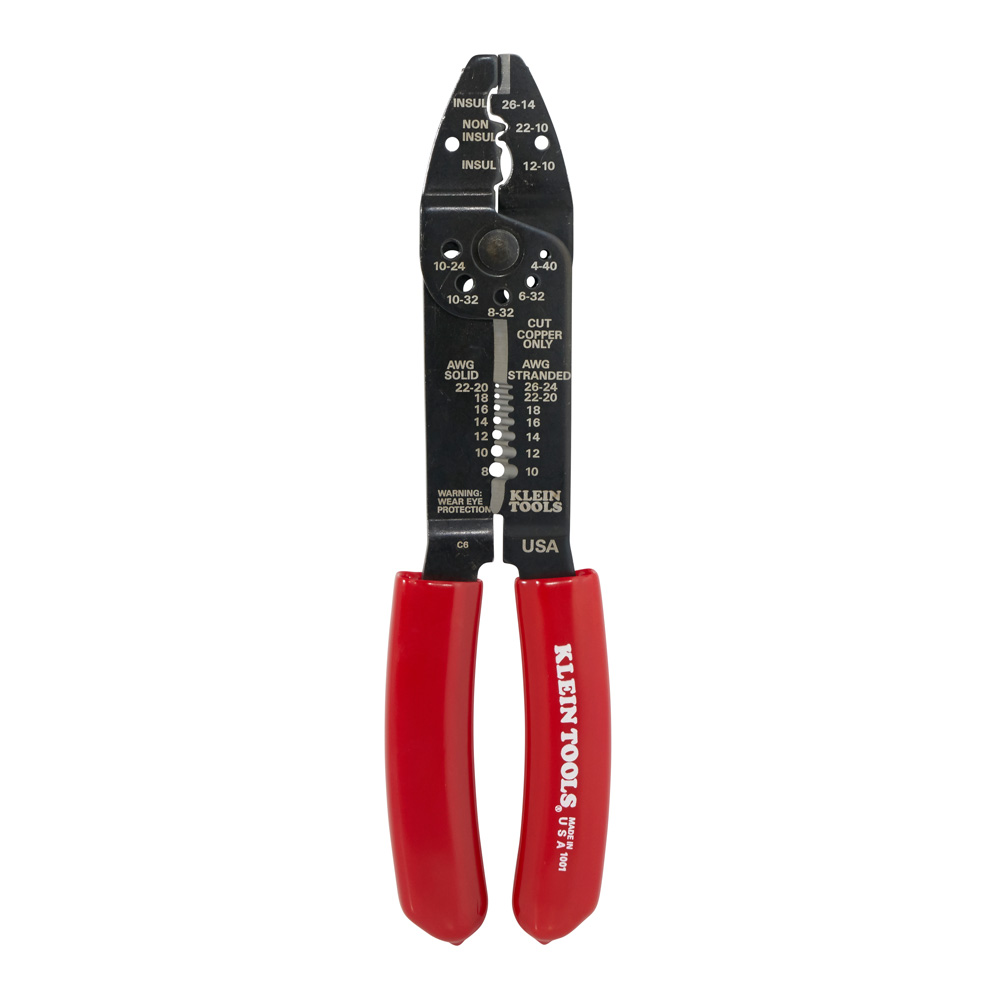

Multi Tool, Stripper, Crimper, Wire Cutter, 8-22 AWG

The Klein Tools Wire Stripper Multi-Tool cuts, crimps, and strips solid and stranded wire and shears bolts. Two cutting blades for 8-22 AWG solid and 10-26 AWG stranded wire. The crimping function handles 7-8 mm insulated and non-insulated terminals, lugs, and splices.

Warnings

• Never use on or near live electrical circuits.
• Always wear approved eye protection.
• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Features

• Full-sized, plastic-covered cushioned handles
• Crimping dies color-coded for easy identification
• Overall length: 8.5-Inch
• Pivot nut adjusts tension
• Made in USA

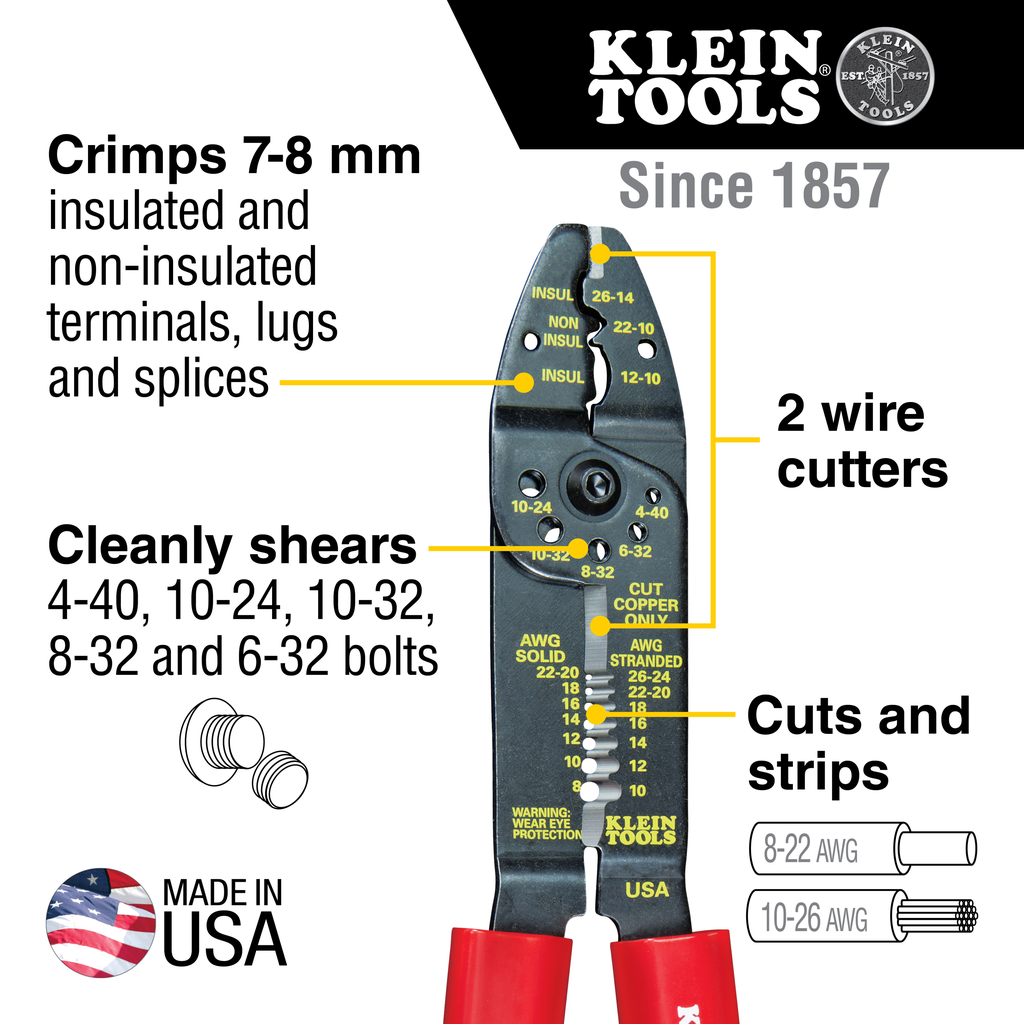

• Multi Tool crimps 7 - 8mm insulated and non-insulated terminals, lugs and splices

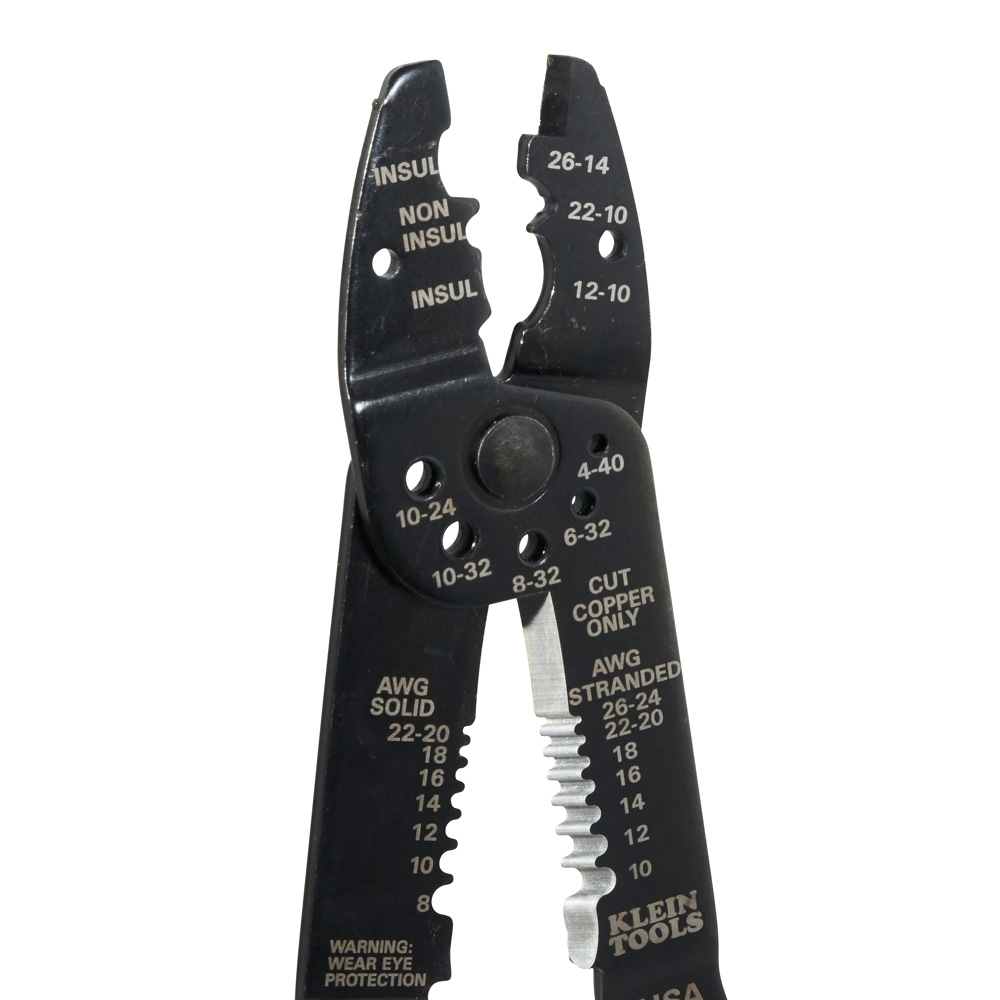

• Wire Strippers with 2 wire cutters; one at tip, the other halfway back near stripping holes double the utility of this tool
• Cleanly shears 4-40, 10-24, 10-32, 8-32 and 6-32 bolts; cuts and strips 8-22 AWG solid and 10-26 AWG stranded wire

Specifications

• Depth: 8.5000 in
• Screw Shearing: 4-40, 6-32, 8-32, 10-24, 10-32
• Height: 0.6300 in
• Handle Color: Red
• Overall Length (cm): 21.6
• Overall Length (Inch): 8.5
• Crimping Capacity: 10-22 AWG
• Application: Cuts and Strips 8-22 AWG Solid and 10-26 AWG Stranded Wire; Shears Bolts; Crimps 7-8 mm Terminals, Lugs and Splices
• Strips and Cuts: 8-22 AWG Solid; 10-26 AWG Stranded
• Weight (oz): 7.5
• Width: 4.3500 in
• Weight: 0.4700 lbs
• Weight (g): 213
