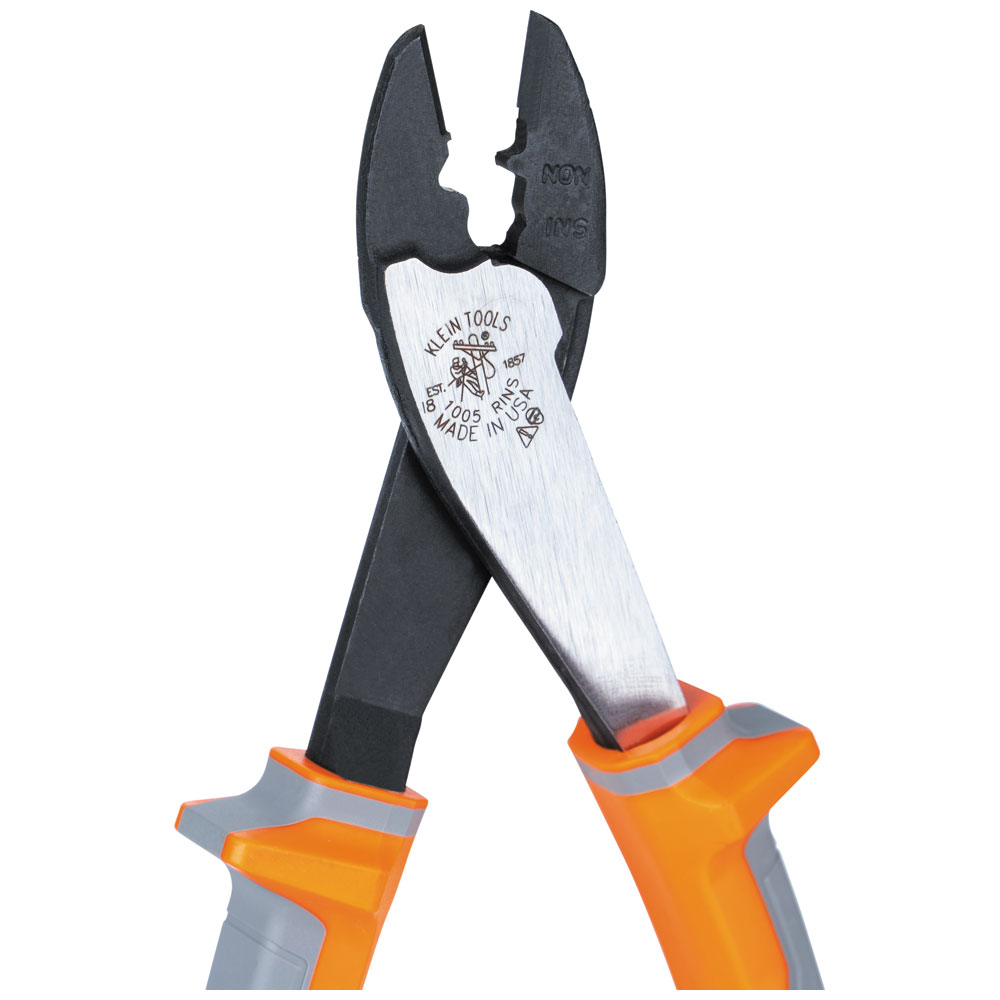

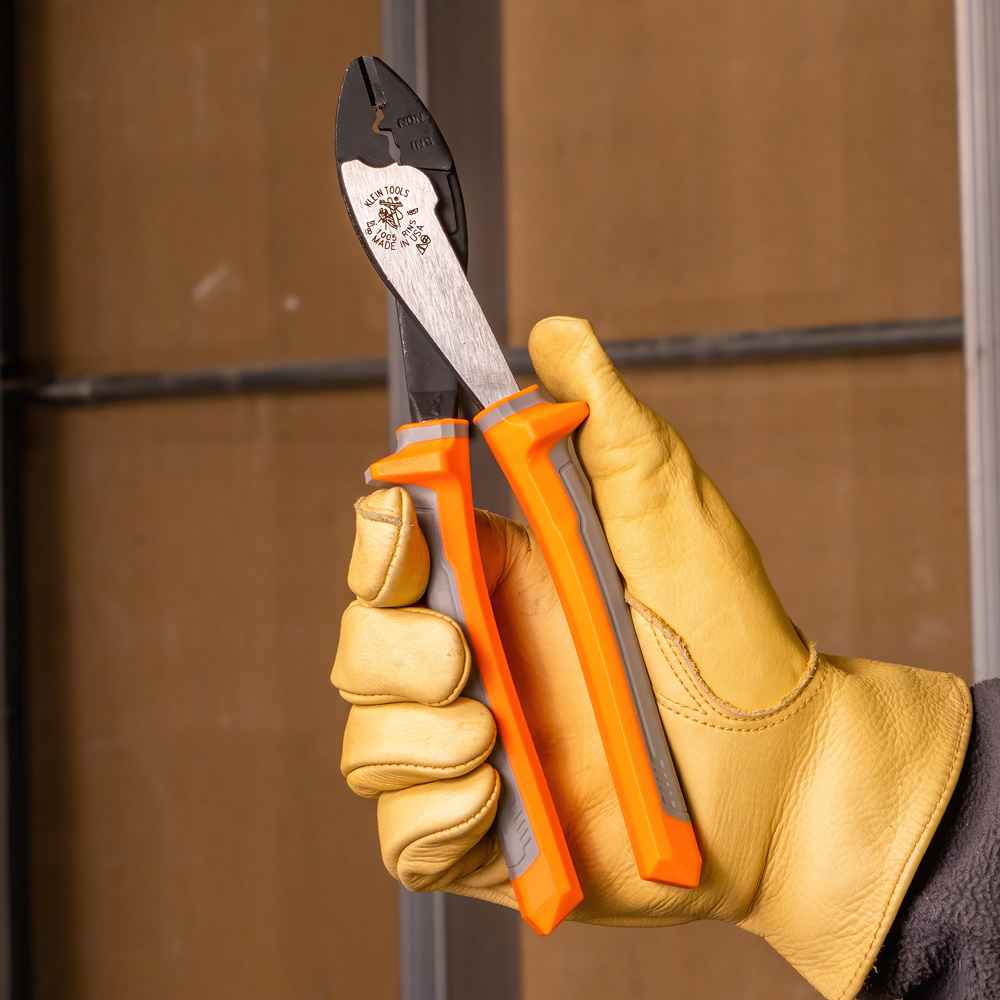

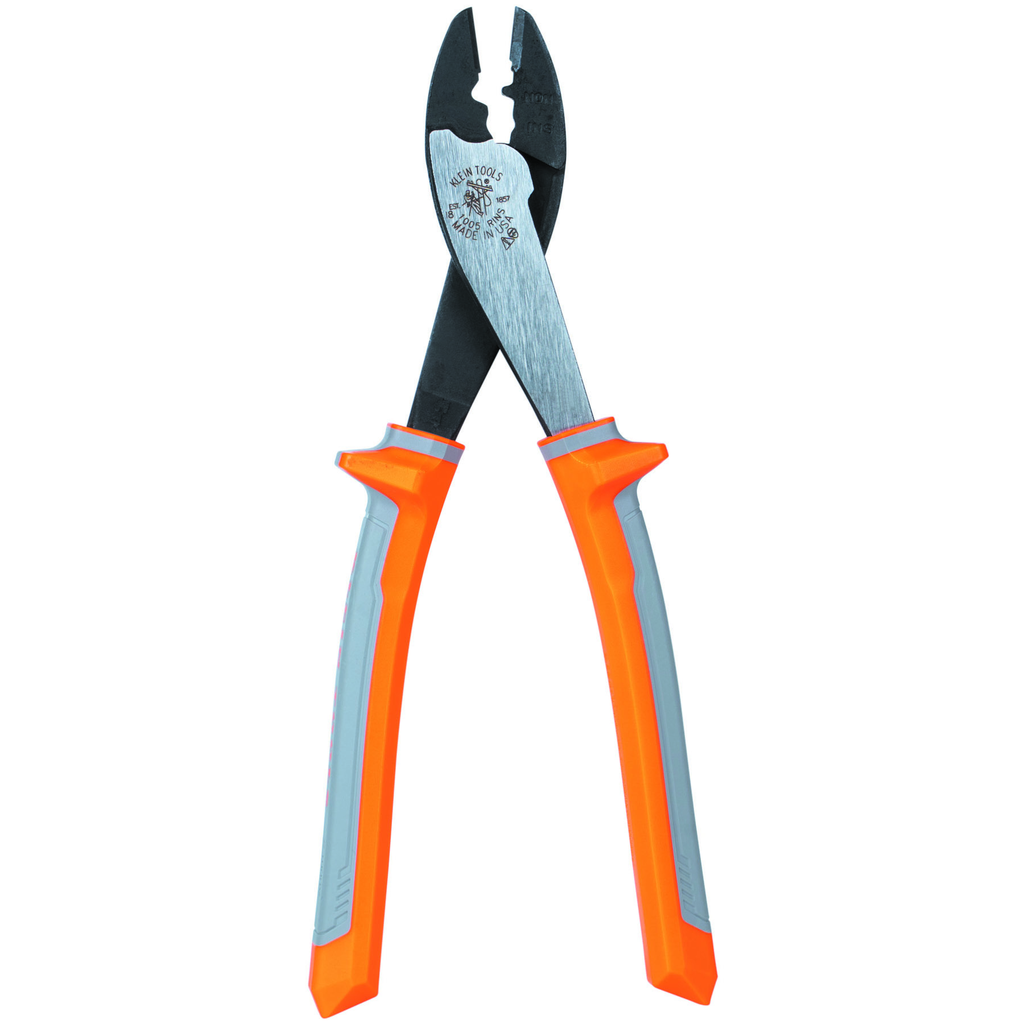

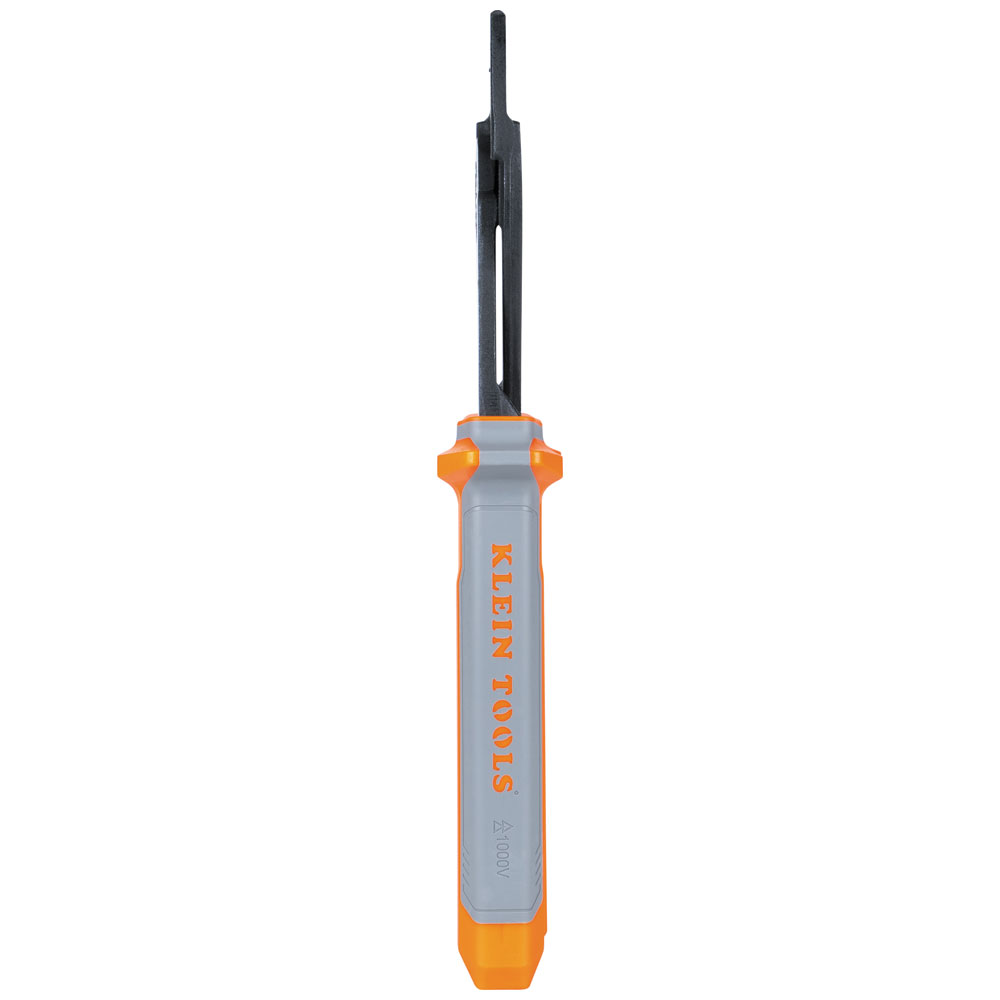

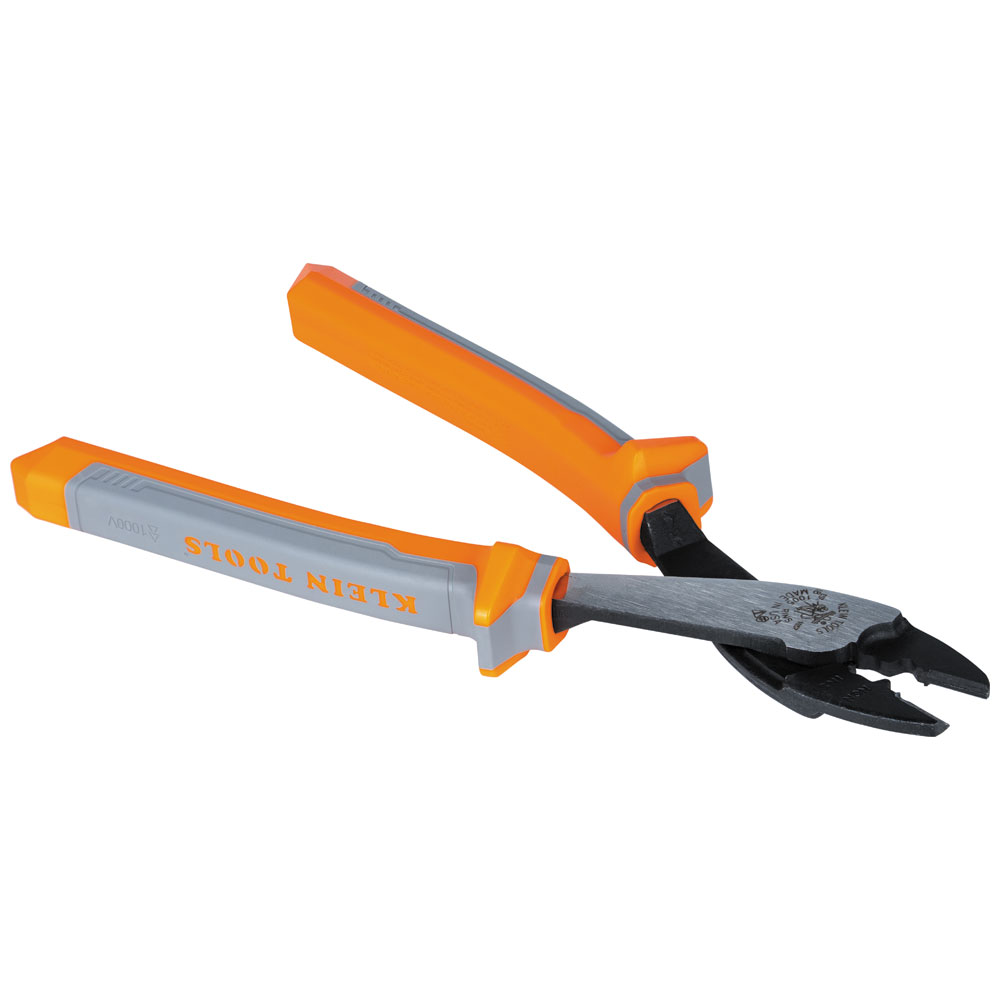

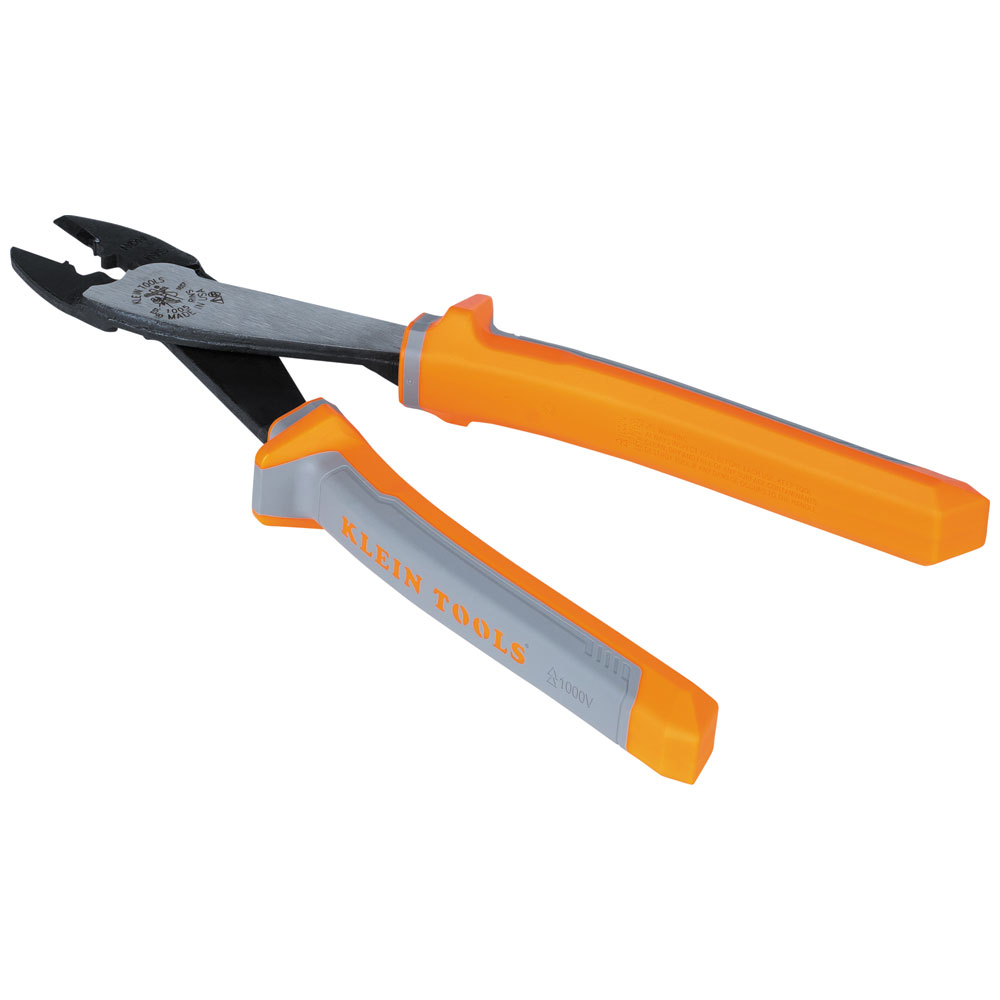

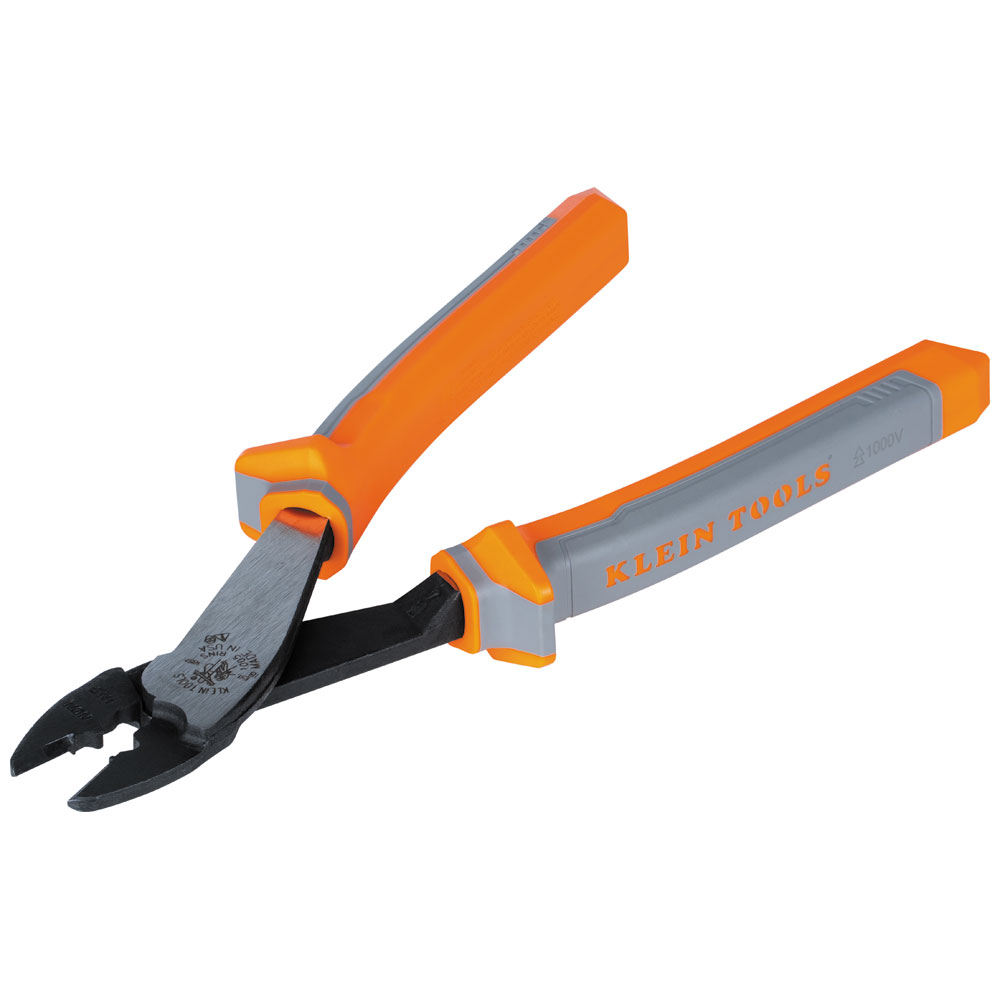

Crimping and Cutting Tool for Connectors, Insulated

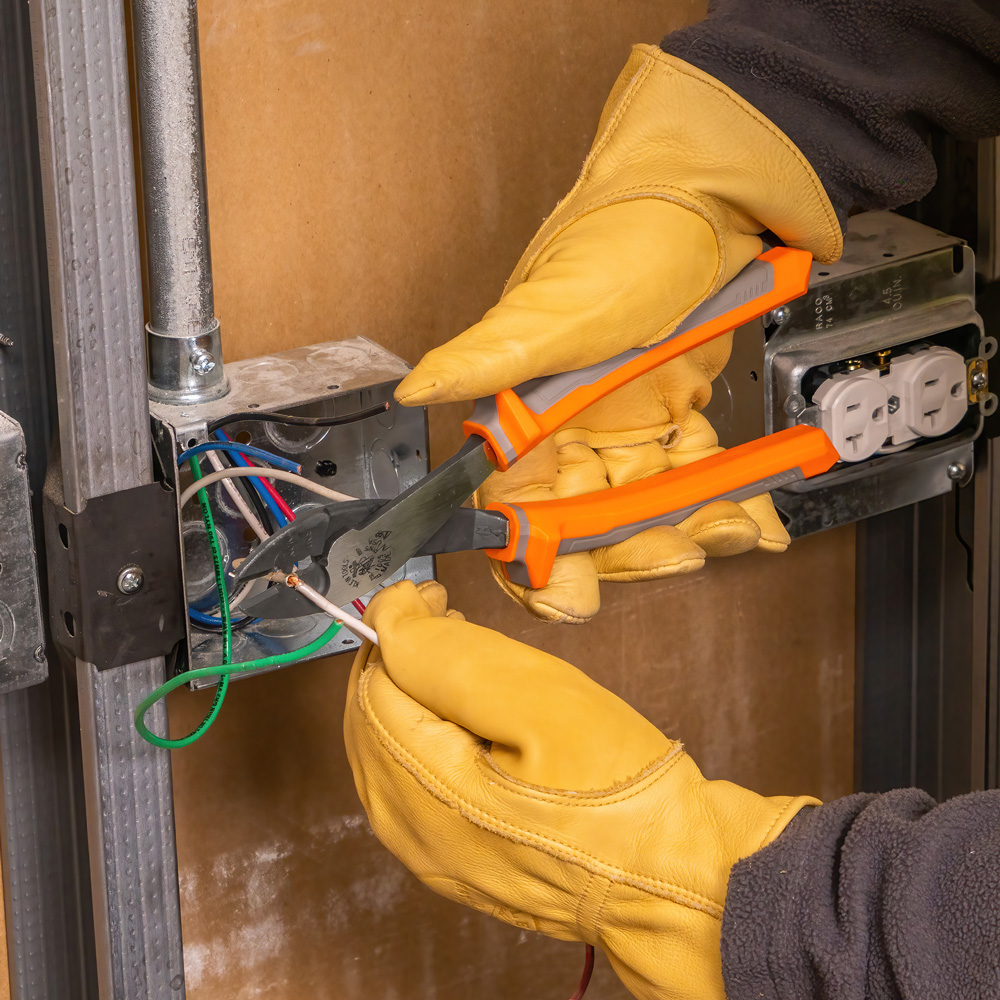

The Klein Tools Insulated Crimping/Cutting Tool crimps wire from 10 to 22 AWG. This crimper/cutter features a tapered nose for working in confined spaces. Additionally, it features bright orange outer coating on the handles that is flame retardant and impact resistant.

Features

• Made in USA
• Hot-riveted joint for smooth action and no handle wobble
• Individually tested to meet or exceed ASTM F1505-16 and IEC 60900 standards for insulated tools, and clearly marked with the official 1000V rating symbol
• Flame Retardant and Impact Resistant Handle
• Wire cutter in nose that is tapered for working in confined spaces, and induction hardened cutting knives for long life
• Multi-layer grip provides comfort and protection against electrical shock
• Crimper crimps insulated and non-insulated 10-22 AWG solderless terminals and connectors
• Flame retardant, impact-resistant, bright orange and gray outer coating

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Always wear approved eye protection.
• Always inspect your tools before use.

Specifications

• Handle Length (Inch): 5.73
• Knife Length (cm): 1.4
• Depth: 9.8300 in
• Cutting Knives: Standard
• Joint Type: Hot-Riveted
• Insulated: Yes
• Overall Width (Inch): 2.56
• Jaw Length (cm): 3.3
• Application: For Work Near Energized Sources
• Material: Induction Hardened Steel
• Overall Length (Inch): 9.83
• Handle Color: Orange/Light Gray
• Handle Material: High-Dielectric Plastic Cushion Grip
• Handle Finish: 2-Layer Insulation
• Knife Length (Inch): 0.56
• Nose Type: Tapered
• Height: 1.2800 in
• Overall Height (Inch): 1.28
• Overall Width (cm): 6.5
• Strips and Cuts AWG Stranded: 10-22
• Width: 2.5600 in
• Jaw Length (Inch): 1.3
• Overall Length (cm): 25
• Jaw Width (cm): 0.4
• Strips and Cuts AWG Solid: 10-22
• Overall Height (cm): 3.3
• Type: Combination Cutter Crimper
• Weight: 0.8620 lbs
• Jaw Width (Inch): 0.16
• Weight (oz): 13.8
• Cut Style: Knife on Anvil
• Weight (g): 391
• Tether Capable: No
• Handle Length (cm): 14.6
