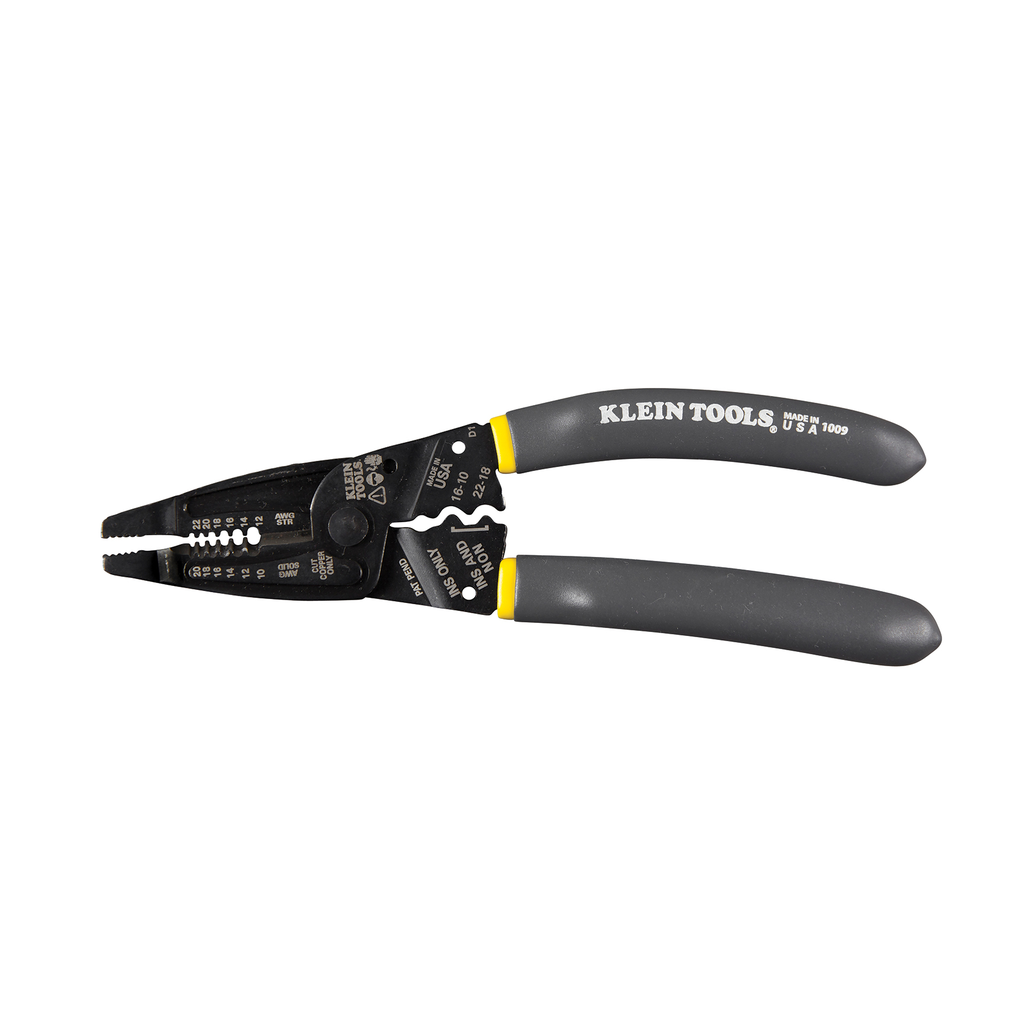

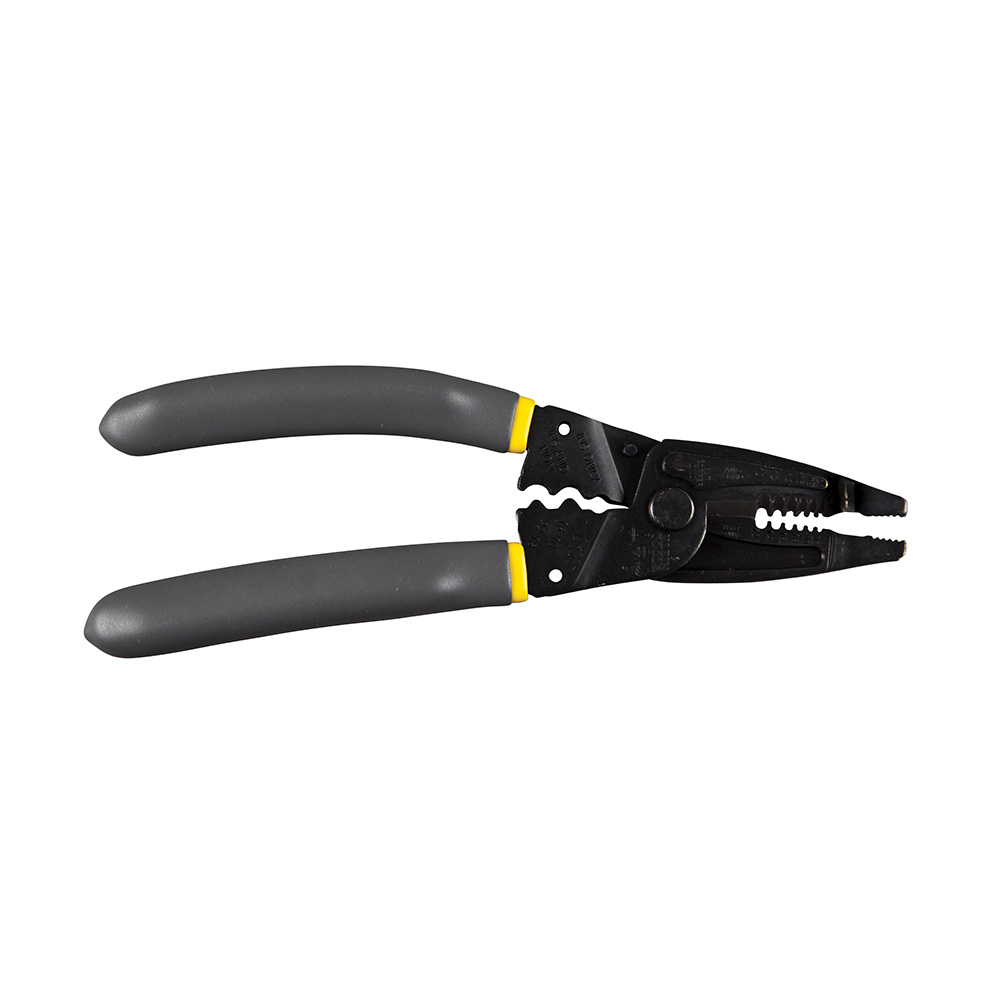

Klein-Kurve Long-Nose Wire Stripper, Wire Cutter, Crimping Tool

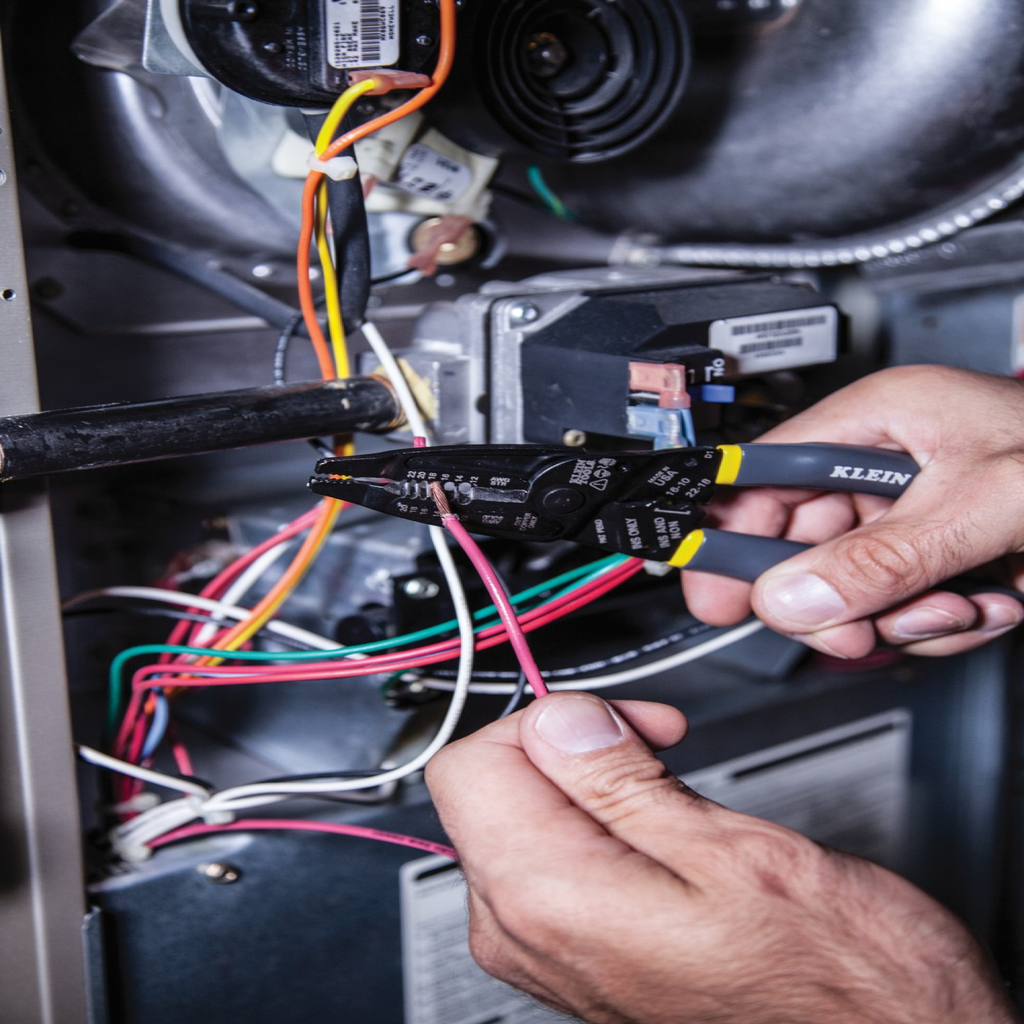

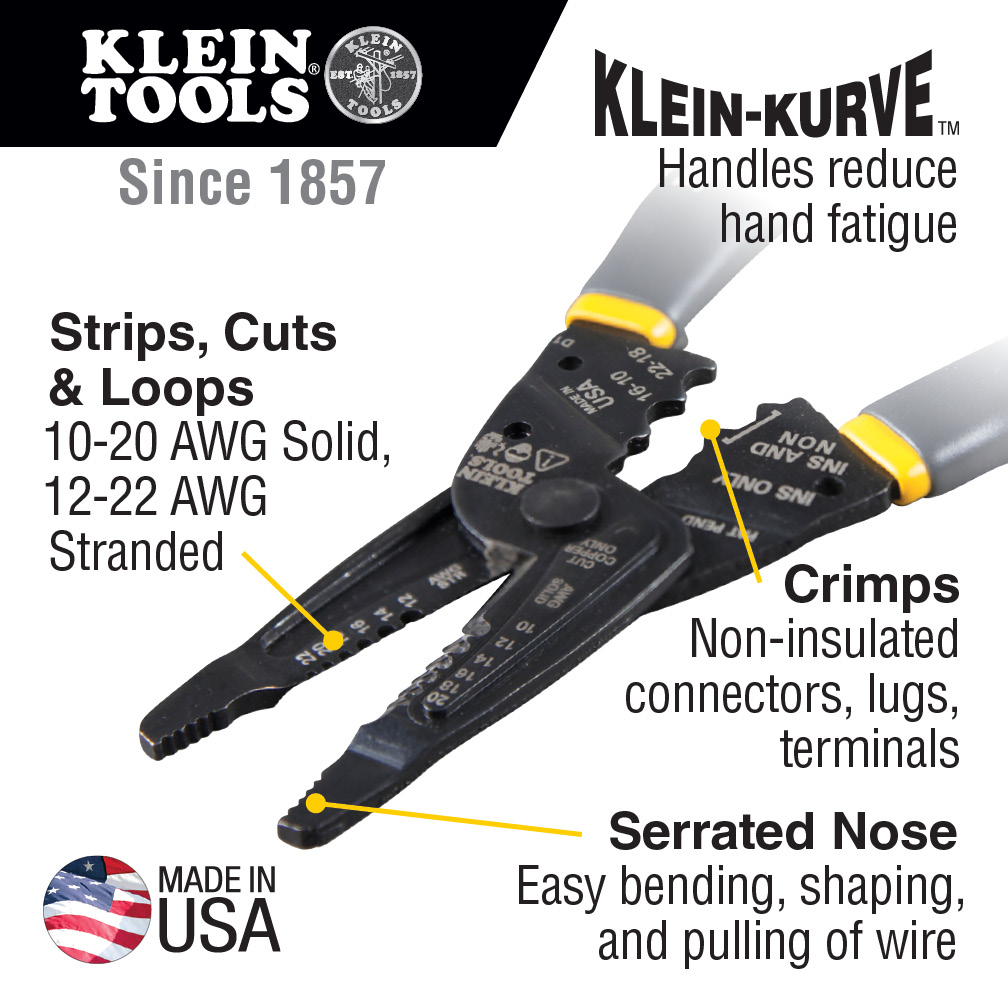

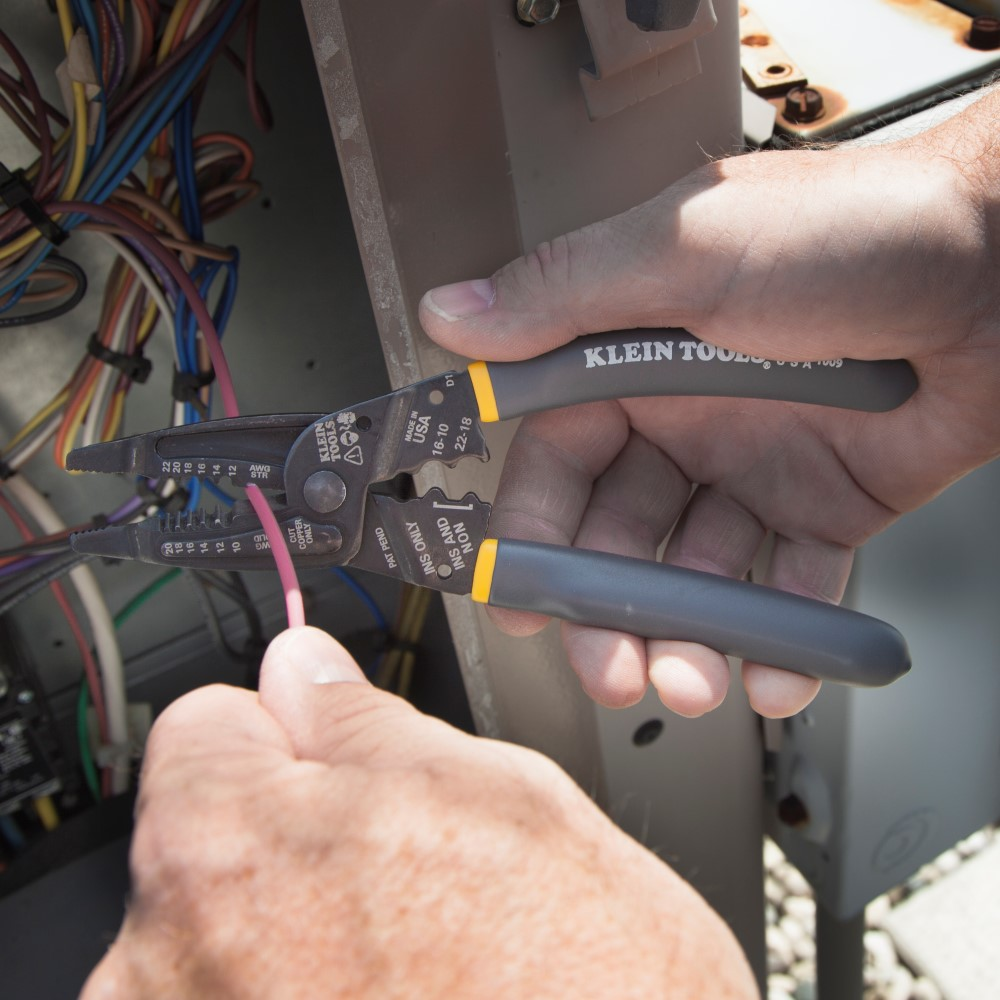

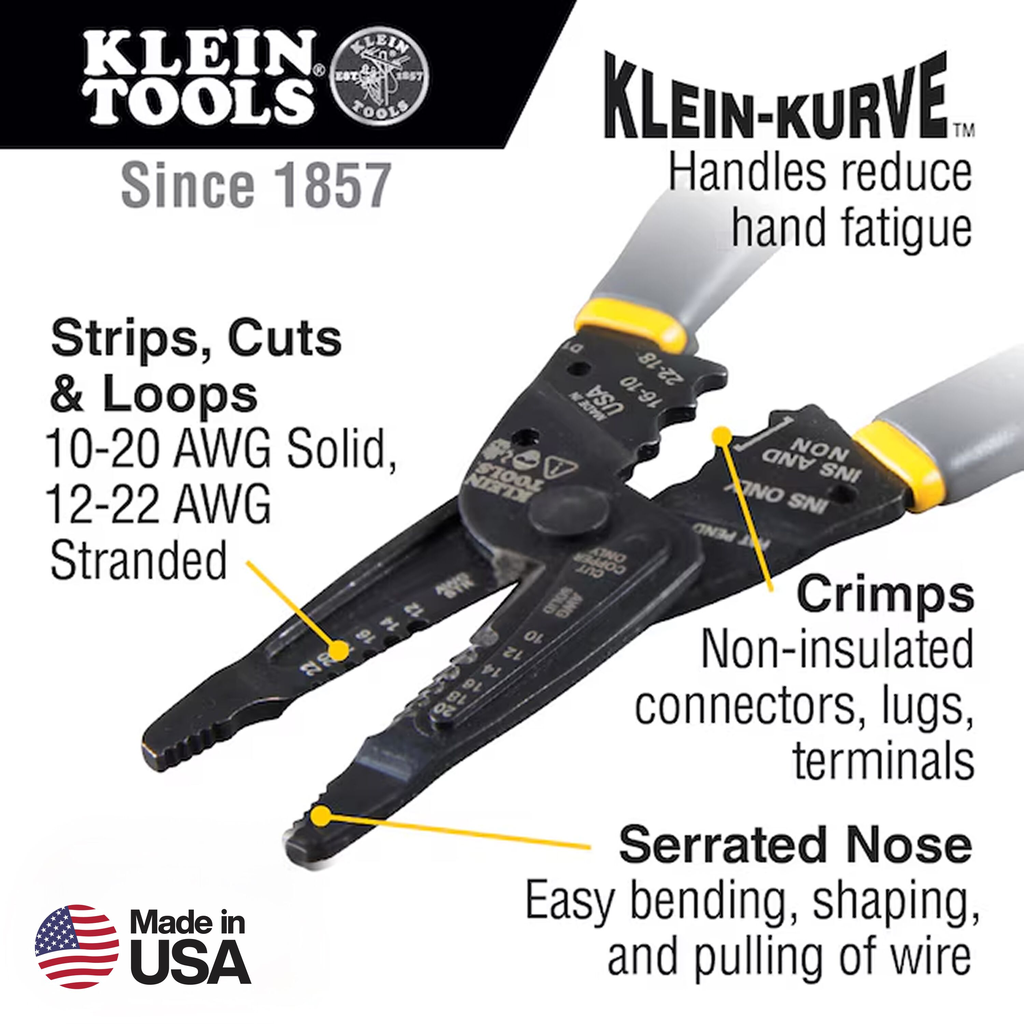

This Wire Stripper Long-Nose Multi Tool cuts and strips 10-20 AWG solid and 12-22 AWG stranded wire as well as crimps insulated and non-insulated connectors. The tip is designed to grab, pull and bend wires. It is optimized for ideal leverage when cutting and crimping. Precision shear-type blades make cutting easier.

Features

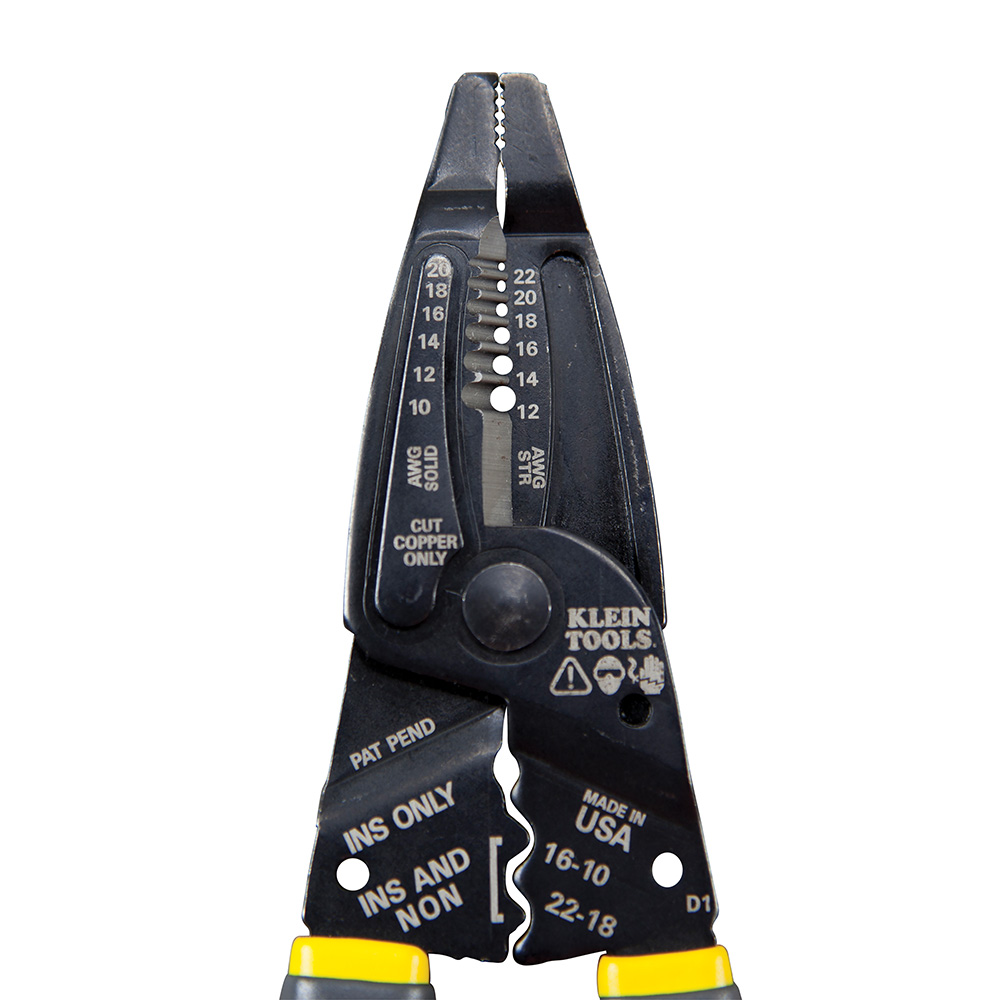

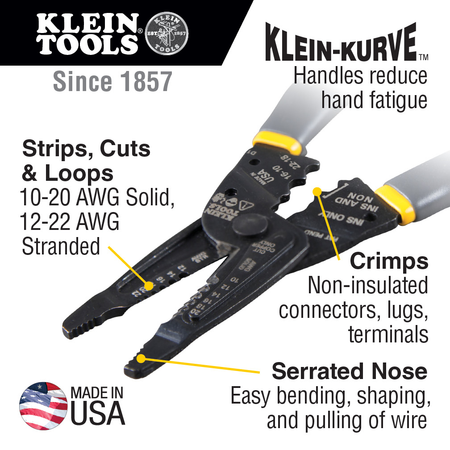

• Wire Stripper strips 10-20 AWG solid, 12-22 AWG stranded wire
• Do not use to cut steel wire

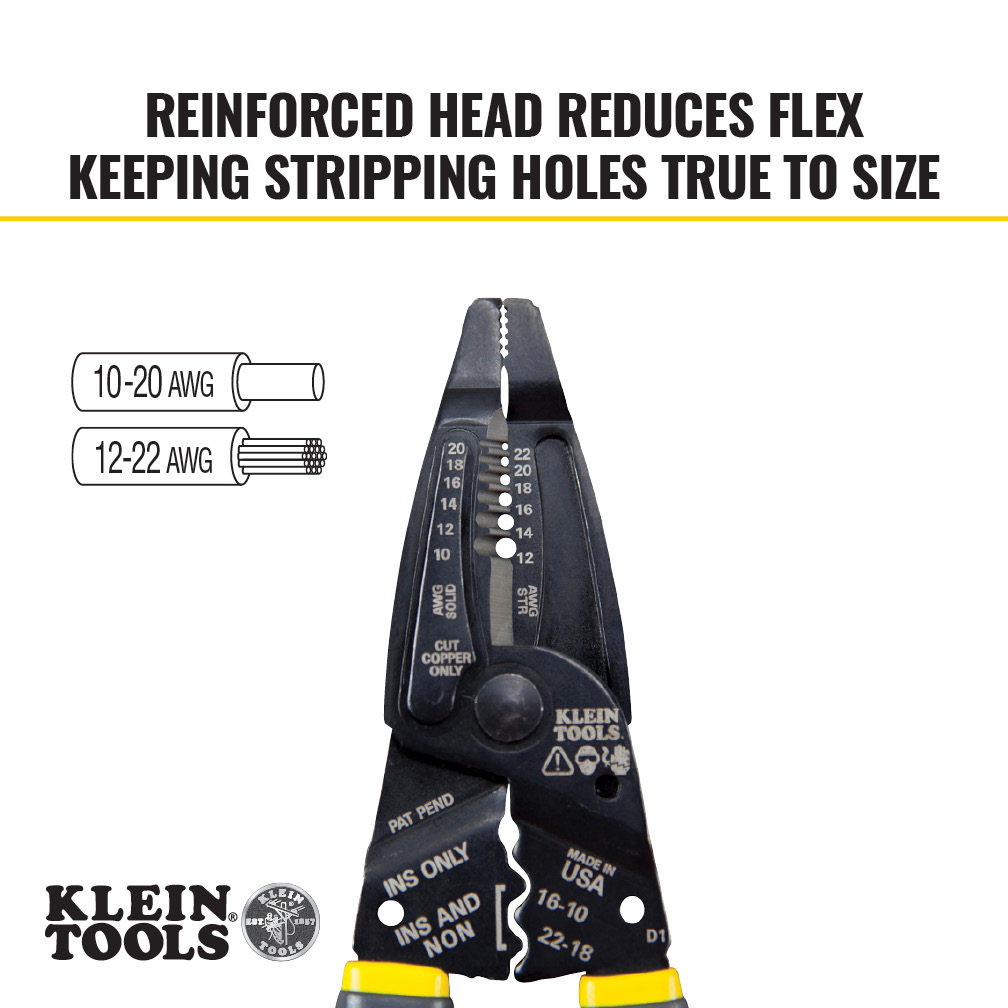

• Reinforced head reduces flex; optimized for ideal leverage when stripping and crimping
• Made in USA

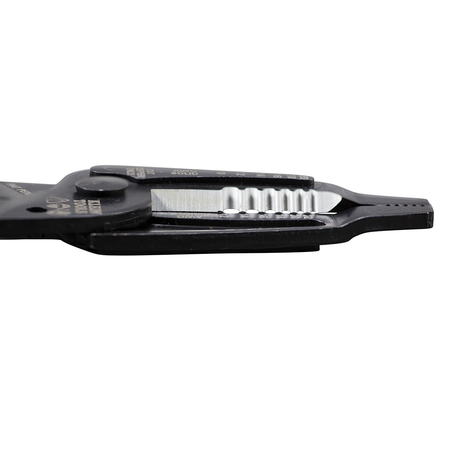

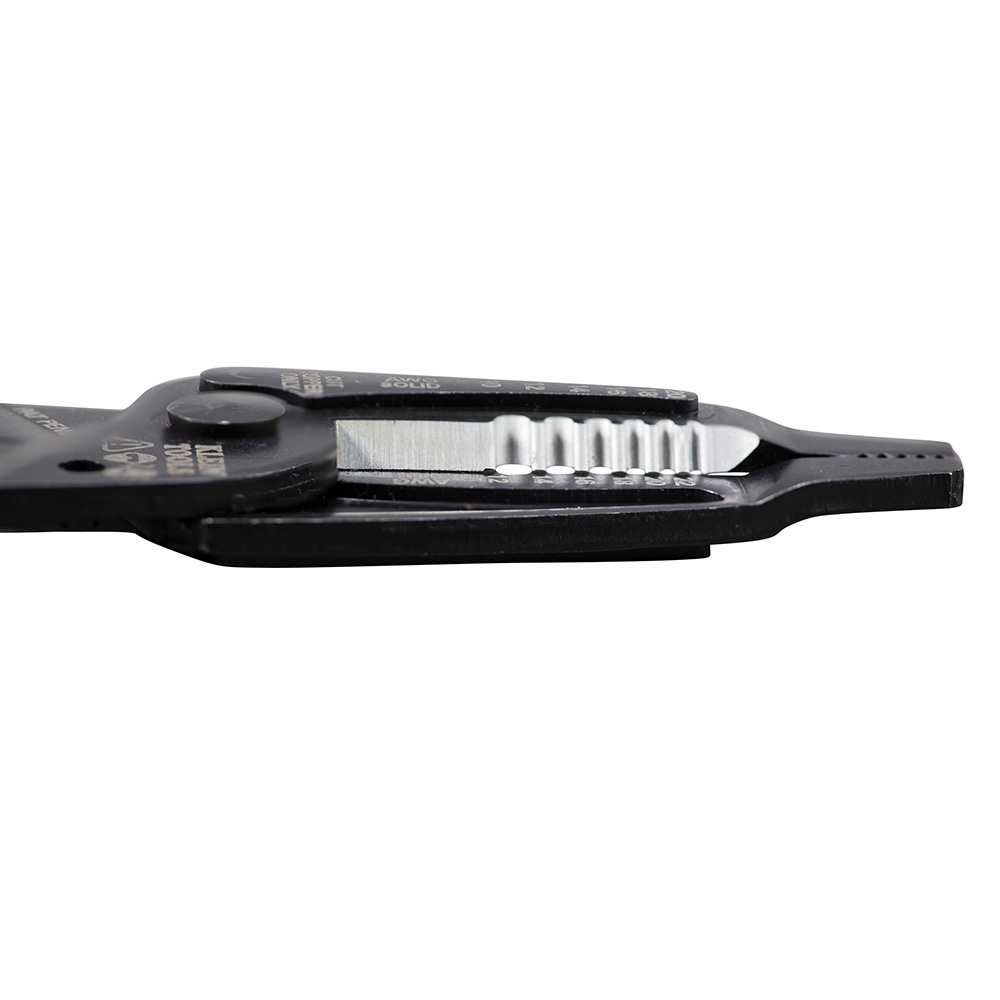

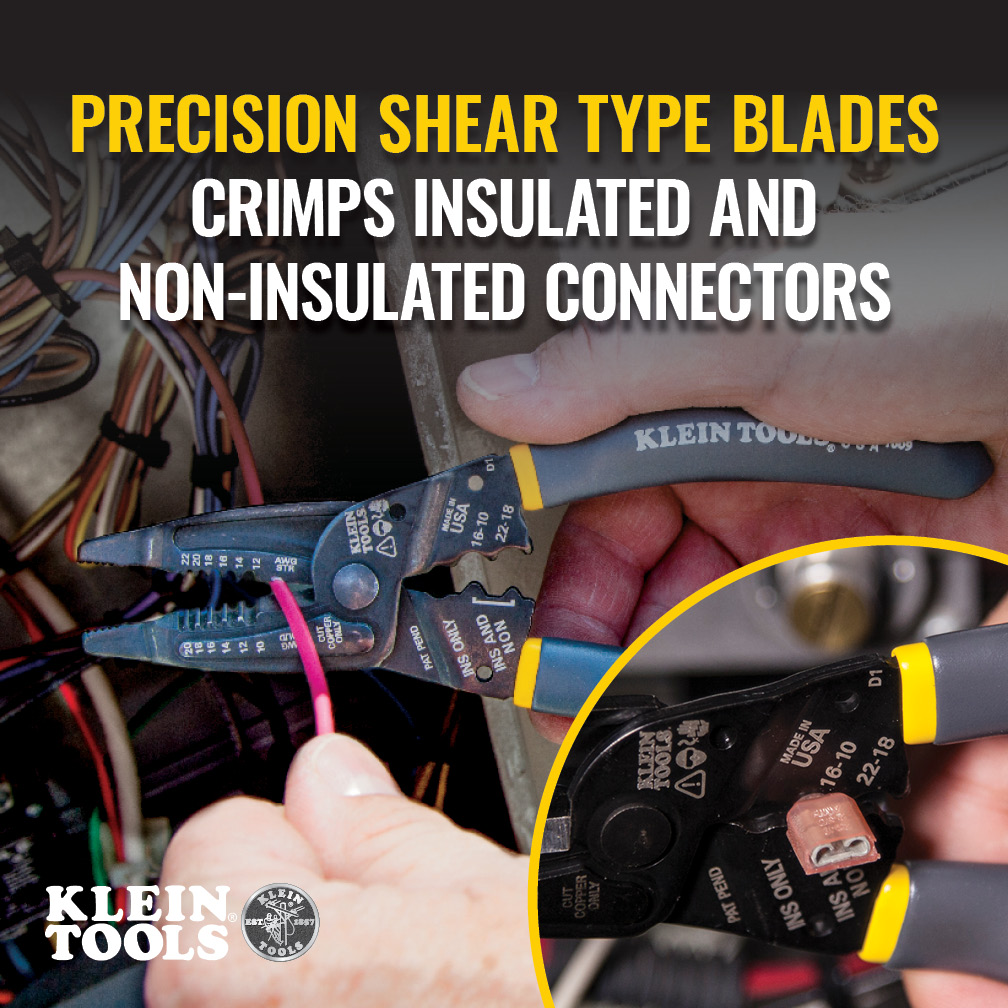

• Precision shear-type cutting blades for easier cutting
• Multi Tool crimps insulated and non-insulated connectors
• Tip designed to grab, pull and bend the smallest of wires
• Patent US D827,403
• Reinforced Head

Warnings

• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.
• DO NOT use to cut steel wire.
• Never use on or near live electrical circuits.
• Always wear approved eye protection.

Specifications

• Overall Length: 7.75 Inch (19.7 cm)
• Type: Long-Nose
• Screw Shearing: 6-32, 8-32
• Crimping Capacity: 10-22 AWG Insulated and Non-insulated Terminals
• Width: 2.5600 in
• Jaw Capacity: 1.095 Inch (2.8 cm)
• Strips and Cuts: 10-20 AWG Solid, 12-22 AWG Stranded
• Weight: 0.3400 lbs
• Depth: 7.7100 in
• Application: Wire Stripping, Cutting and Crimping
• Cutting Length: 1.3 cm (0.5 Inch)
• Handle Color: Gray/Yellow
• Handle Finish: Double Dipped
• Height: 0.6500 in
