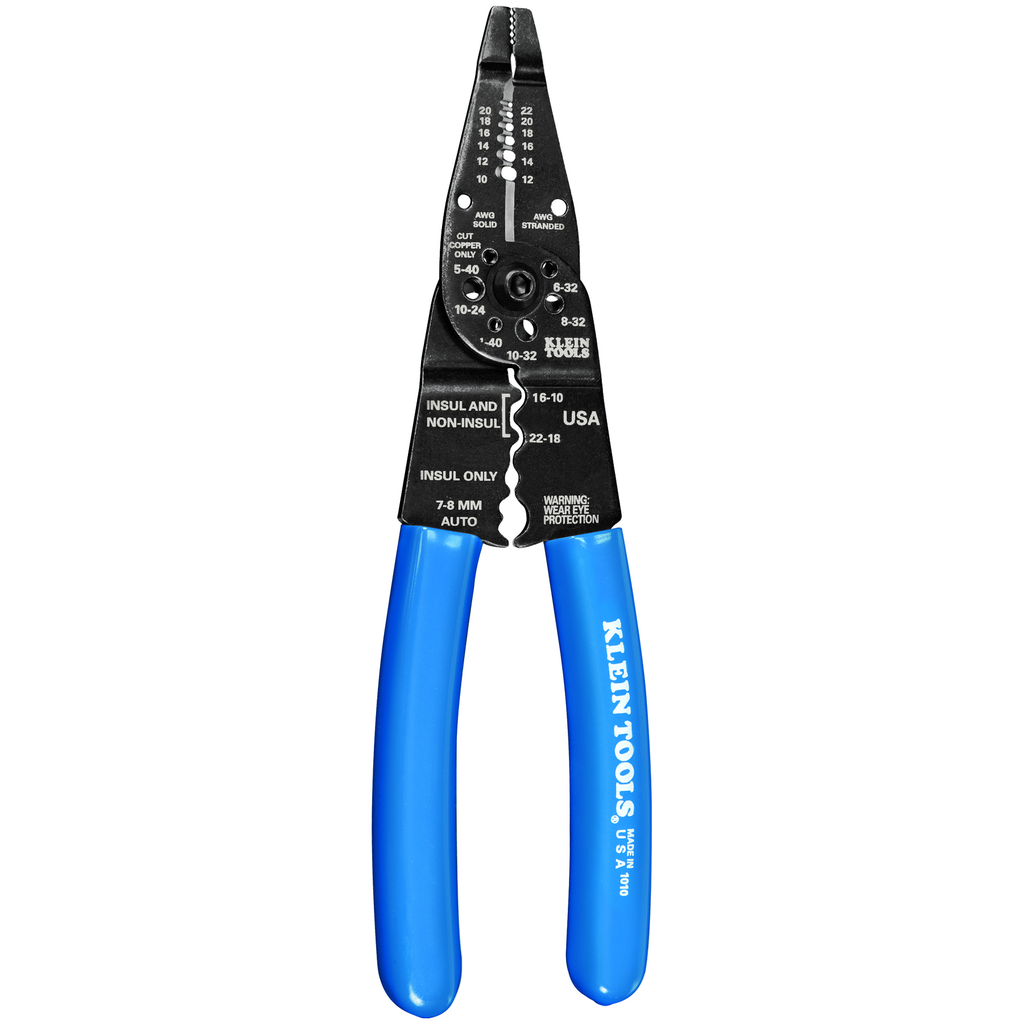

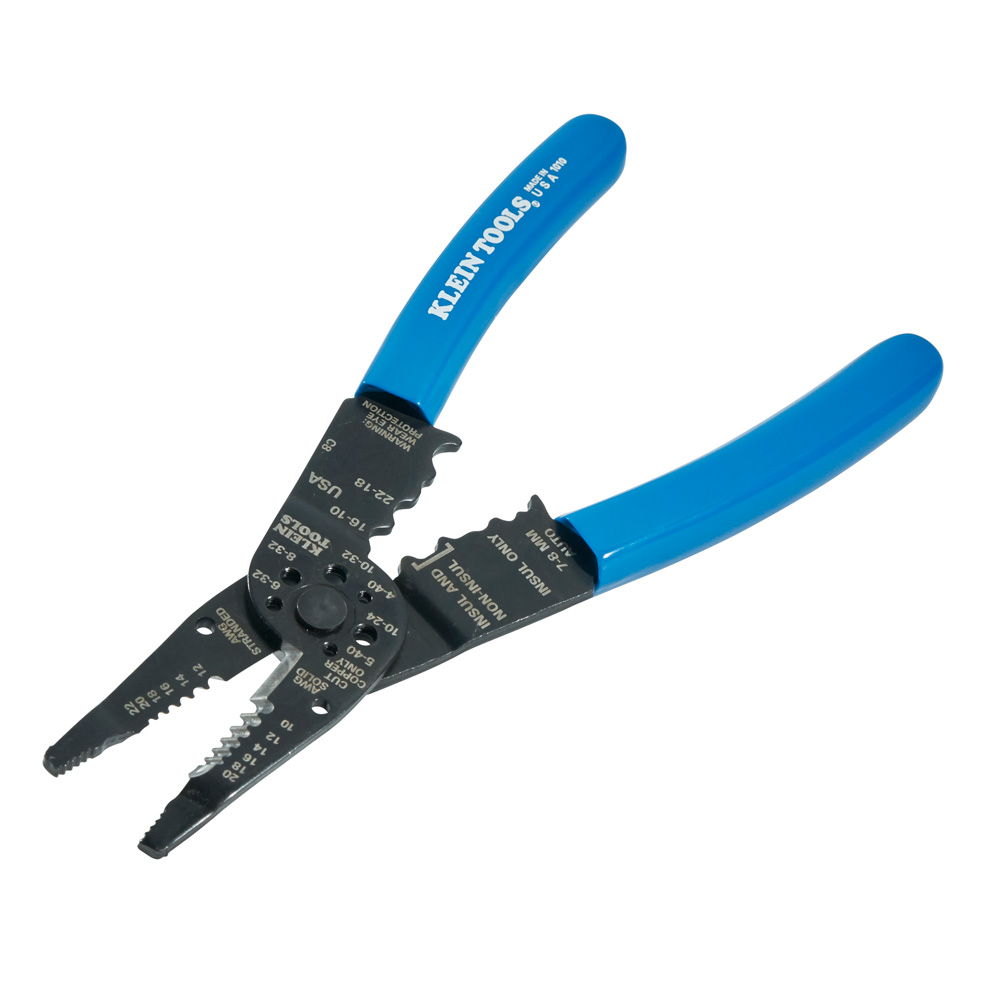

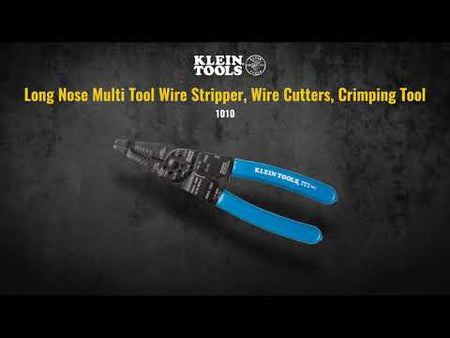

Long Nose Multi Tool Wire Stripper, Wire Cutters, Crimping Tool

The Klein Tools Wire Stripper Long Nose Multi Tool handles a wide range of functions, from wire and bolt cutting to stripping and crimping. The cutting and stripping holes are positioned in front of the pivot to easily fit into tight spaces. Plastic-covered cushioned handles make this tool comfortable to use.

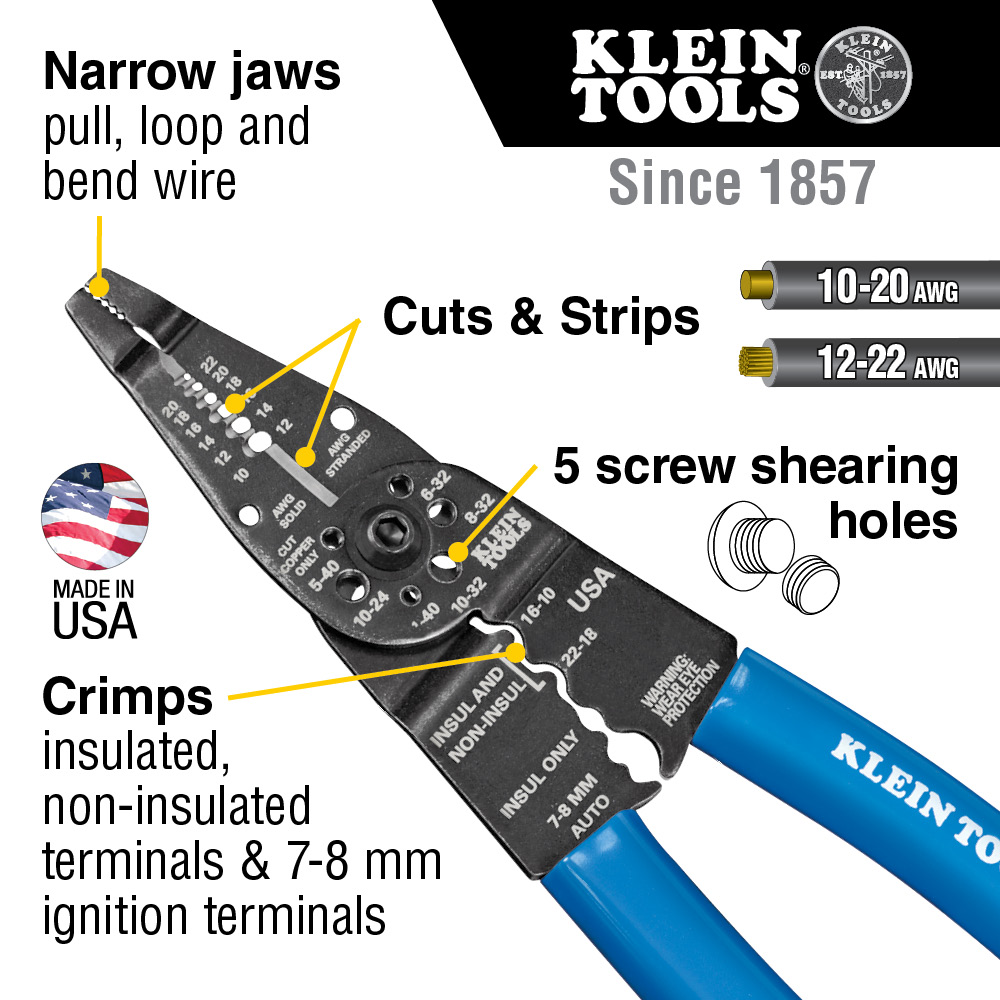

Features

• Wire stripper easily cuts and strips 10-20 AWG solid and 12-22 AWG stranded wire
• Cleanly shears 4-40, 5-40, 6-32, 10-32 and 10-24 screws and crimps insulated, non-insulated terminals and 7-8 mm ignition terminals
• Plastic-covered cushioned handles for comfort
• Multi Tool's narrow, serrated plier jaws pull, loop and bend wire
• Made in USA

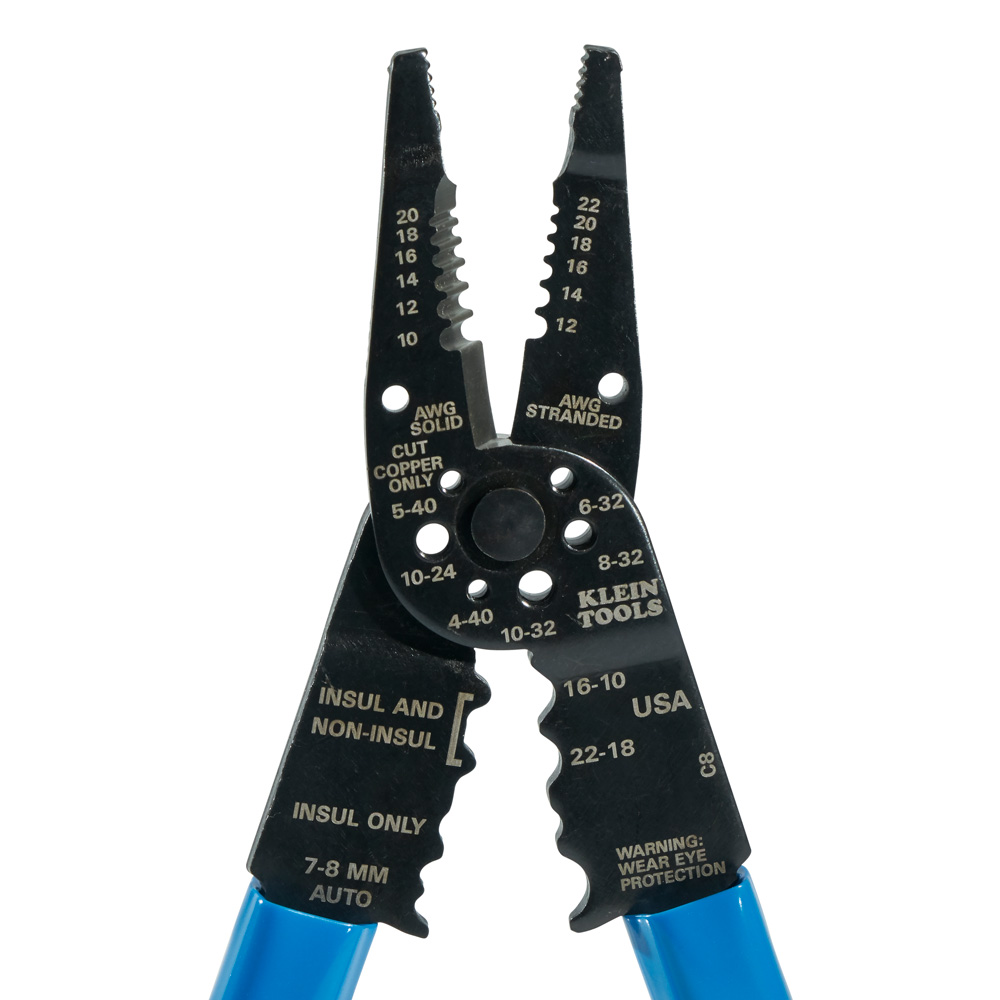

• Cutters and strippers are in front of the pivot to easily reach into tight places

Warnings

• Always wear approved eye protection.
• Never use on or near live electrical circuits.

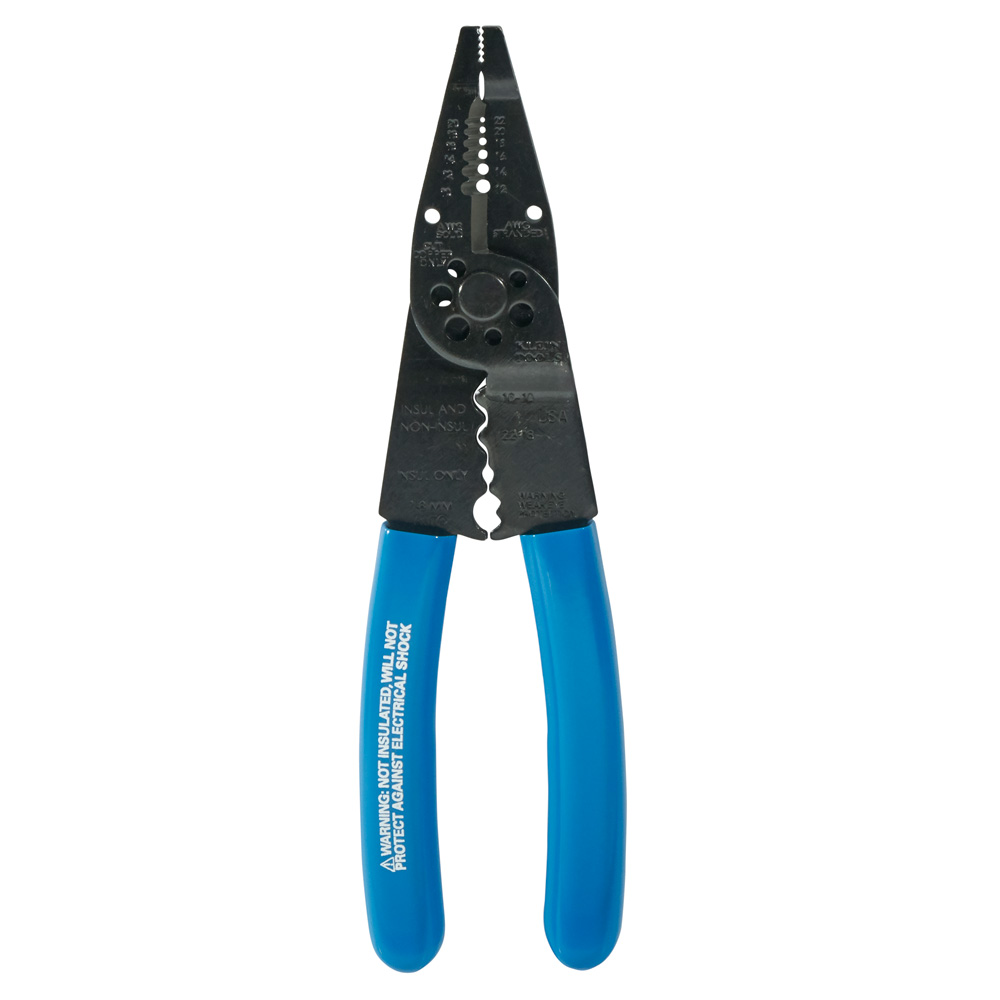

• NOT insulated. Plastic-dipped or slip-on plastic handles are NOT intended for protection against electrical shock.

Specifications

• Crimping Capacity: 10-22 AWG Insulated, Non-Insulated Terminals, 7-8 mm Ignition Terminals
• Overall Length (cm): 21
• Overall Length (Inch): 8.25
• Strips and Cuts: 10-20 AWG Solid, 12-22 AWG Stranded
• Handle Color: Blue
• Depth: 8.2500 in
• Width: 2.3750 in
• Weight: 0.4300 lbs
• Application: 10 - 20 AWG, 12 - 22 AWG
• Screw Shearing: 4-40, 5-40, 6-32, 8-32, 10-32, 10-24
• Weight (g): 196
• Weight (oz): 6.9
• Height: 3.9000 in
