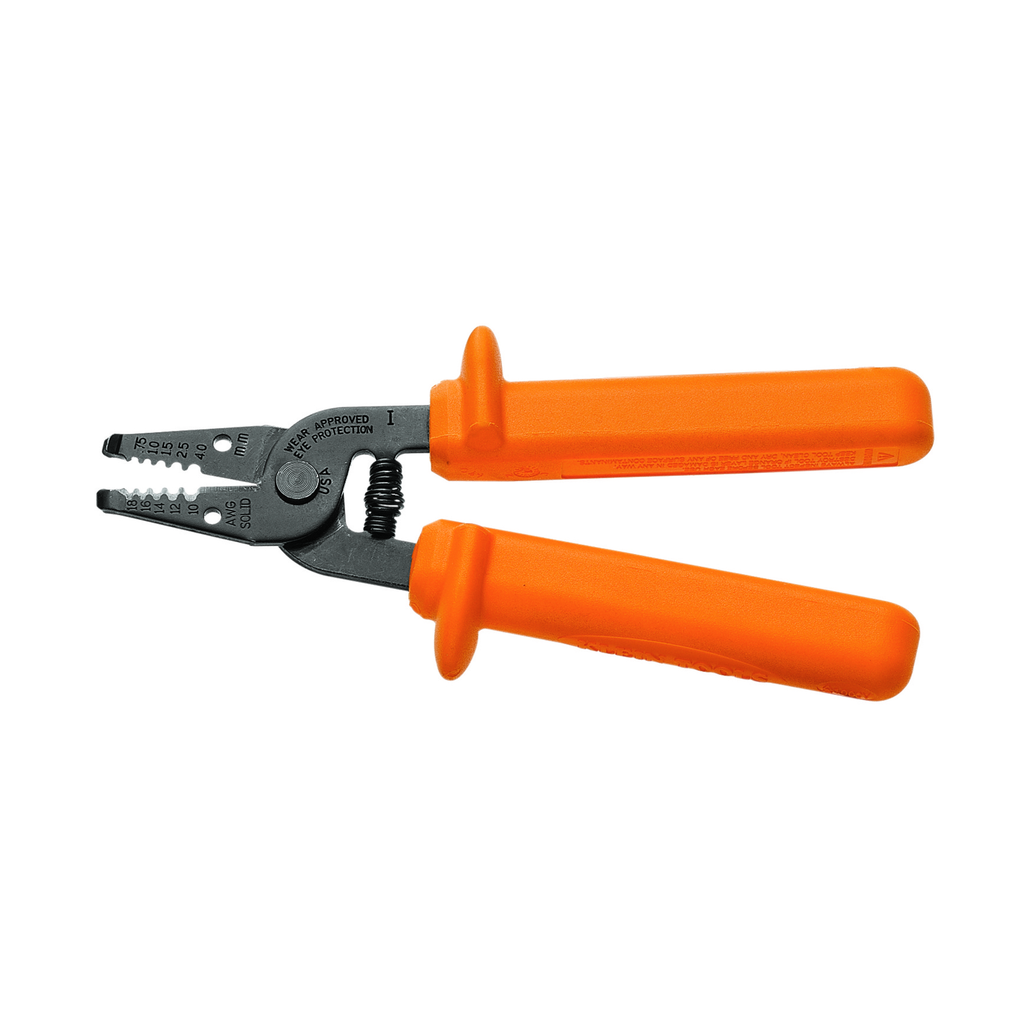

Insulated Wire Stripper and Cutter

This compact, lightweight wire-stripping, cutting tool cuts, strips, loops and gauges 10-18 AWG solid wire. Dual layer orange-over-white insulation protects against electric shock. Exceeds IEC 60900 and ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol. Hardened spring steel with precision-ground stripping holes for easy removal of insulation.

Features

• Hardened spring steel with precision-ground stripping holes for easy removal of insulation
• Clearly marked with the official 1000-volt rating symbol
• Made in USA
• Spring-loaded action for self-opening, and narrow nose fits into tight places
• Compact and Lightweight, Spring Loaded For Self Opening
• Individually tested to meet or exceed ASTM F1505-16 and IEC 60900:2018 standards for insulated tools
• Cuts, strips, loops and gauges solid wire
• Strips 10-18 AWG solid wire

Warnings

• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.

Specifications

• Insulated: Yes
• Weight (oz): 9.6
• Weight: 0.6000 lbs
• Handle Finish: 2-Layer Insulation
• Weight (g): 272
• Overall Length (cm): 17.8
• Width: 4.2500 in
• Strips and Cuts: 10-18 AWG Solid
• Application: Cuts, Strips, Loops and Gauges 10-18 Solid Wire
• Handle Color: Orange
• Standard: IEC 60900 and ASTM F1505
• Overall Length (Inch): 7
• Height: 1.0000 in
• Depth: 7.0000 in
• Material: Steel
