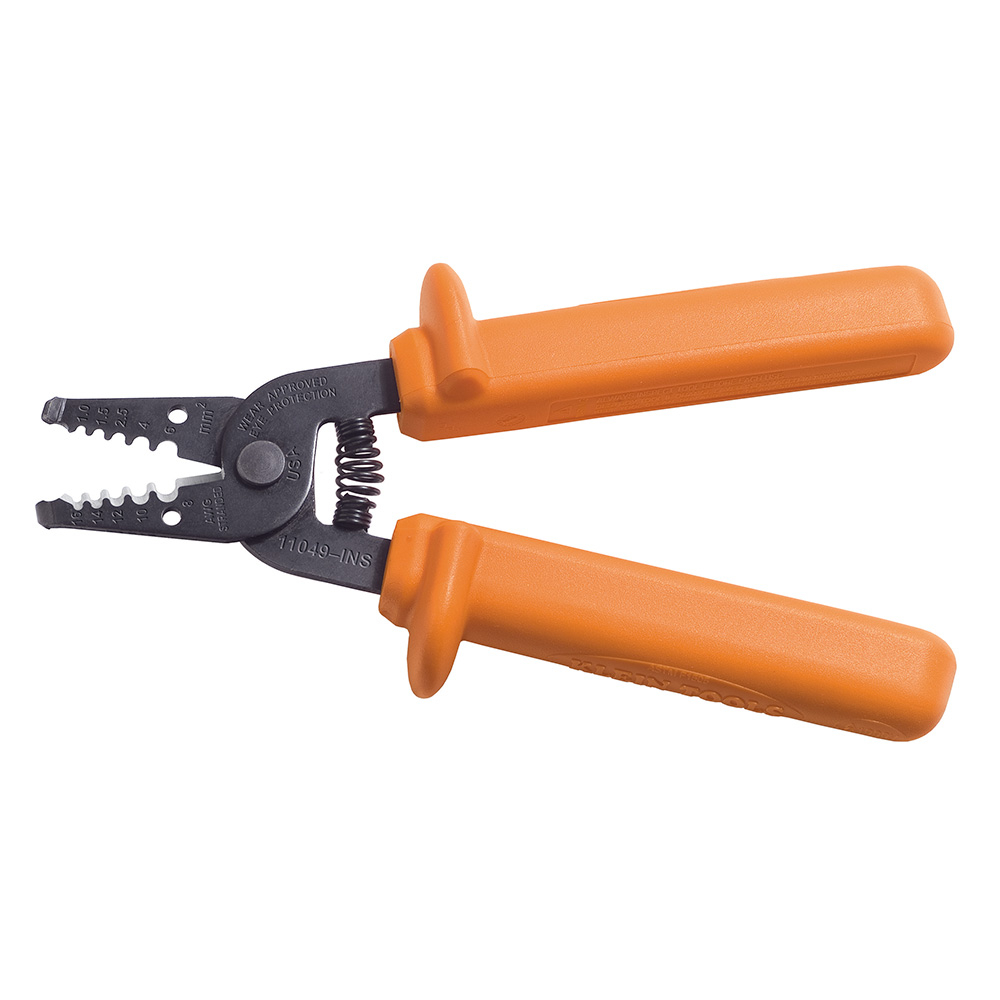

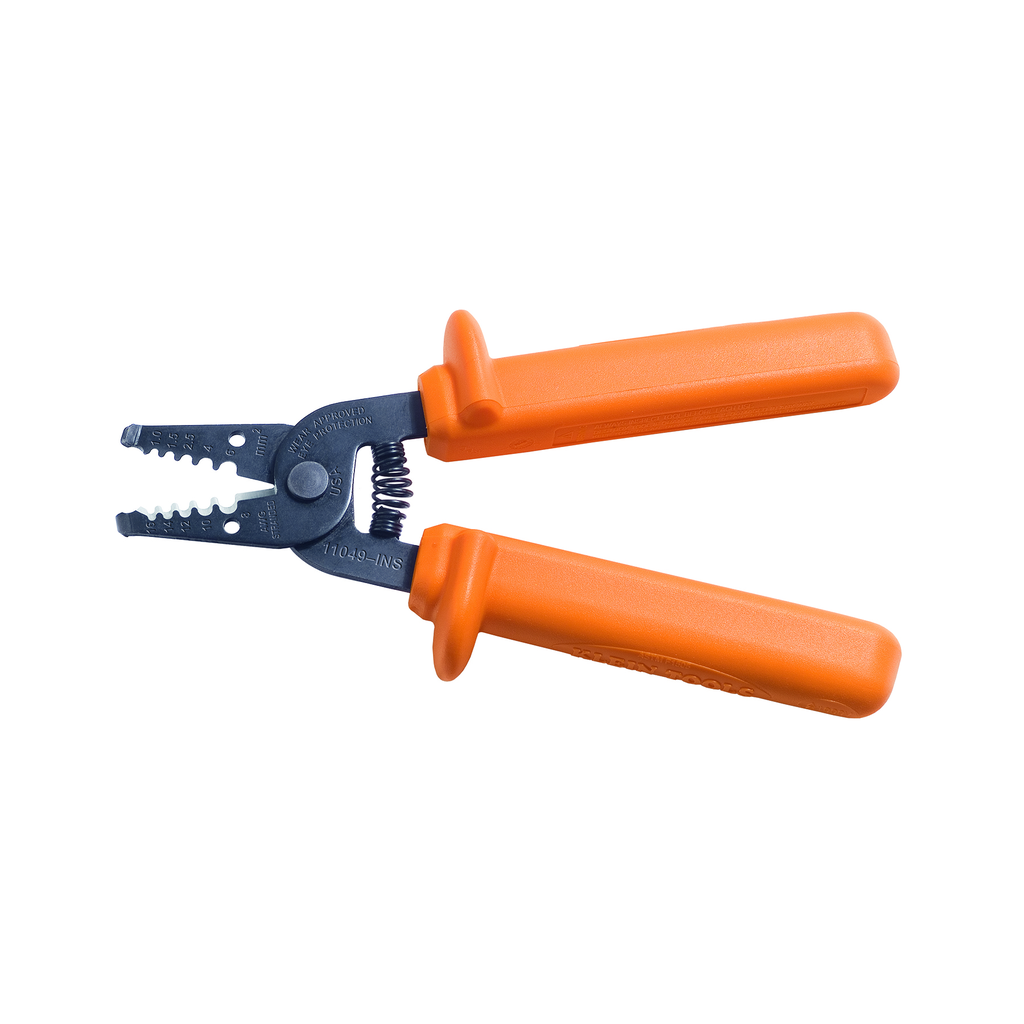

Wire Stripper/Cutter 8-16 AWG Stranded

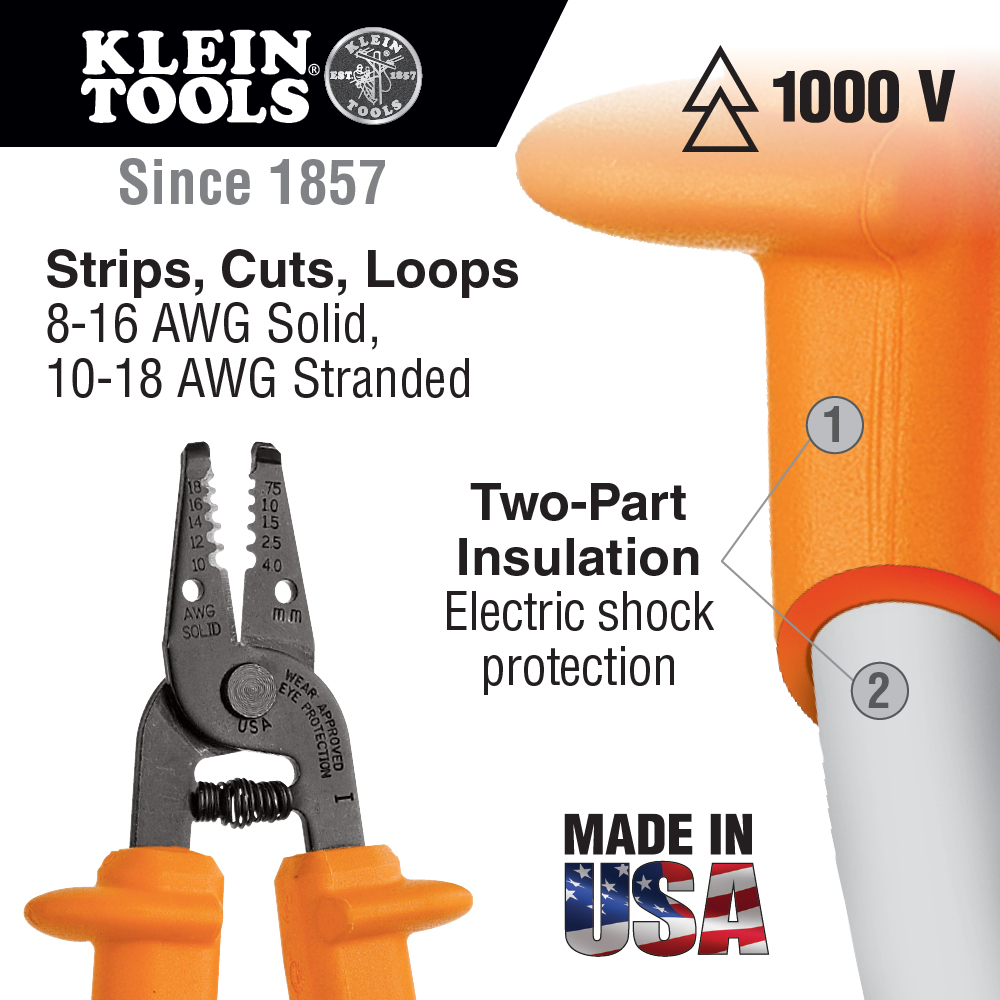

This compact, lightweight wire-stripping, cutting tool cuts, strips, loops and gauges solid wire. Dual layer orange-over-white insulation protects against electric shock. Meets or exceeds ASTM F1505-10, IEC 60900: 2004, CAN/ULC-60900-09, NFPA 70E, 2011 ed., CSA Z462 standards for insulated tools, and are clearly marked with the official 1000-volt rating symbol. Hardened spring steel with precision-ground stripping holes for easy removal of insulation.

Warnings

• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Wear approved eye protection.
• Because moisture, films, or other surface contaminants are conductive, Klein insulated tools must be kept clean, dry, and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Only use tools that are marked with the official international 1000-volt rating symbol shown above, if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.

Features

• Meets or exceeds ASTM F1505-10, IEC 60900: 2018, CAN/ULC-60900-09, NFPA 70E, 2011 ed., CSA Z462
• Spring-loaded for self-opening
• Individually dielectrically tested
• Narrow nose fits into tight places
• Compact, lightweight wire-stripping, cutting tool with narrow nose that fits into tight places
• Made in USA
• Gauges, cuts, strips, and loops stranded wire
• Hardened spring steel with precision-ground stripping holes for easy removal of insulation
• Compact, lightweight wire-stripping, cutting tool
• Compact and Lightweight, Spring Loaded For Self Opening

Specifications

• Country of Origin: United States
• Overall Length: 7" (17.8 cm)
• Handle Finish: 2-Layer Insulation
• Application: 8, 10, 12, 14, 16 Stranded AWG
• Material: Steel
• Depth: 7.0000 in
• Insulated: Yes
• Handle Color: Orange
• Width: 4.2500 in
• Strips and Cuts: 8-16 AWG Stranded
• Strips: Yes
• Cuts: Yes
• Standard: IEC 60900 and ASTM F1505
• Height: 1.0000 in
• Item: Wire Stripper / Cutter
• Weight: 0.6000 lbs
