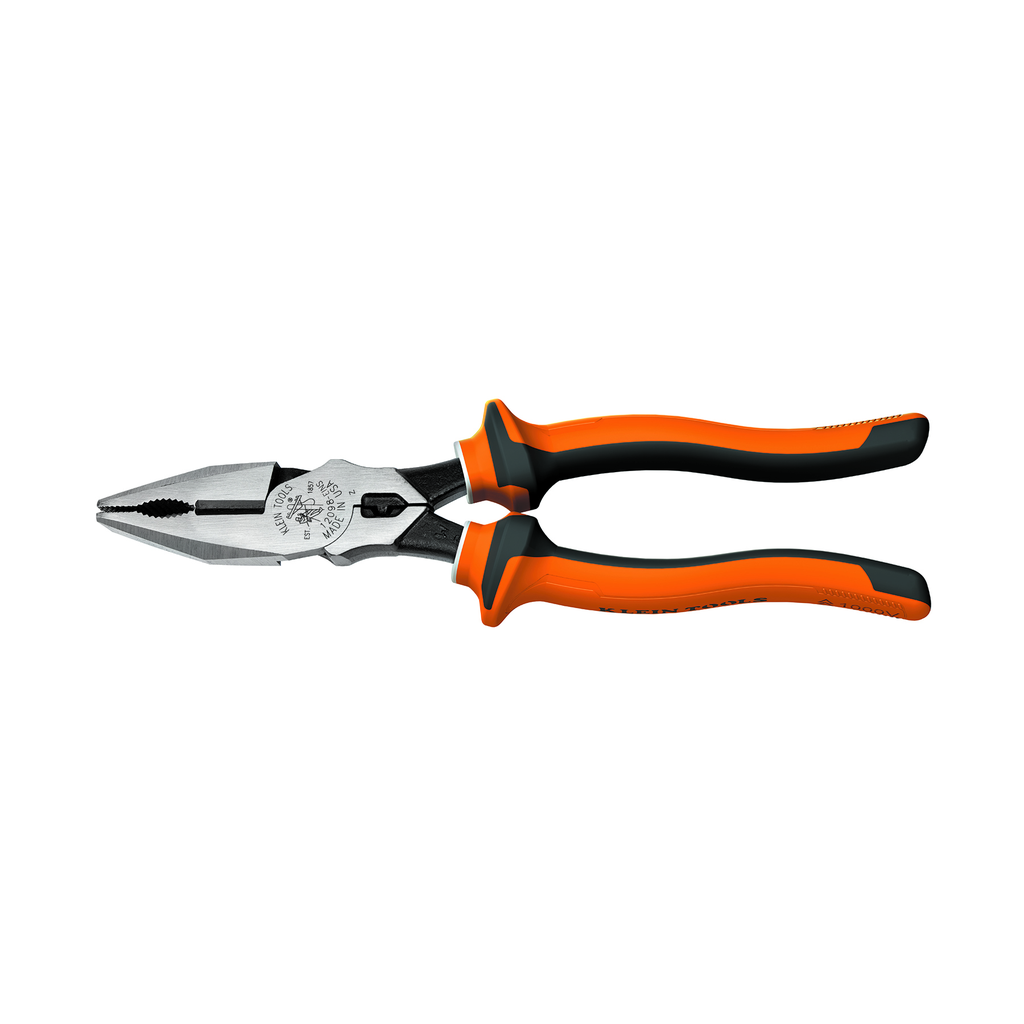

Combination Pliers, Insulated

Klein Tools Electrician's Insulated Combination Pliers are 1000V rated and VDE certified for safety on the job. The multi-color, sleek design with small thumb guards make for easy handling and storage. The three-part insulation with white underlayer provides a warning sign that insulation may be compromised. The durable, molded insulation meets or exceeds IEC 60900 and ASTM F1505 standards for insulated tools. These pliers feature a high-leverage design, with the rivet closer to the cutting edge for 40% greater cutting and gripping power than other pliers designs.

Features

• 1000 V Rated for safety on the job. VDE Certified
• Crimping die behind hinge for superior leverage when crimping non-insulated connectors, lugs and terminals and toothed pipe-grip for greater power
• Forged in the USA with custom, US-made tool steel for maximum durability
• Multi-color, sleek design with small thumb guards for ease of handling and easy storage in your toolbelt
• Integral Guards Help Prevent Hand Contact With Conductive Parts

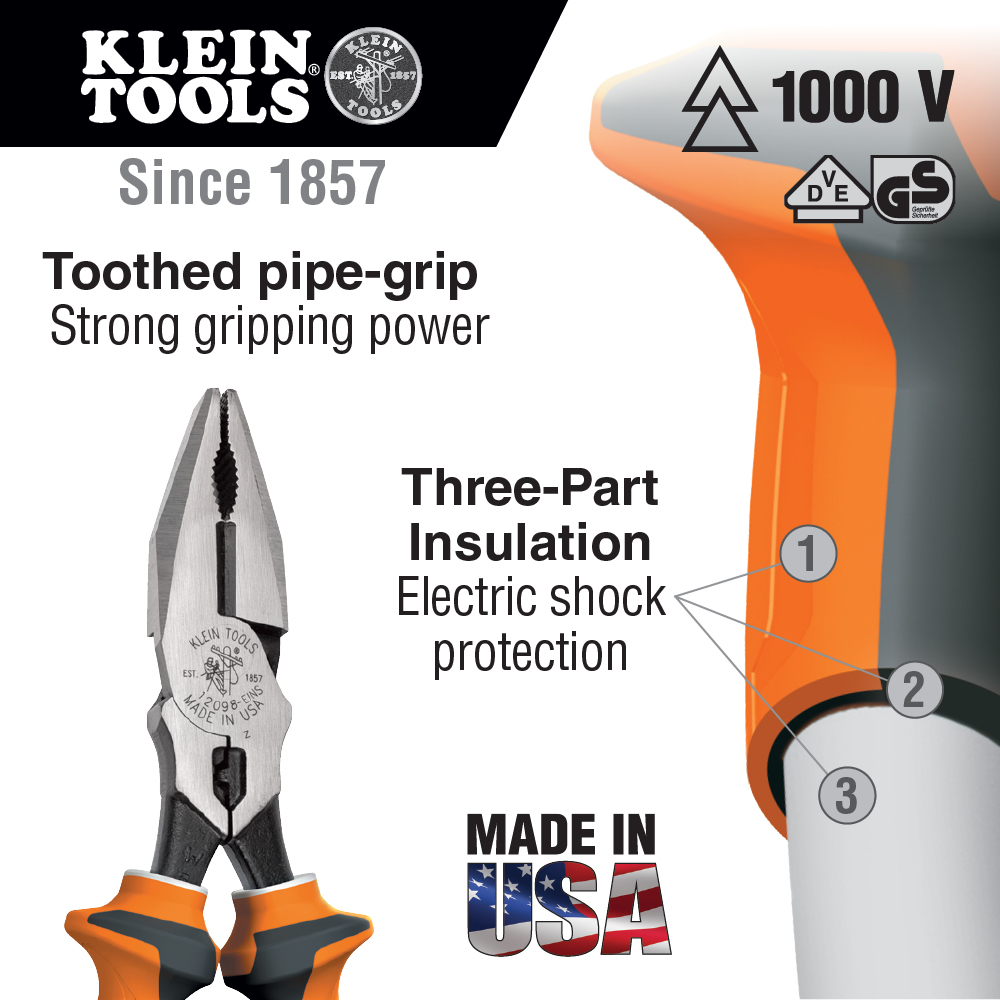

• Unique three-part insulation with white underlayer provides a warning sign that insulation may be compromised
• Durable, molded insulation meets or exceeds ASTM F1505 and IEC 60900 standards for insulated tools

Warnings

• Destroy tool if the insulation is damaged in any way.
• Always inspect your tools before use.
• Always wear approved eye protection.
• Only use tools that are marked with the official international 1000-volt rating symbol shown below, if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.

Specifications

• Handle Color: Orange/Gray
• Jaw Thickness (Inch): 0.55
• Standards: IEC 60900 and ASTM F1505
• Jaw Width (Inch): 1.02
• Knife Length (cm): 1.8
• Material: Induction Hardened Steel
• Depth: 8.8750 in
• Width: 3.0000 in
• Weight: 1.0000 lbs
• Nose Type: Universal
• Handle Length (cm): 12.1
• Jaw Width (cm): 2.6
• Handle Length (Inch): 4.75
• Jaw Thickness (cm): 1.4
• Weight (g): 454
• Application: Cuts ACSR, Screws, Nails and Most Hardened Wires
• Jaw Length (cm): 4.5
• Overall Length (cm): 22.1
• Weight (oz): 16
• Overall Length (Inch): 8.71
• Joint Type: Hot-Riveted
• Type: High-Leverage Pliers
• Jaw Length (Inch): 1.78
• Insulated: Yes
• Cut Style: Side-Cutting
• Knife Length (Inch): 0.711
• Handle Finish: 3-Layer Insulation
• Height: 0.5000 in
