Screwdriver Blades, Insulated Single-End, 2-Pack

Klein Tools' Insulated Interchangeable Blades contain a bright orange coating of insulation that protects from electrical shock, as well as being flame and impact resistant. When the blades are used with the Klein Tools' insulated handle, the complete tool exceeds the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-Volt rating symbol. These are replacement blades for the 8-in-1 Insulated Interchangeable Screwdriver Set (Cat. No. 32288), and can be used with the 2-in-1 Insulated Flip-Blade Screwdrivers (Cat. Nos. 32286, 32287, 32293).

Features

• Blade meets or exceeds ASTM F1505 standards for insulation when used with Klein insulated handle
• For use with Klein Tools' Insulated Interchangeable Screwdrivers: Catalog Numbers 32286, 32287, 32288, 32293
• Used with Klein insulated handle, blades have a 1000-Volt insulation rating
• Single-ended blades have 5.75-Inch shaft length out of handle
• Insulated
• A layer of orange impact and flame resistant insulation protects from electric shock

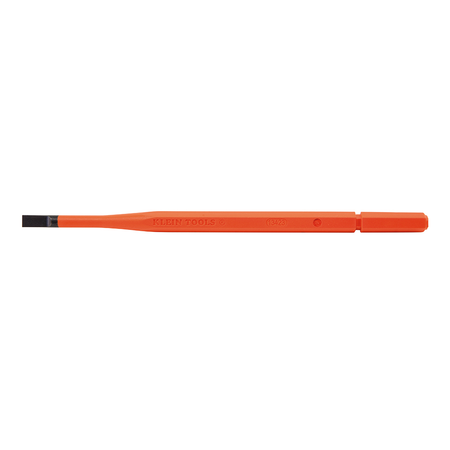

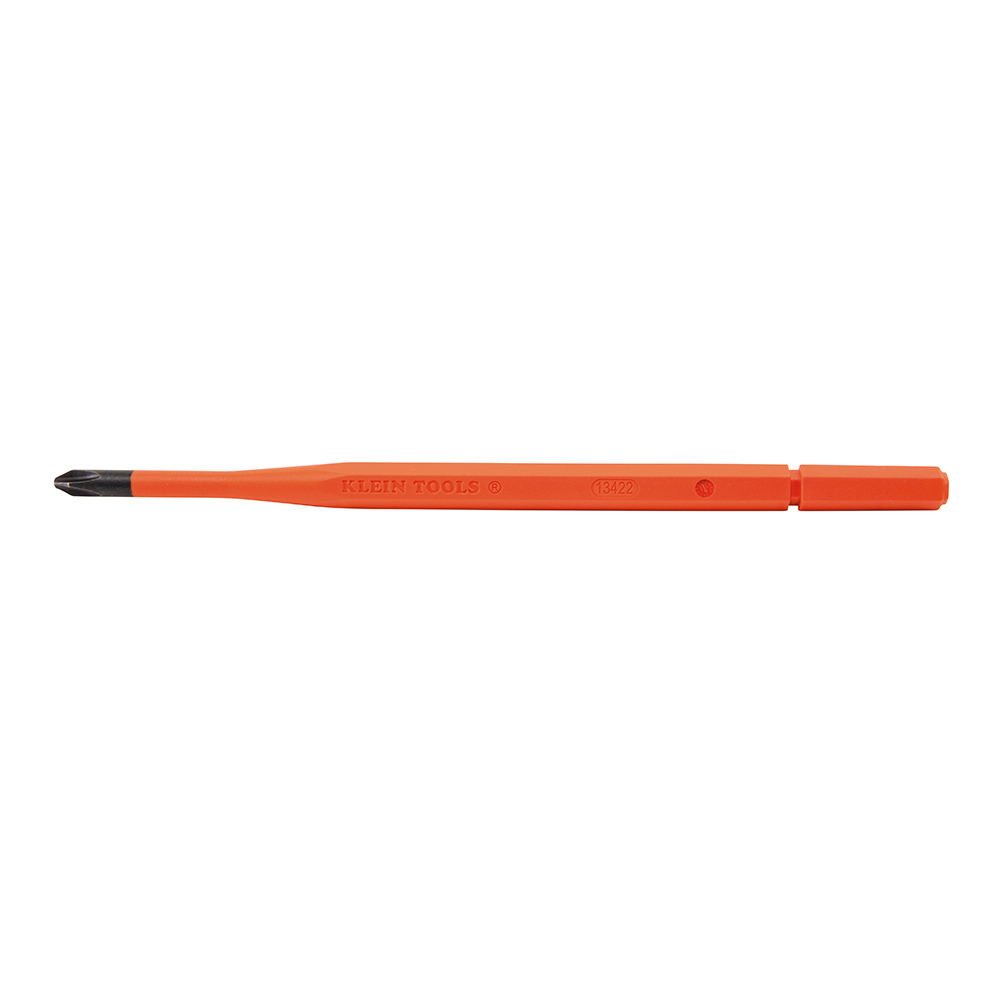

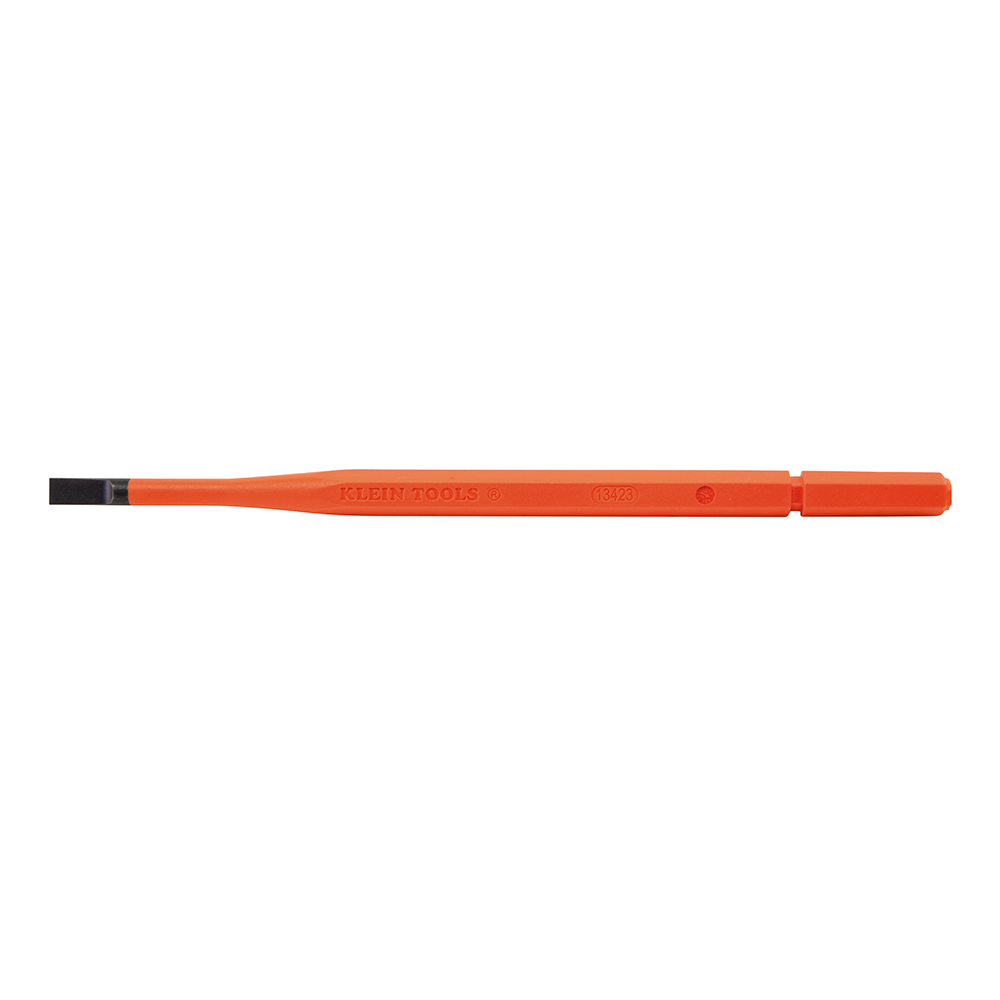

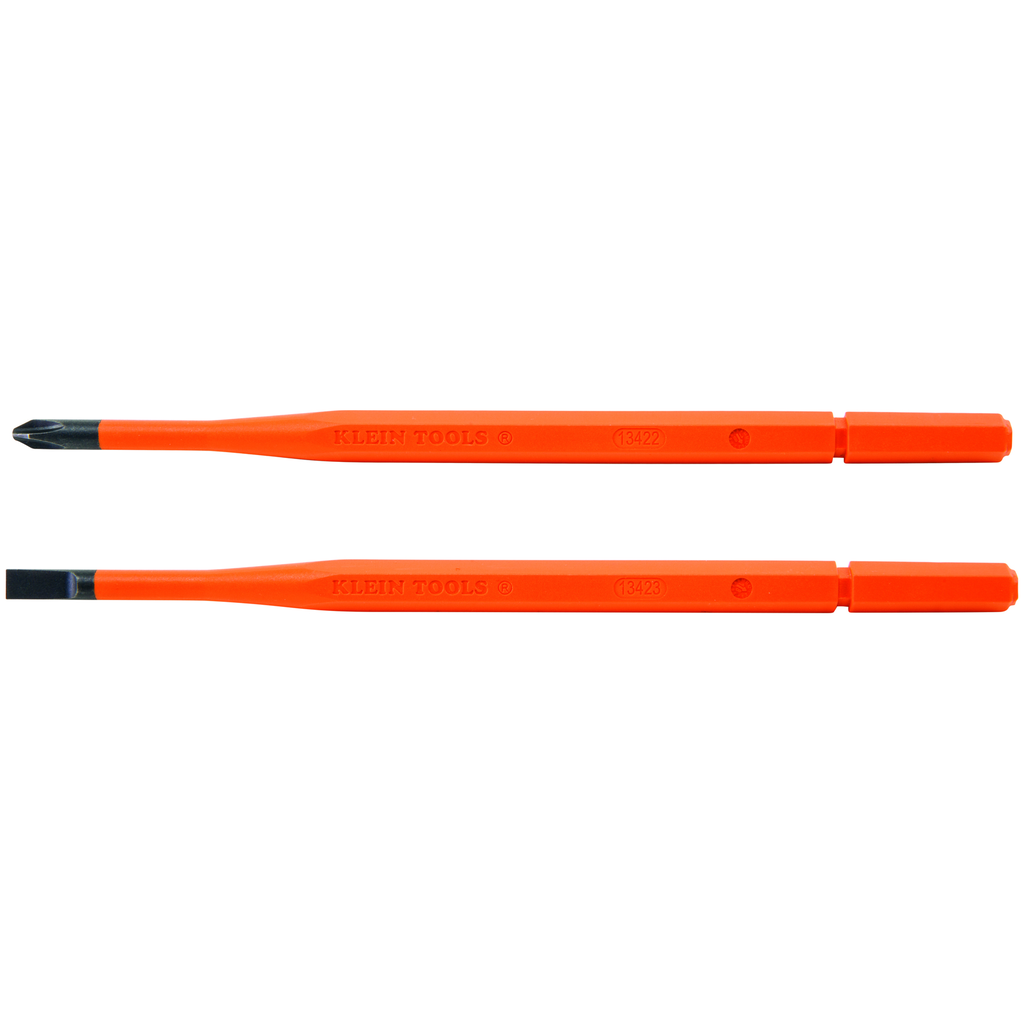

• Includes 2 single-ended blades: #2 Phillips and 1/4-Inch Slotted

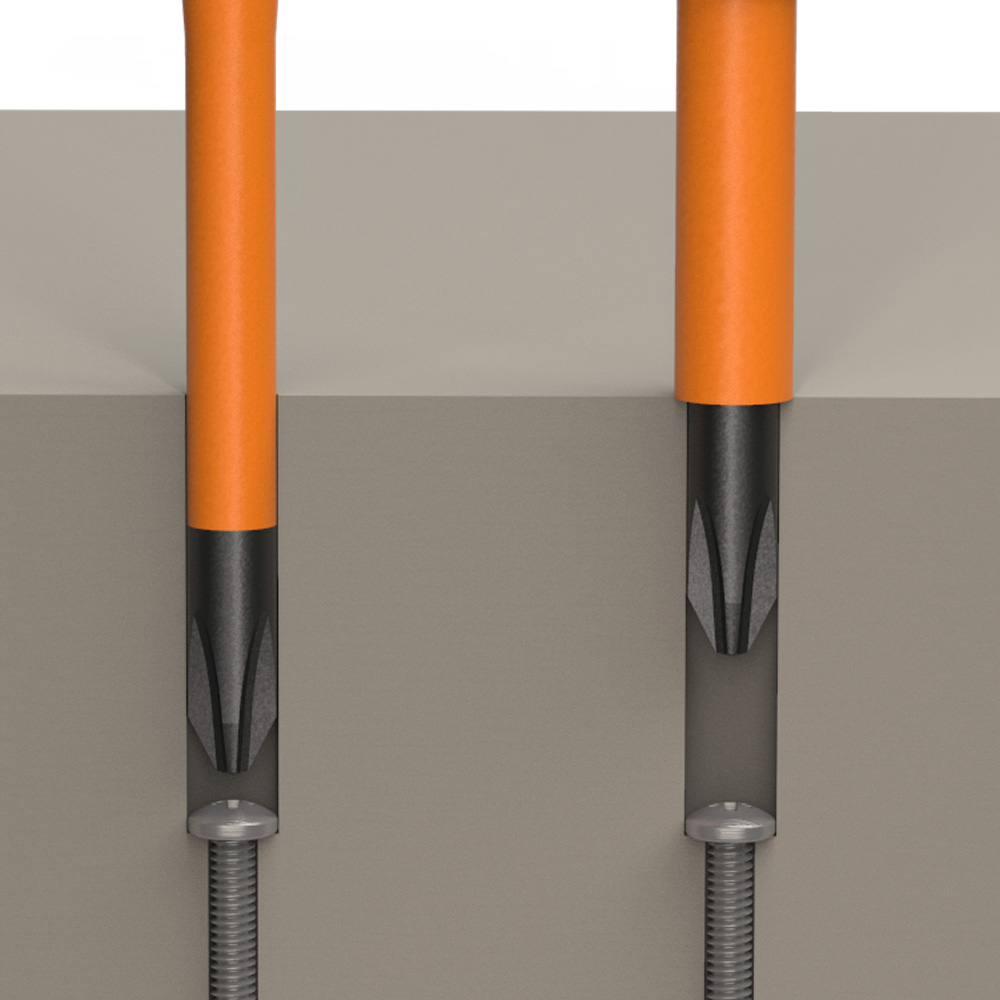

• Interchangeable insulated blades with a slim-tip to fit tight terminal blocks

Warnings

• Do NOT use screwdrivers to pry or chisel
• Always adhere to local and national safety codes; use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed
• Always inspect your tools before use, destroy tool if insulation becomes damaged in any way
• The insulated blade must be used with the Klein insulated handle in order for the tool to maintain insulation standard

Specifications

• Overall Length: 7.58 Inch (19.3 cm)
• Depth: 11.4600 in
• Width: 2.8100 in
• Weight: 0.2150 lbs
• Package Quantity: 2
• Overall Width: 0.9 cm (0.35 Inch)
• Material: Induction Hardened Steel
• Application: Work Near Energized Sources
• Type: Insulated Slotted/Phillips Screwdriver Blades
• Height: 0.6500 in
• For Use With: Cat. Nos. 32288, 32286, 32287, 32293
• Overall Height: 0.35 Inch (0.9 cm)
