Screwdriver Blades, Insulated Double-End, 3-Pack

Klein Tools' Insulated Interchangeable blades contain a bright orange coating of insulation that protects from electrical shock, as well as being flame and impact resistant. When the blades are used with the Klein Tools' insulated handle, the complete tool exceeds the ASTM F1505 standards for insulated tools, and are clearly marked with the official 1000-Volt rating symbol. These are replacement blades for the 8-in-1 Insulated Interchangeable Screwdriver Set (Cat. No. 32288) and the 2-in-1 Insulated Flip-Blade Screwdrivers (Cat. Nos. 32286, 32287, 32293).

Warnings

• The insulated blade must be used with the Klein insulated handle in order for the tool to maintain insulation standard
• Do NOT use screwdrivers to pry or chisel
• Always inspect your tools before use, destroy tool if insulation becomes damaged in any way
• Always adhere to local and national safety codes; use personal protective equipment to prevent shock and arc blast injury where hazardous live conductors are exposed

Features

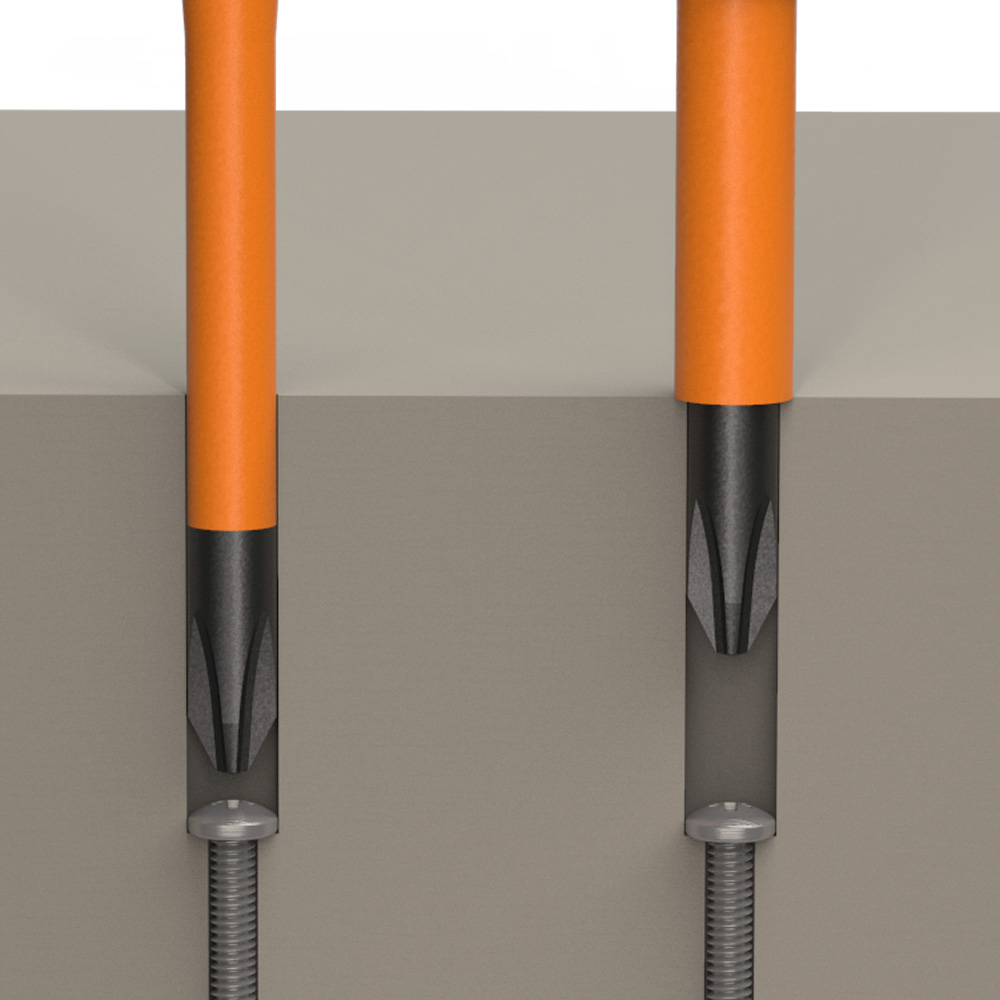

• Interchangeable insulated flip-blades with a slim-tip to fit tight terminal blocks
• For use with Klein Tools' Insulated Interchangeable Screwdrivers: Catalog Numbers 32286, 32287, 32288, 32293
• When used with Klein insulated handle, blades have a 1000-Volt insulation rating
• Double-ended blades have a 3.5-Inch shaft length out of handle
• Insulated

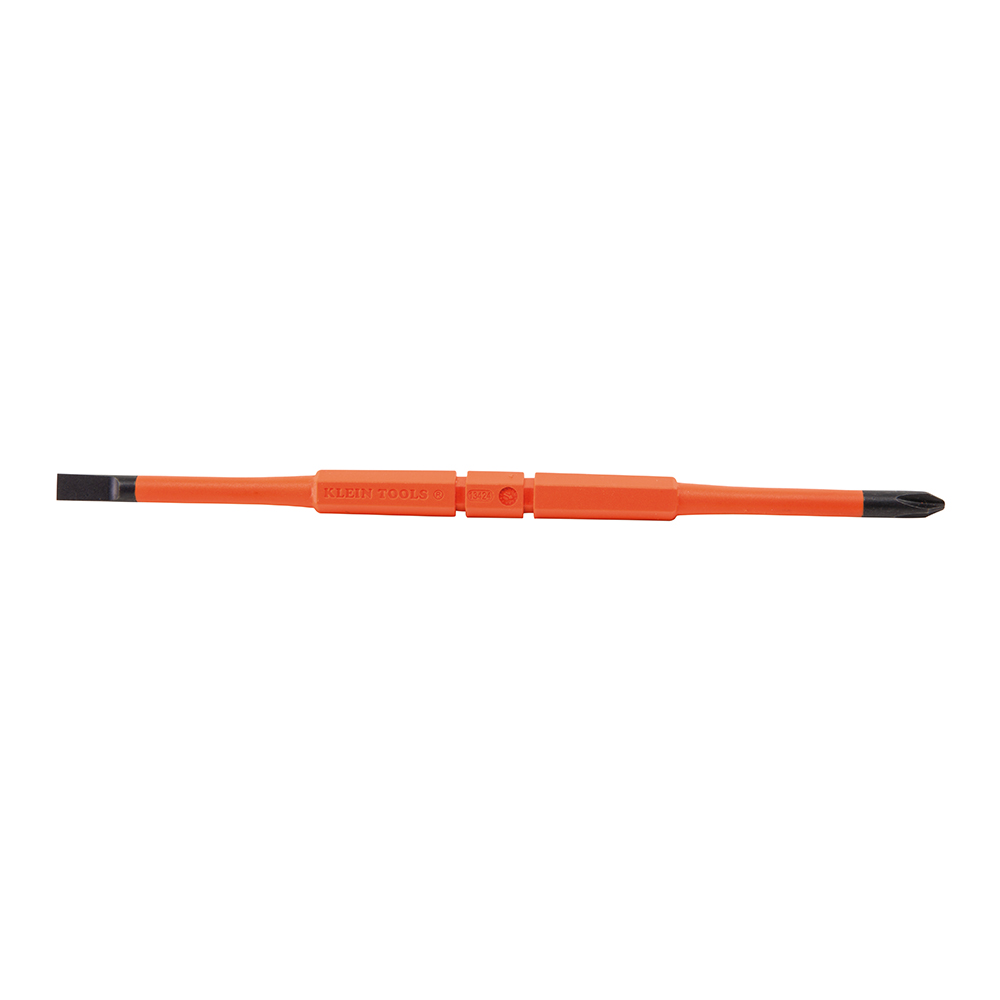

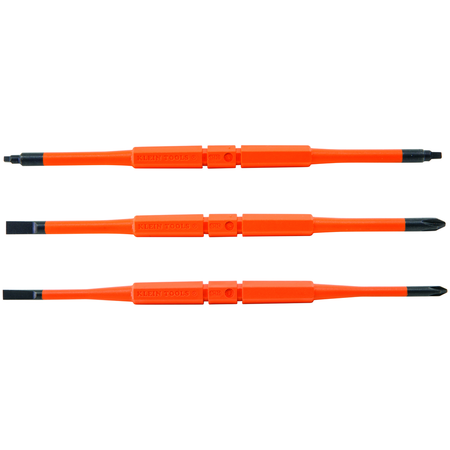

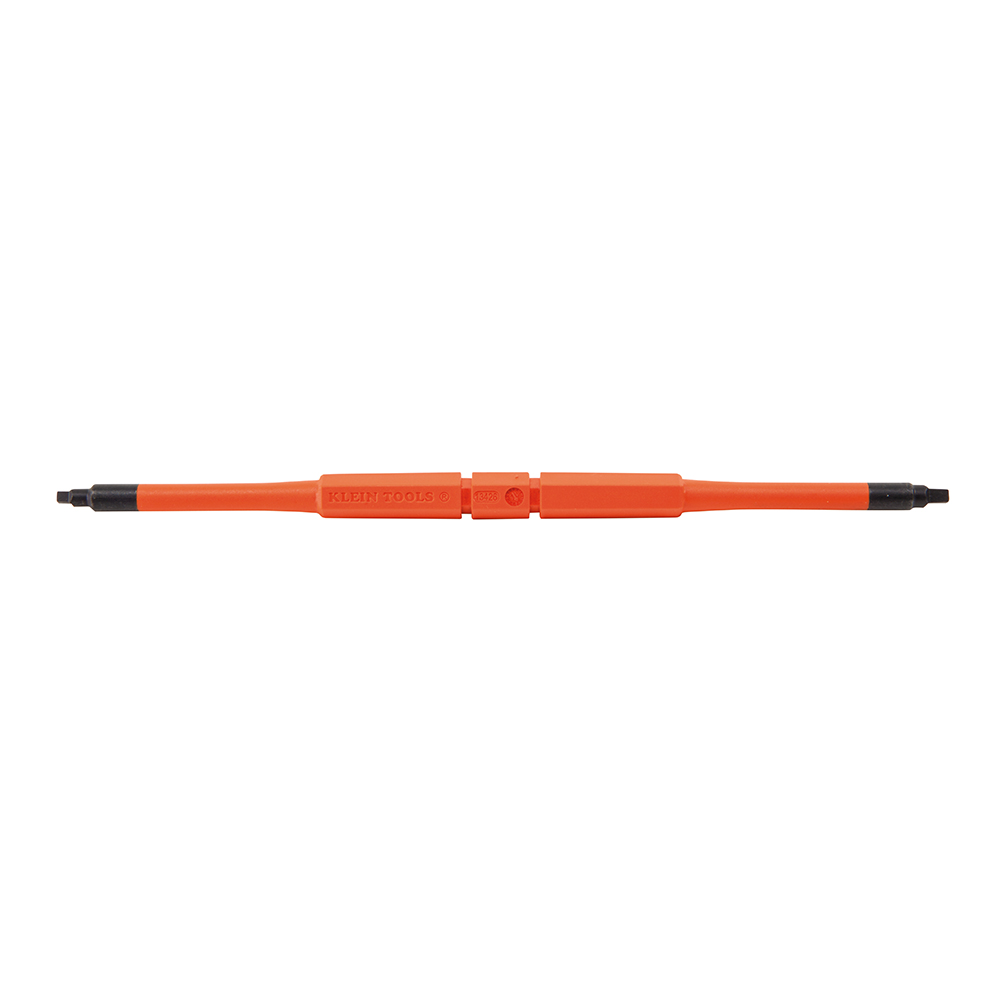

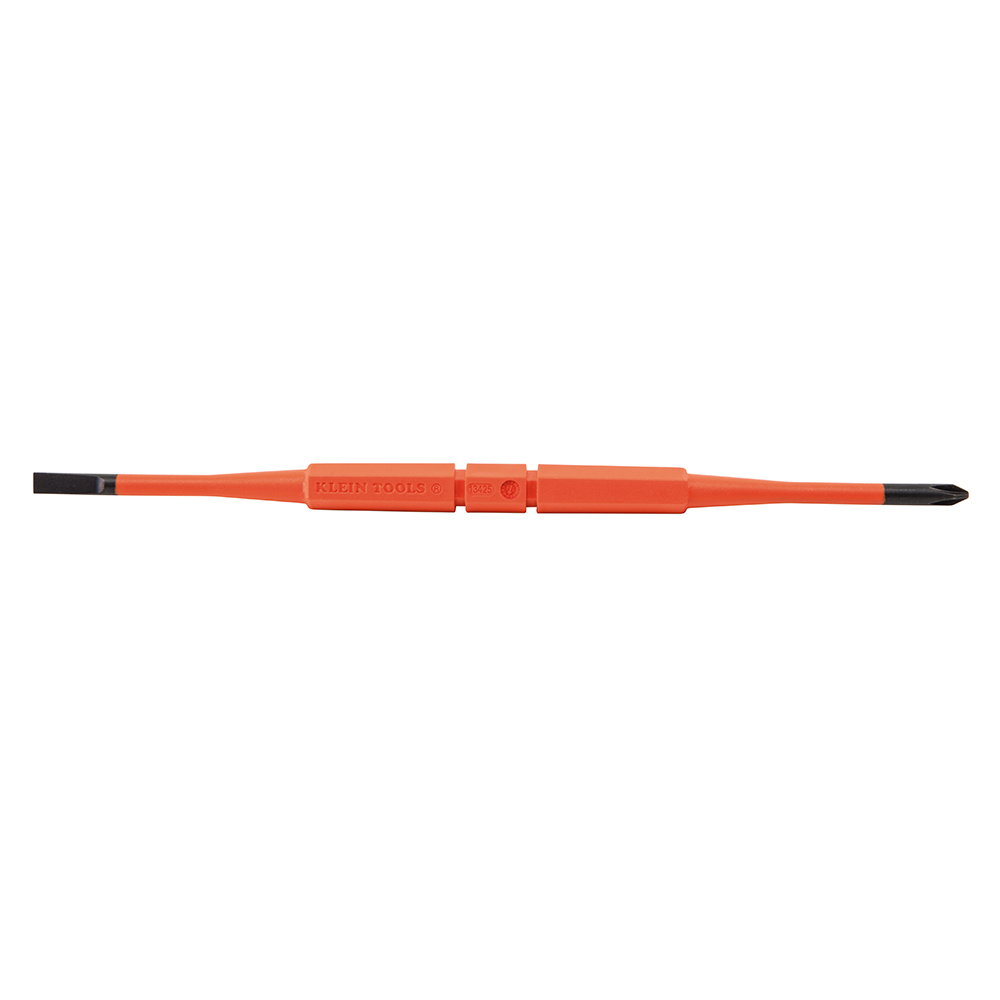

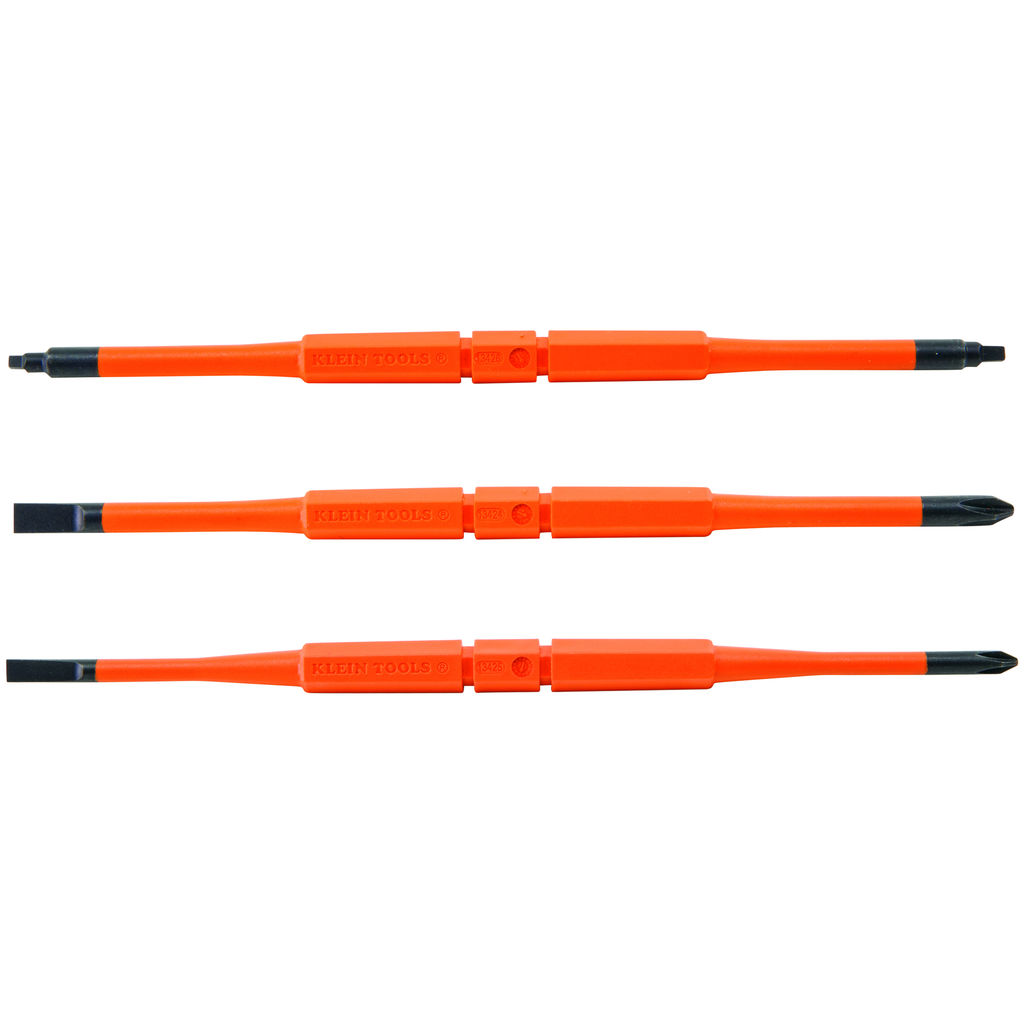

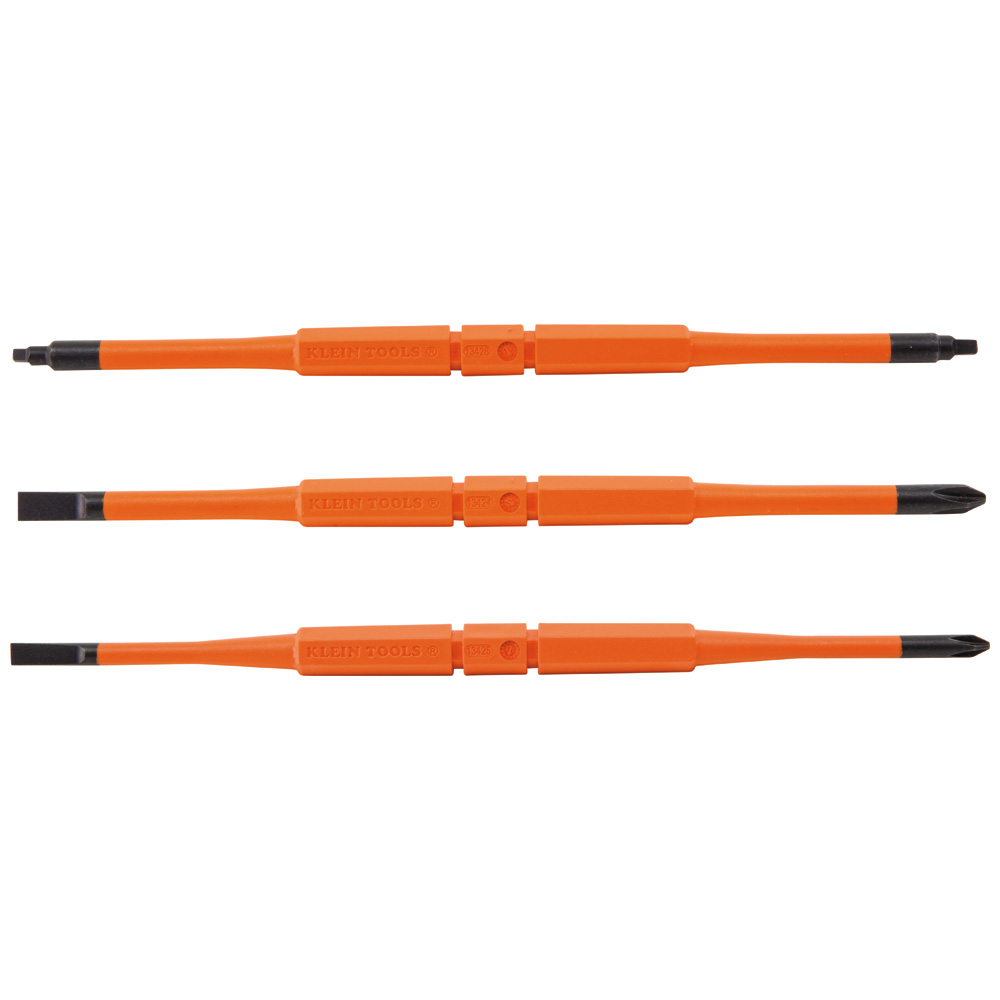

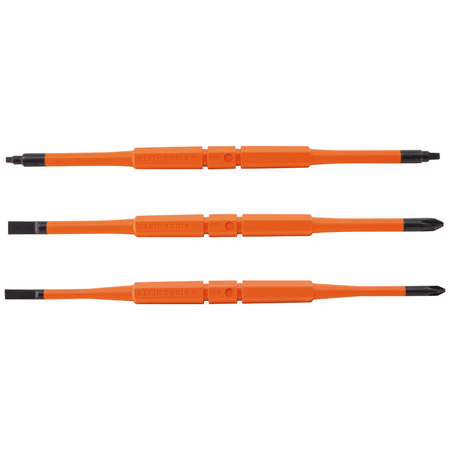

• Includes 3 double-ended blades: a #2 Phillips / 1/4-Inch Slotted; a #1 Phillips / 3/16-inch Slotted; and a #1 Square / #2 Square
• Handle with blade meets or exceeds ASTM F1505 standard for insulation
• A layer of orange impact and flame resistant insulation protects from electric shock

Specifications

• Type: Insulated Slotted/Phillips/Square Screwdriver Blades
• Tip Type: #2 Phillips / 1/4" Slotted; #1 Phillips / 3/16" Slotted; #1 Square / #2 Square
• Width: 2.8100 in
• Package Quantity: 3
• Country of Origin: Slovenia
• Item: Multi-Bit
• For Use With: Cat. Nos. 32288, 32286, 32287, 32293
• Overall Length: 7.48" (19.0 cm)
• Depth: 11.4600 in
• Overall Height: 0.35" (0.9 cm)
• Weight: 0.2890 lbs
• Height: 0.6500 in
• Material: Induction Hardened Steel
• Application: Work Near Energized Sources
• Overall Width: 0.35" (0.9 cm)
