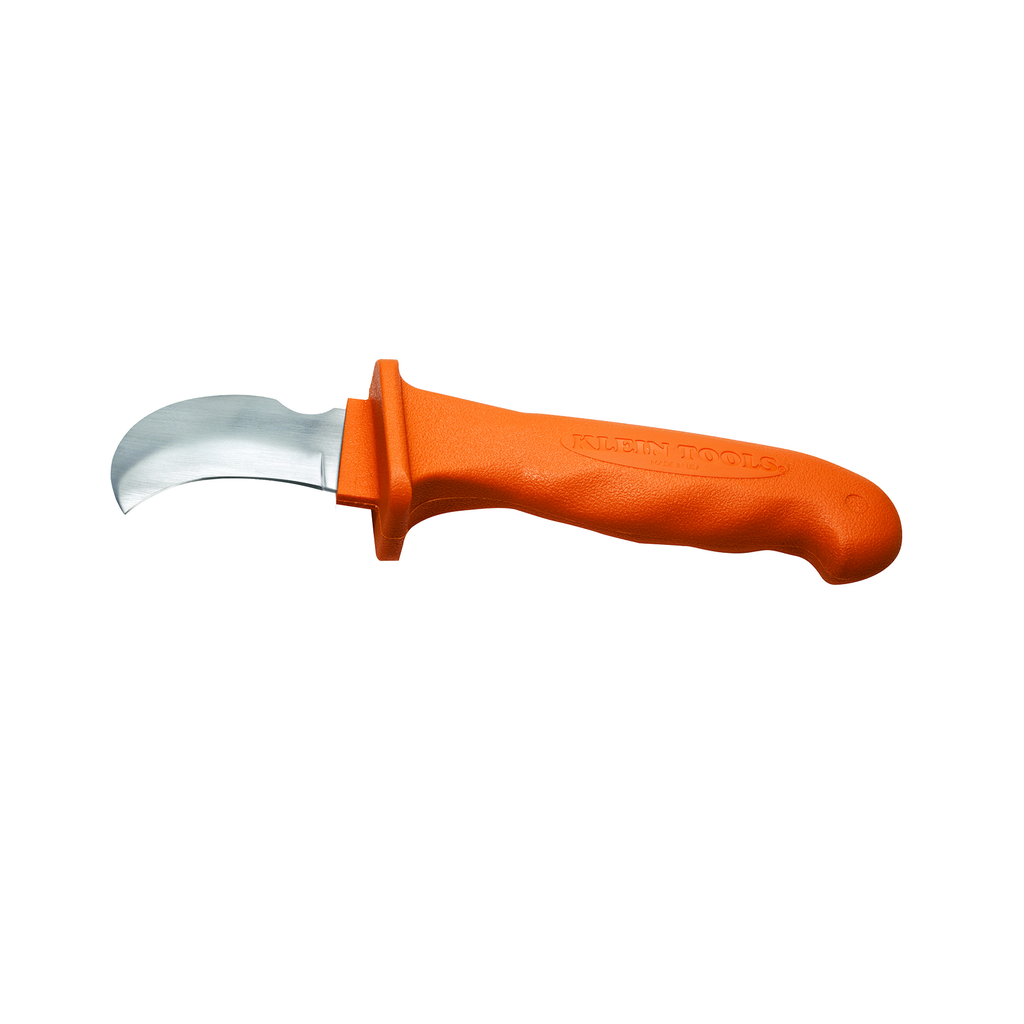

Lineman's Skinning Knife, Insulated

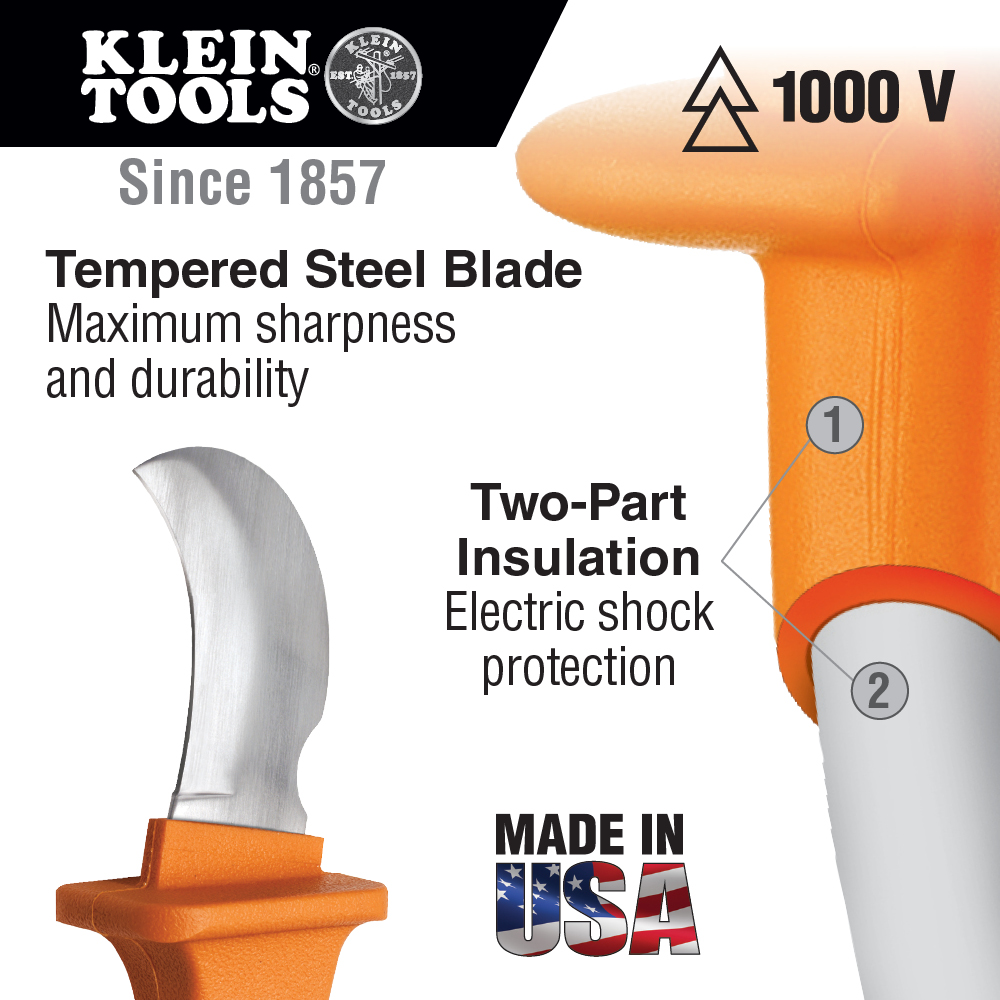

The exclusive design features dual-layer insulation for safety. The high-dielectric white inner layer is bonded to the tool while the outer orange layer is flame retardant and serves as a visual warning if the tool has been compromised. The insulated handle is molded for comfort and also features marks on the back to help measure the stripping length of wire. The blade is made of stainless steel for durability and corrosion resistance.

Warnings

• Only use tools that are marked with the official international 1000-volt rating symbol if there is any chance that the tools will make contact with an energized source.
• Do NOT touch uninsulated portion of the tool or any conductive object when either might contact an energized source.
• Keep tool clean, dry and free of any surface contaminants.
• Whenever possible, always de-energize lines and equipment prior to working on or around them. Klein insulated tools are designed only to reduce the chance of injury where the tool may make contact with an energized source.
• Always inspect your tools before use. Destroy tool if insulation becomes damaged in any way.
• Always wear approved eye protection.

Features

• Measuring Marks on Handle
• Made in USA
• VDE certified
• Replaces Catalog Number 1571-3LR-INS
• Tough, tempered steel blade provides maximum sharpness and durability to withstand frequent cable scoring
• Large molded handle for an easier, more comfortable grip
• Meets or exceeds ASTM F1505-10, IEC 60900:2012, CAN/ULC-60900-09, NFPA-70E, 2012 ed. CSA Z462-08
• Klein's exclusive design features molded measuring marks on back of handle to help measure stripping length of wire

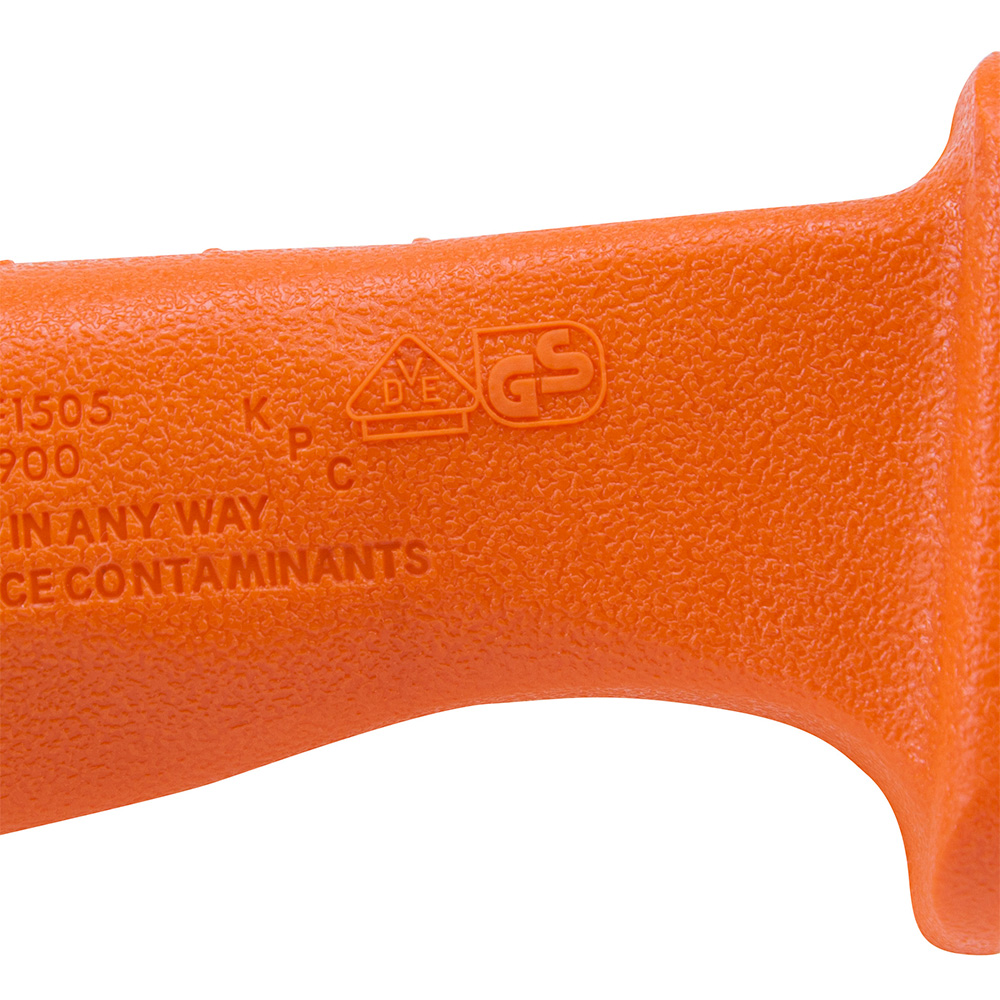

• Durable two-layer insulation clearly marked with the official 1000-volt rating symbol

Specifications

• Weight (oz): 5.6
• Blade Material: 1095 Steel
• Handle Material: High-Dielectric Plastic
• Width: 2.4750 in
• Overall Length (cm): 22.2
• Weight (g): 159
• Weight: 0.3500 lbs
• Height: 1.3500 in
• Handle Color: Orange
• Handle Finish: 2-Layer Insulation
• Insulated: Yes
• Blade Length (Inch): 2.375
• Standard: ASTM F1505-10, IEC 60900:2012, CAN/ULc-60900-09, NFPA-70E, 2012 Ed. CSA Z462-08
• Blade Length (cm): 6
• Application: Cable Scoring and Cutting
• Overall Length (Inch): 8.75
• Depth: 8.7500 in
