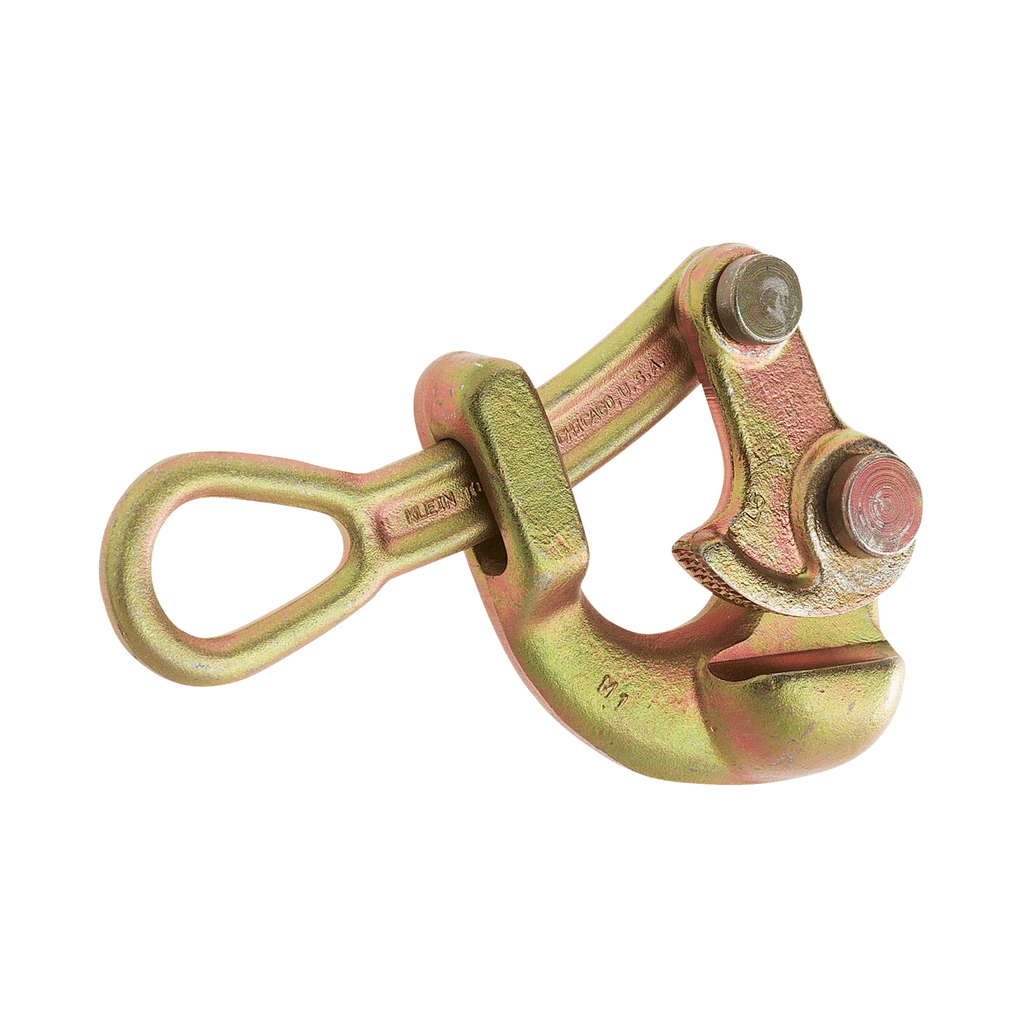

Haven's® Cable Grip 0.25-Inch Capacity

Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA

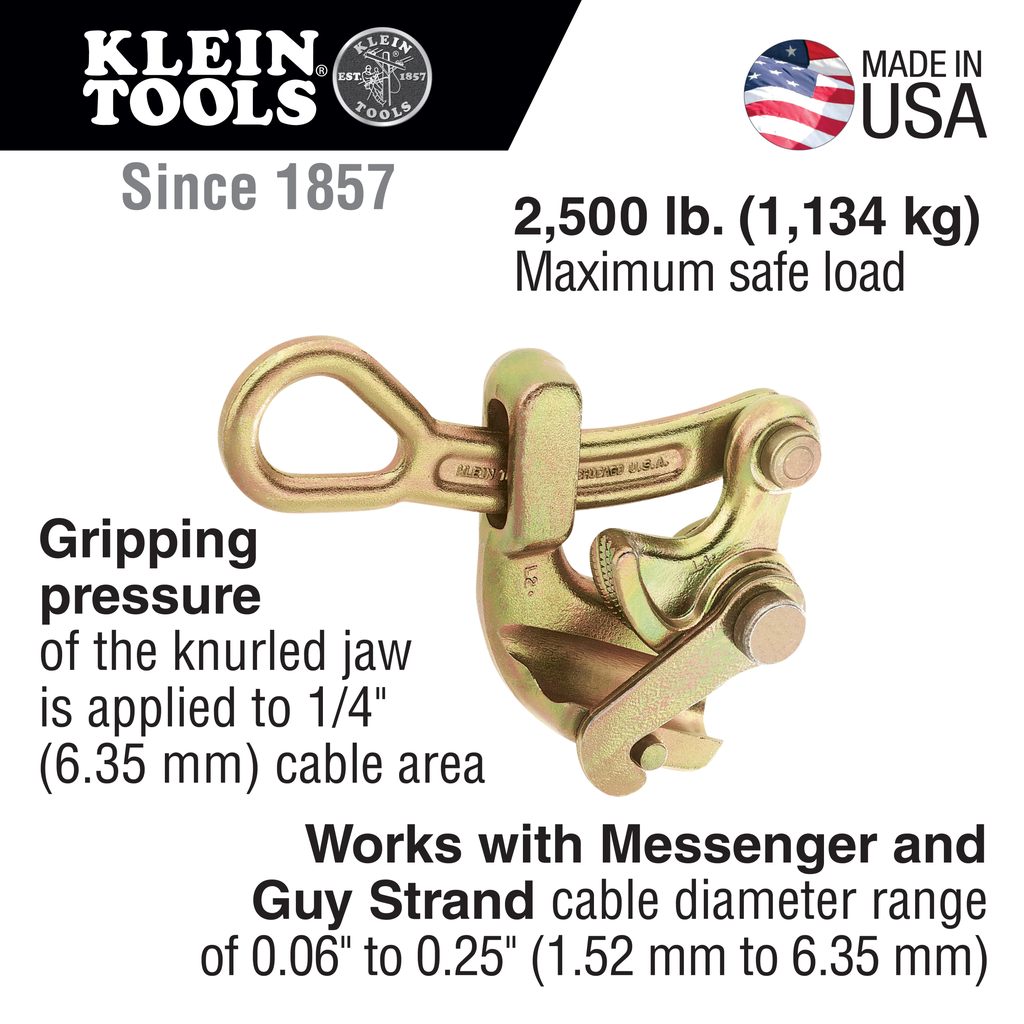

• Works with Messenger and Guy Strand cable diameter range of 0.06-Inch to 0.25-Inch (1.52 mm - 6.35 mm)
• Approximate weight of each is 1-pound
• Maximum safe load of 2,500-Pound (1,134 kg)

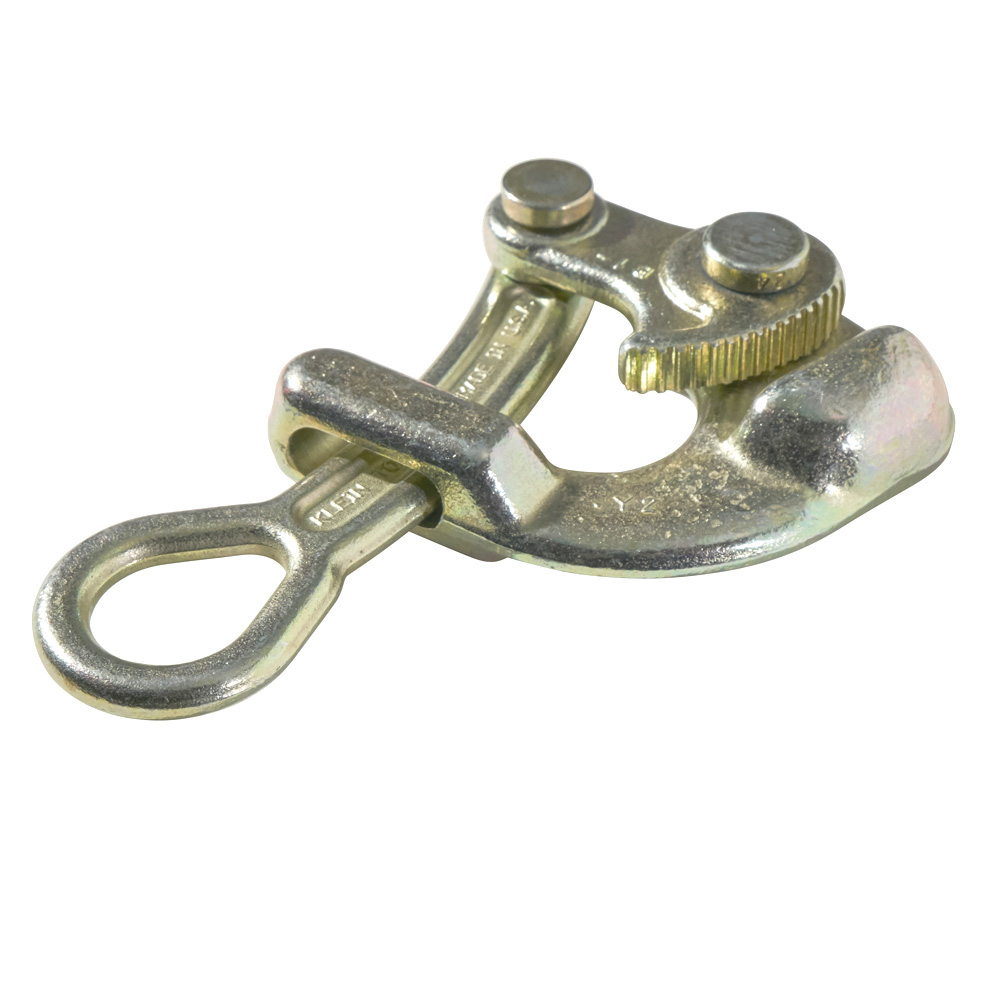

• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when light, compact grip is desired and where conductor damage is not a factor

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.

Specifications

• Overall Length (Inch): 6.5
• Weight: 0.8460 lbs
• Width: 2.7000 in
• Depth: 5.8500 in
• Maximum Safe Load (kg): 1134
• Cable Diameter: 0.06" to 0.25" (1.52 to 6.35 mm)
• Spring: No
• Material: Steel
• Weight (lb): 0.95
• Swing Latch: No
• Weight (kg): 0.4
• Jaw Length (Inch): 0.25
• Teeth Type: Aggressive
• Height: 0.9000 in
• Jaw Type: Curved
• Hot Latch: No
• Type: Haven's Grip
• Overall Length (cm): 16.5
• Locking Handle: No
• Jaw Length (cm): 0.6
• Application: Wire Pulling
• Maximum Safe Load (lb): 2500
• Cable Type: EHS, Guy Strand, Messenger
