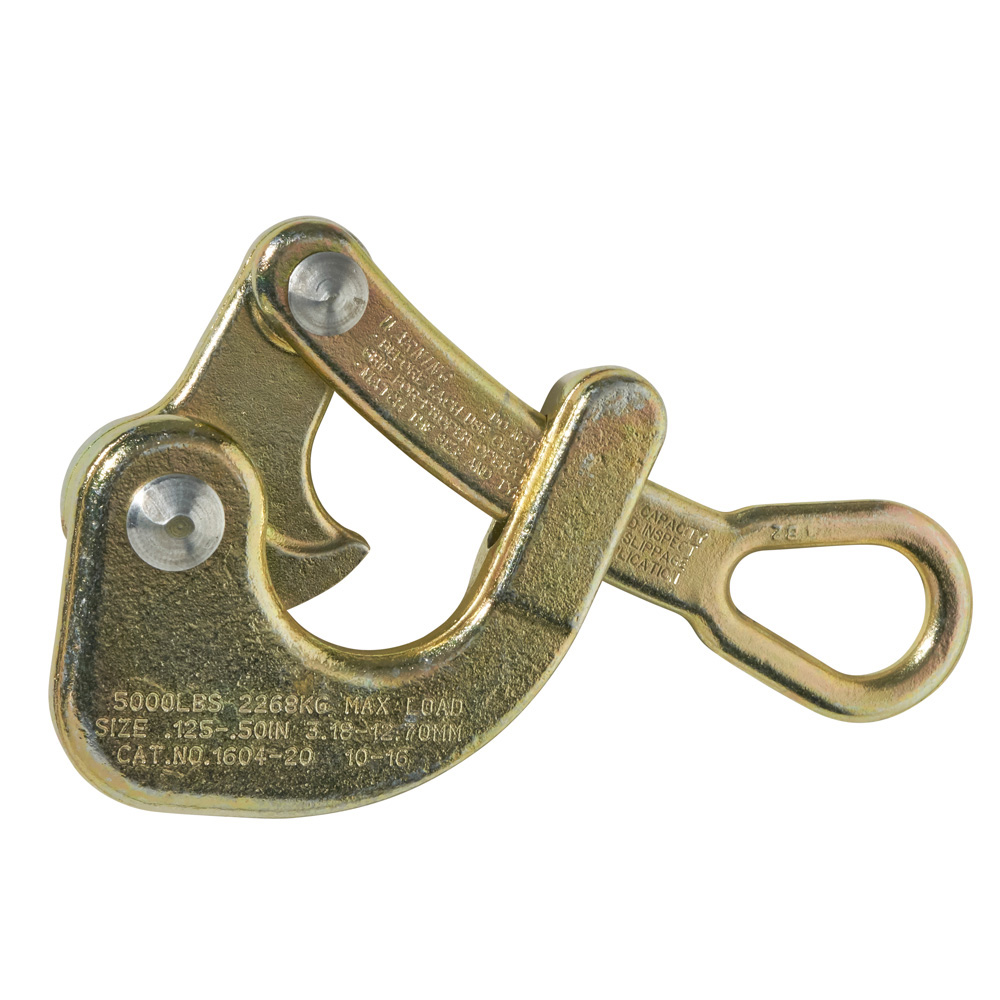

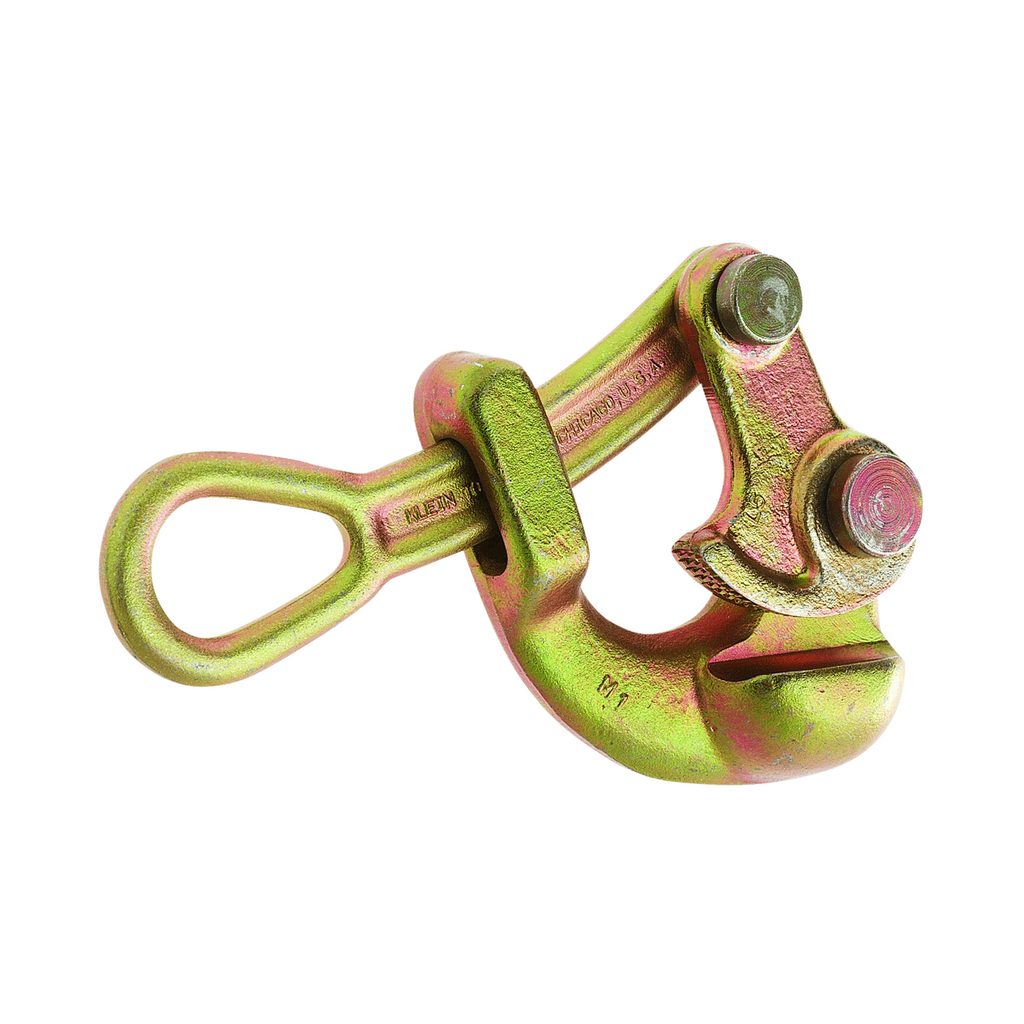

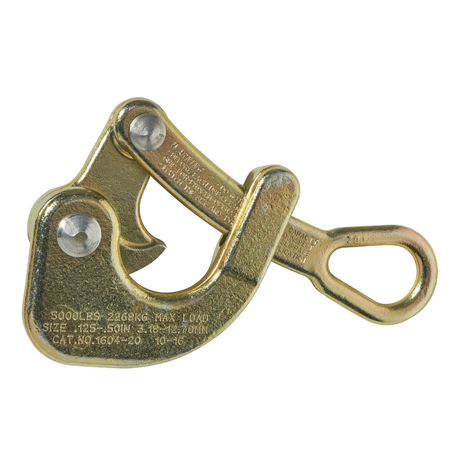

Haven's® Cable Grip 0.5-Inch Capacity

Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

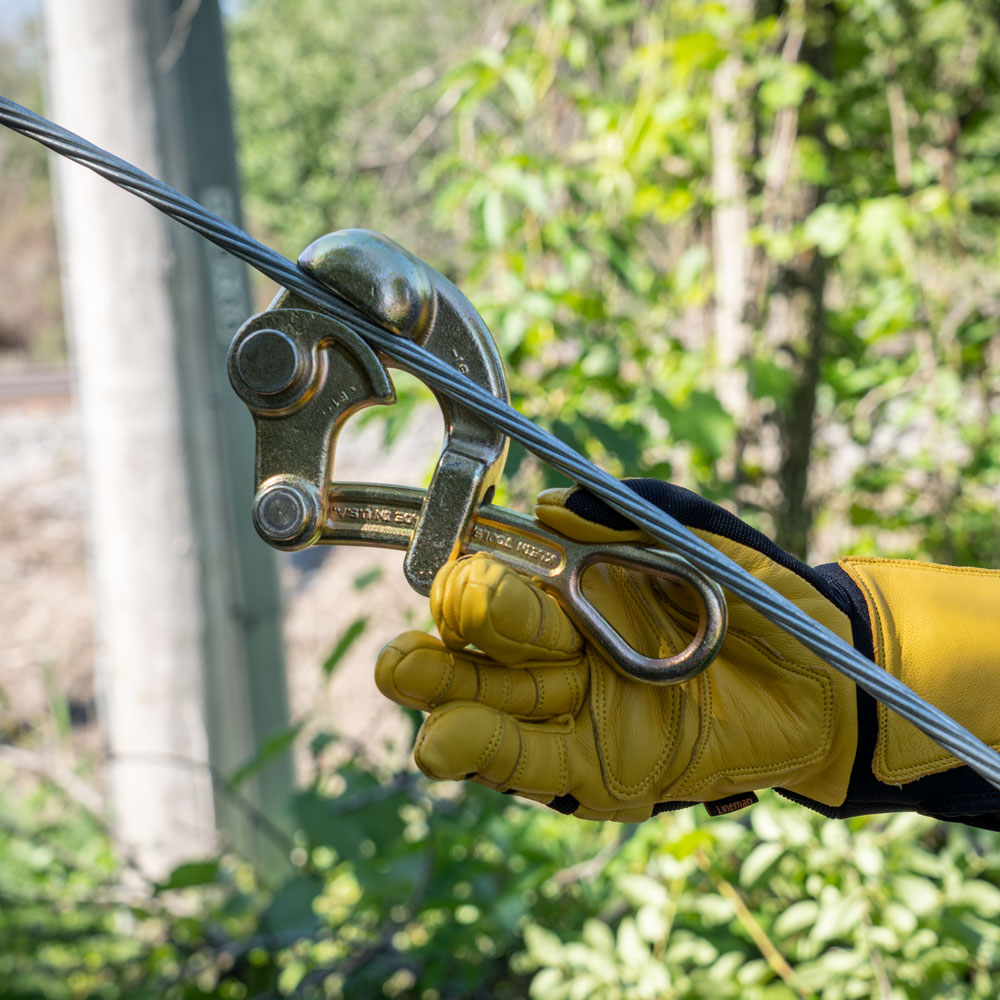

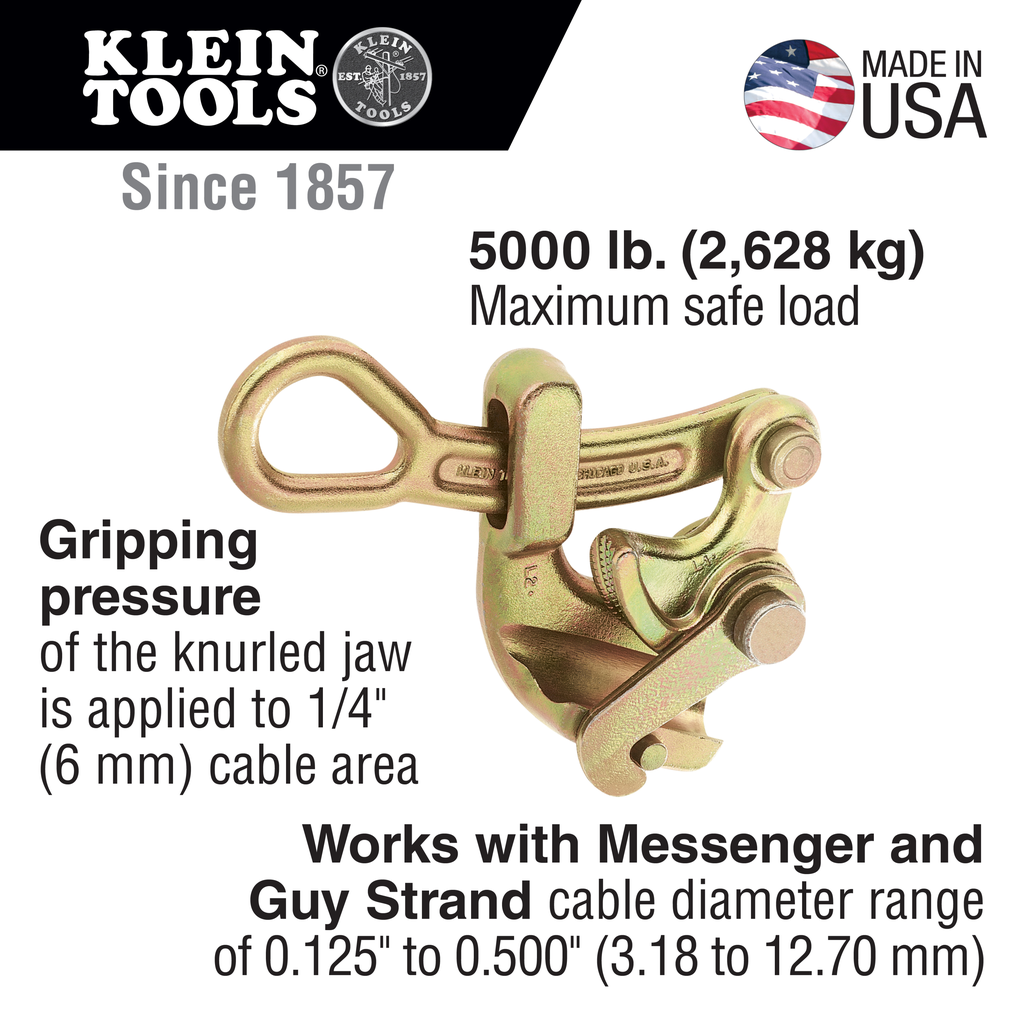

• Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)
• Made in USA
• Rigorously tested and pulled to rated load to ensure the highest quality and reliability

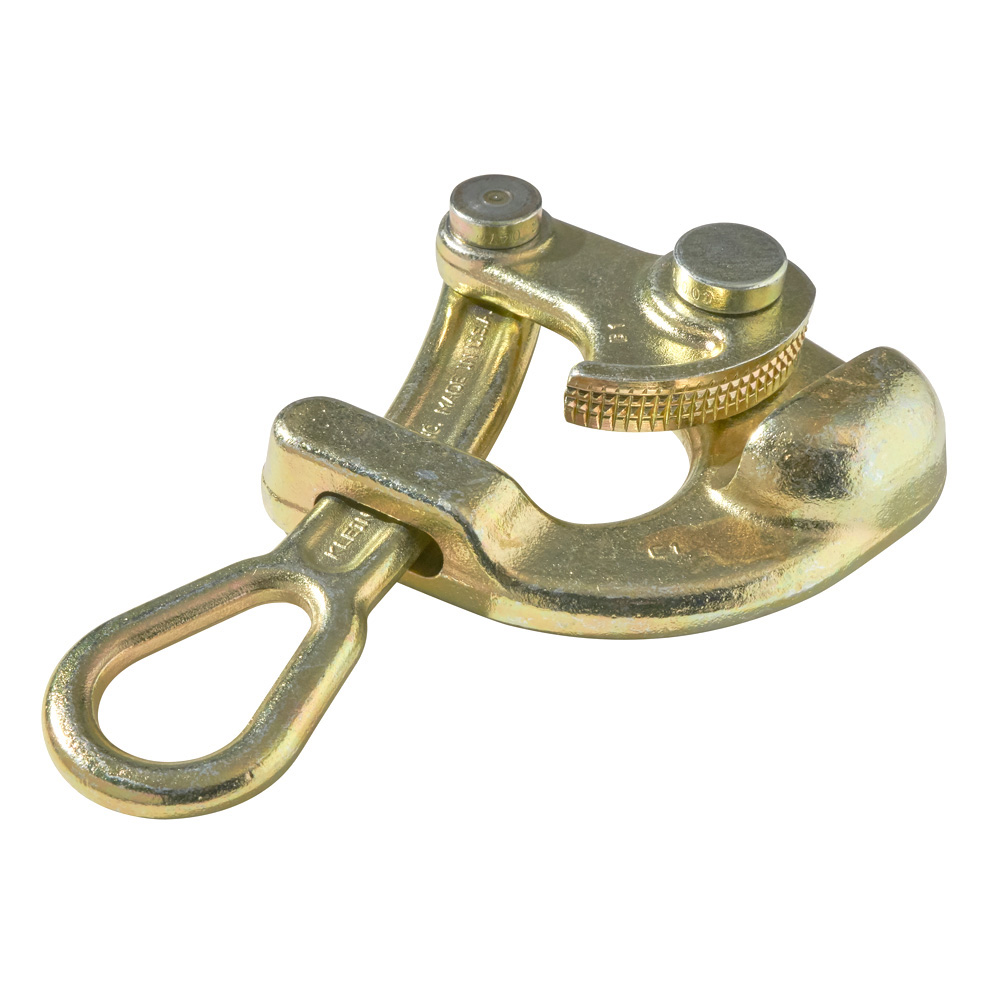

• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when light, compact grip is desired and where conductor damage is not a factor
• Individually hand inspected and actuated for proper function
• Maximum safe load of 5000-Pound (2268 kg)

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Overall Height (cm): 9.5
• Overall Height (Inch): 3.75
• Application: Wire Pulling
• Swing Latch: No
• Jaw Length (Inch): 0.25
• Maximum Safe Load (kg): 2268
• Overall Length (cm): 22.2
• Width: 4.3920 in
• Depth: 7.6500 in
• Weight (kg): 1
• Teeth Type: Aggressive
• Weight (lb): 2.2
• Weight: 2.2140 lbs
• Jaw Length (cm): 0.6
• Type: Haven's Grip
• Material: Steel
• Overall Width (Inch): 1.75
• Cable Diameter: 0.125" to 0.5" (3.18 to 12.7 mm)
• Hot Latch: No
• Overall Width (cm): 4.4
• Maximum Safe Load (lb): 5000
• Height: 1.6920 in
• Spring: No
• Jaw Type: Curved
• Cable Type: EHS, Guy Strand, Messenger
• Overall Length (Inch): 8.75
• Locking Handle: No
