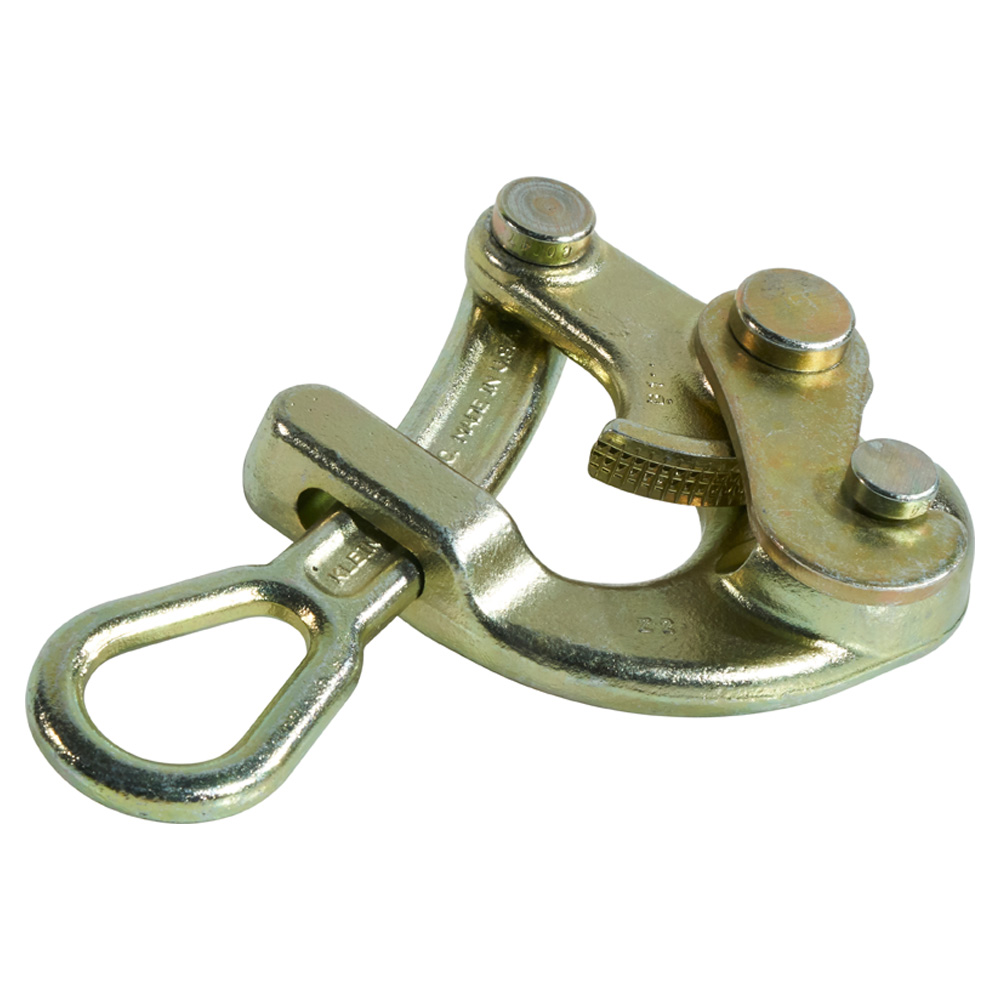

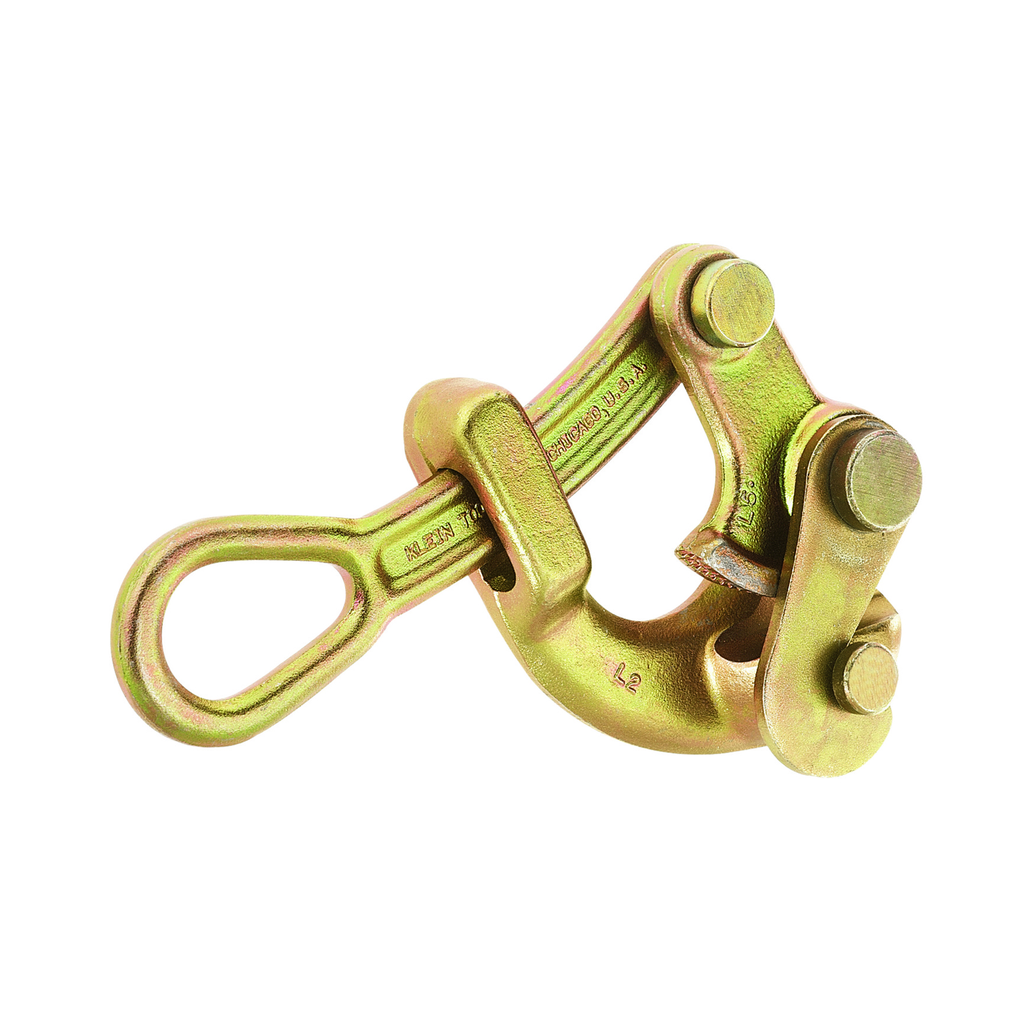

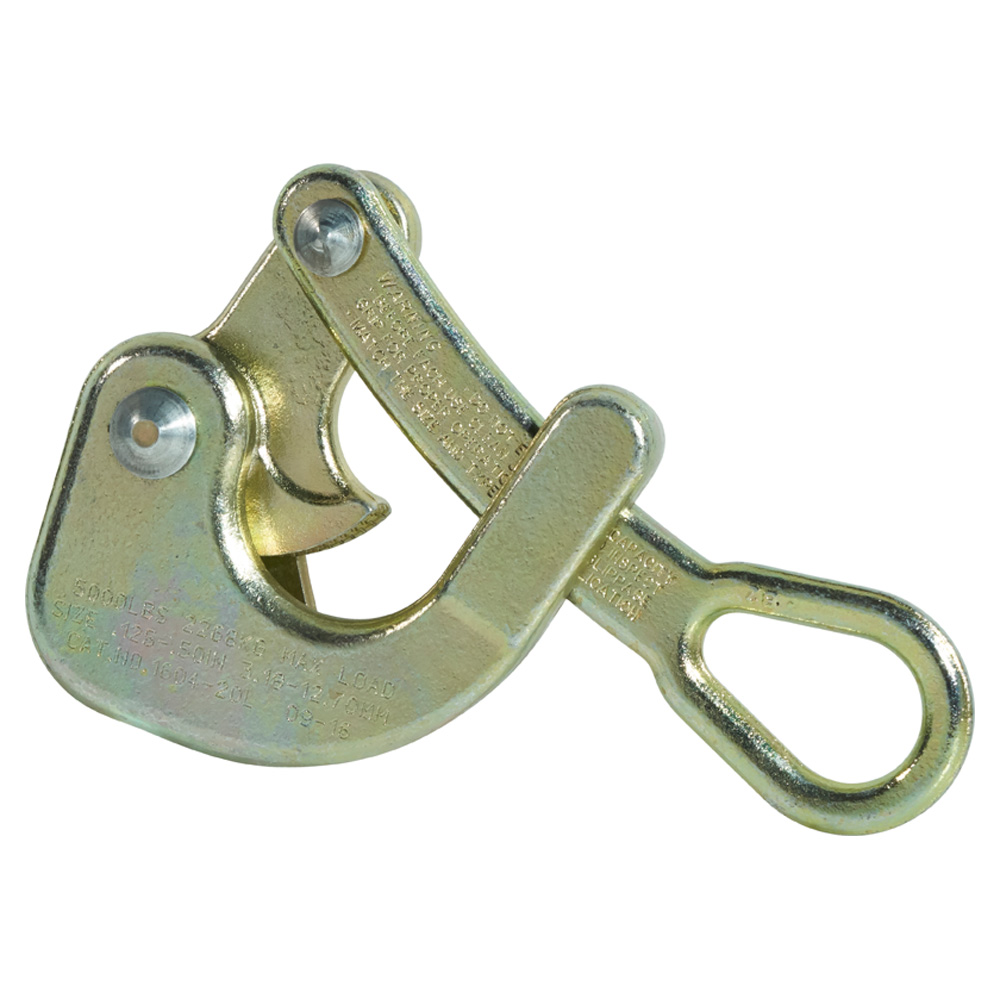

Haven's® Grip with Swing Latch

Klein Tools' 1604 Series Messenger and Guy Strand Haven's® Grips are designed for use when a light, compact grip is desired, and where cable deformation is not a factor. They are recommended for use with steel strand cables. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

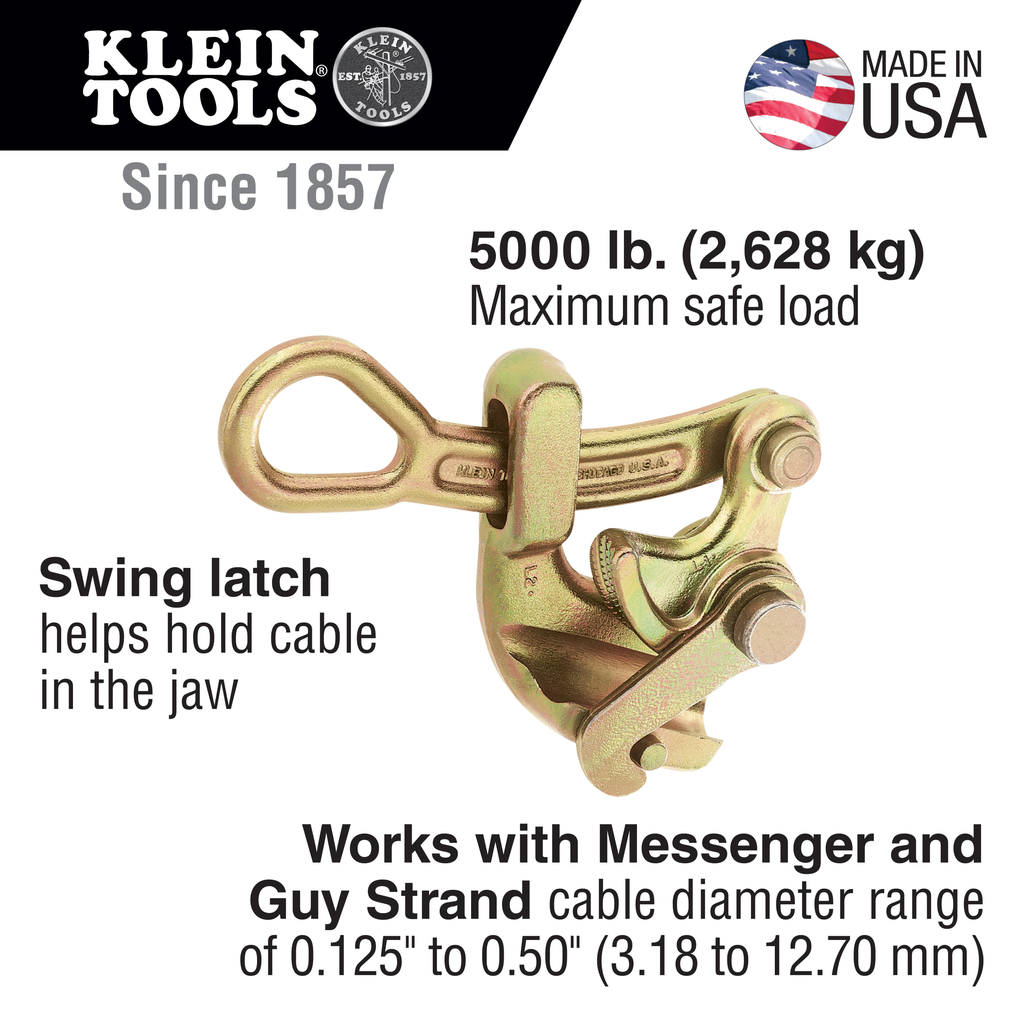

• Swing latch helps hold cable in the jaw; maximum safe load is 5000-Pound (2268 kg)
• Made in USA
• Gripping pressure of the knurled jaw is applied to 1/4-Inch (6.35 mm) cable area
• Designed for use when a light, compact grip is desired and where conductor damage is not a factor
• Works with Messenger and Guy Strand cable diameter range of 0.125 to 0.500-Inch (3.18 to 12.70 mm)

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• Do not exceed rated capacity.

Specifications

• Spring: No
• Cable Diameter: 0.125" to 0.5" (3.18 to 12.7 mm)
• Overall Width (cm): 4.4
• Type: Haven's Grip
• Swing Latch: Yes
• Weight (lb): 2.6
• Overall Length (cm): 22.2
• Overall Height (cm): 9.9
• Overall Width (Inch): 1.75
• Maximum Safe Load (kg): 2268
• Cable Type: EHS, Guy Strand, Messenger
• Jaw Type: Curved
• Teeth Type: Aggressive
• Application: Wire Pulling
• Weight: 0.1000 lbs
• Overall Length (Inch): 8.75
• Weight (kg): 1.2
• Hot Latch: No
• Jaw Length (Inch): 0.25
• Material: Steel
• Width: 4.7500 in
• Locking Handle: No
• Overall Height (Inch): 3.88
• Depth: 6.3000 in
• Maximum Safe Load (lb): 5000
• Height: 1.7600 in
• Jaw Length (cm): 0.6
