Grip for Weatherproof Wire 0.40-Inch Capacity

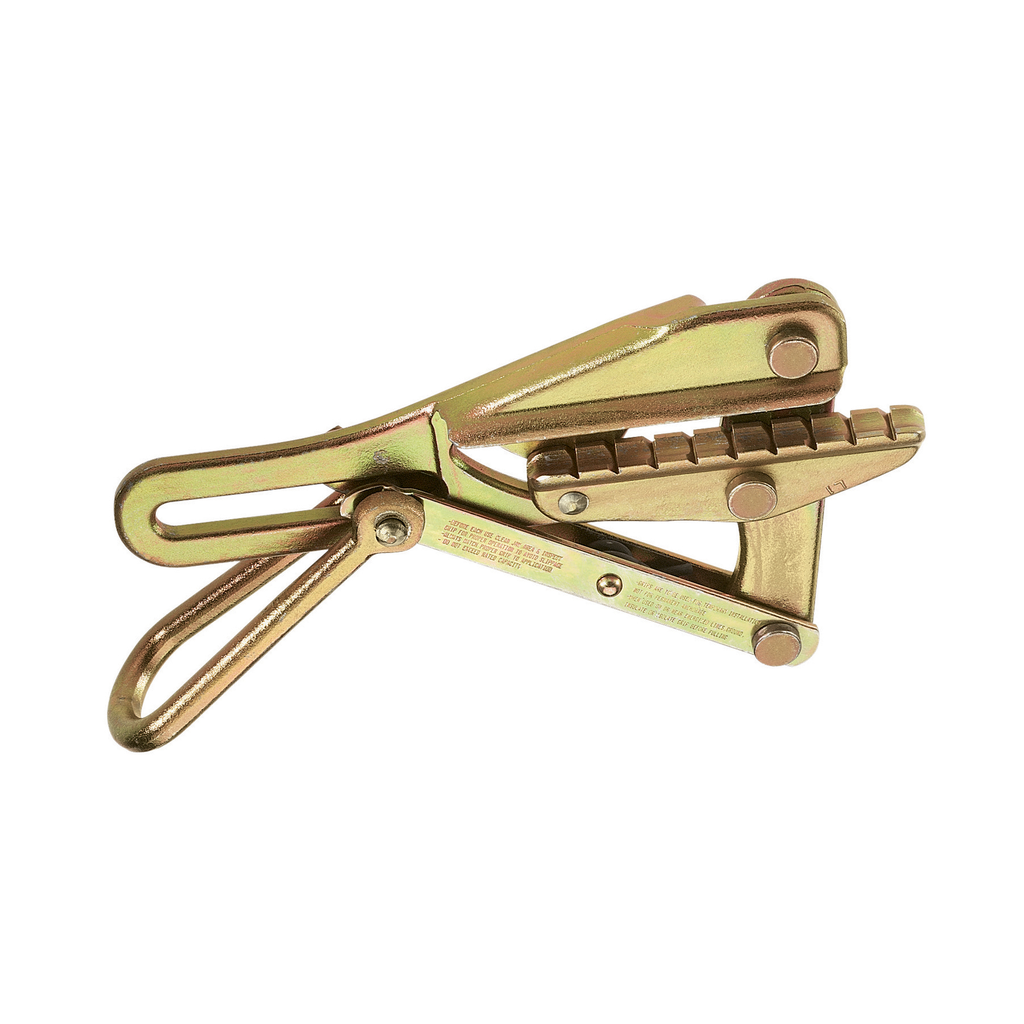

Klein Tools' 1611 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Manufactured from drop-forged, heat-treated steel for excellent durability
• Notches in jaw provide firm grip on insulation
• Weatherproof
• Made in USA
• Round inside jaw contour for weatherproof coated wire

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.

Note

• Due to various types of weatherproof coatings available, selection of proper grips is determined by outside diameter of cable

Specifications

• Swing Latch: No
• Jaw Type: Round
• Weight (lb): 2.6
• Height: 1.9170 in
• Depth: 7.6500 in
• Spring: Yes
• Weight (kg): 1.2
• Material: Steel
• Jaw Length (Inch): 4.188
• Cable Type: Copper, ACSR, AAC
• Weight: 2.6100 lbs
• Application: Wire Pulling
• Locking Handle: Yes
• Maximum Safe Load (lb): 4500
• Maximum Safe Load (kg): 2041.2
• Width: 3.8250 in
• Jaw Length (cm): 10.6
• Hot Latch: No
• Teeth Type: Notched
• Cable Diameter: 0.2" to 0.4" (5.08 to 10.16 mm)
• Type: Chicago Grip
