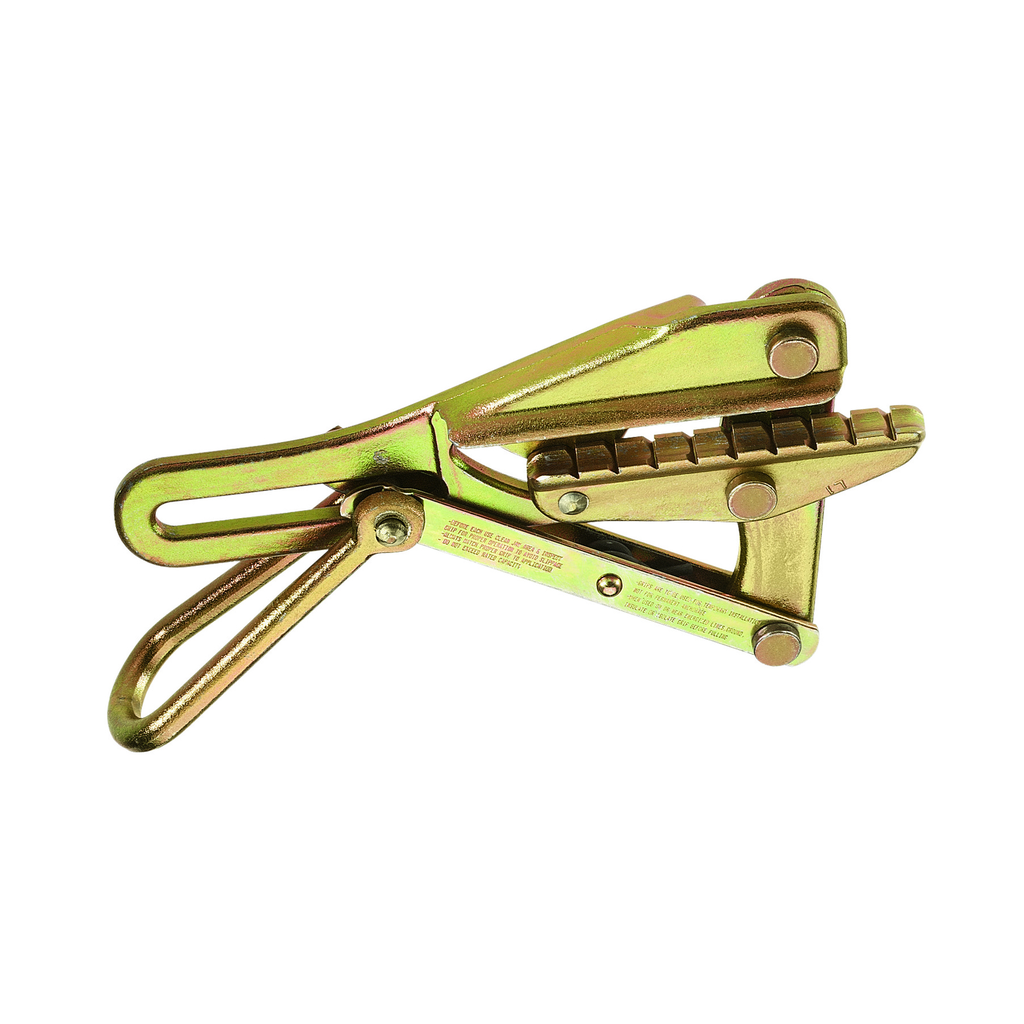

Grip for Weatherproof Wire 0.53-Inch Capacity

Klein Tools' 1611 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Warnings

• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Features

• Max Safe Load of 4500-Pound (2041 kg)
• Round inside jaw contour for weatherproof coated copper wire
• Manufactured from drop-forged, heat-treated steel for excellent durability
• Notches in jaw provide firm grip on insulation
• Made in USA
• Weatherproof

Specifications

• Weight (kg): 1.5
• Teeth Type: Notched
• Type: Chicago Grip
• Jaw Length (Inch): 4.75
• Height: 1.5750 in
• Swing Latch: No
• Hot Latch: No
• Cable Diameter: 0.31" to 0.53" (7.87 to 13.46 mm)
• Application: Wire Pulling
• Width: 3.3750 in
• Weight (lb): 3.4
• Spring: Yes
• Weight: 3.4020 lbs
• Maximum Safe Load (lb): 4500
• Locking Handle: Yes
• Maximum Safe Load (kg): 2041.2
• Cable Type: Copper, ACSR, AAC
• Jaw Type: Round
• Jaw Length (cm): 12.1
• Material: Steel
• Depth: 8.1000 in
