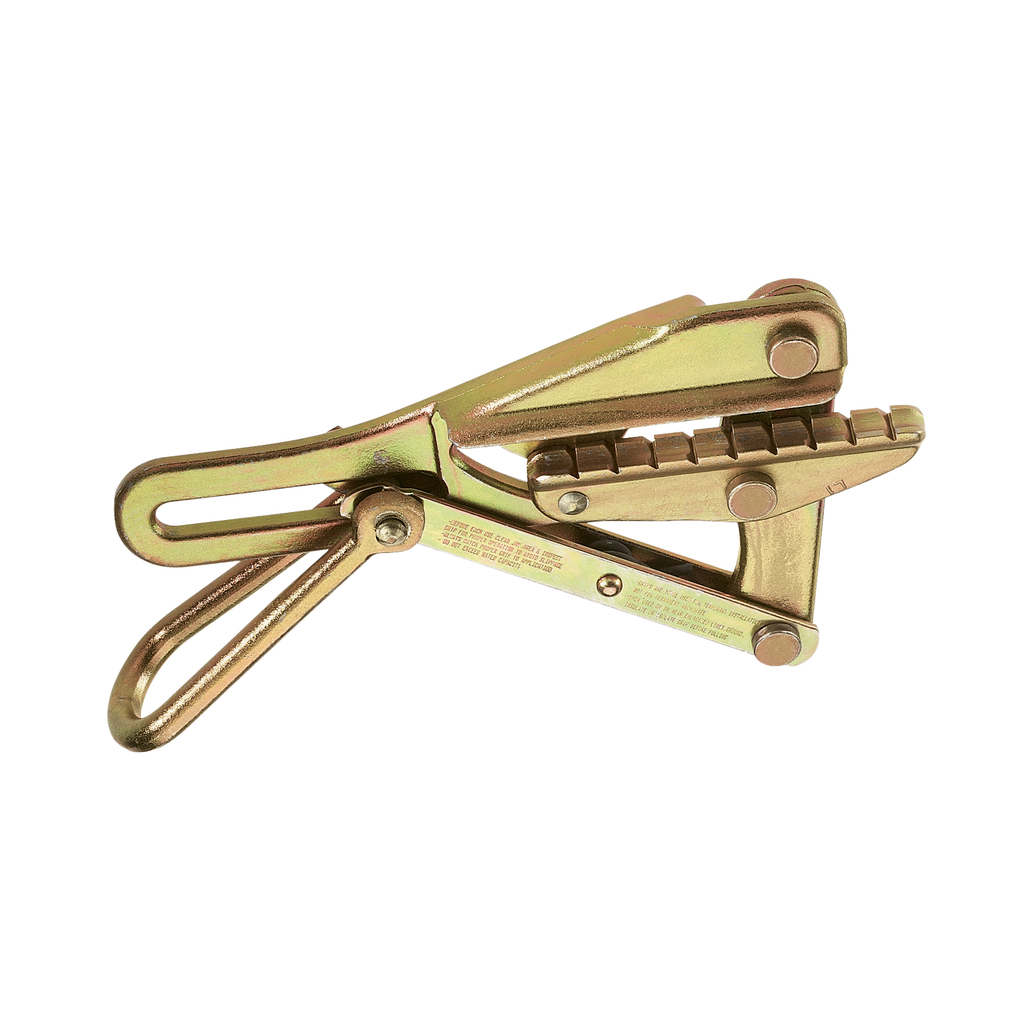

Chicago® Grip for Weatherproof Wire

Klein Tools' 1611 Series Chicago Grips have a round inside jaw contour designed to hold weatherproof strand and solid coated wire. They also have a notched jaw to provide a firm grip on insulation. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Notches in jaw provide firm grip on insulation
• Weatherproof
• Round inside jaw contour for weatherproof coated wire
• Works with 0.74 to 0.86-Inch (18.80 to 21.84 mm) cable diameter range
• Max Safe Load of 8000-Pound (3629 kg)

Note

• Due to various types of weatherproof coatings available, selection of proper grips is determined by outside diameter of cable

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Do not exceed rated capacity.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.

Specifications

• Application: Wire Pulling
• Maximum Safe Load (kg): 3628.7
• Maximum Safe Load (lb): 8000
• Width: 4.9500 in
• Cable Type: Copper, ACSR, AAC
• Spring: Yes
• Jaw Type: Round
• Hot Latch: No
• Weight (kg): 3.4
• Height: 1.5840 in
• Jaw Length (Inch): 5.688
• Swing Latch: No
• Weight: 7.4250 lbs
• Cable Diameter: 0.74" to 0.86" (18.8 to 21.84 mm)
• Depth: 9.9000 in
• Type: Chicago Grip
• Jaw Length (cm): 14.4
• Material: Steel
• Weight (lb): 7.4
• Teeth Type: Notched
• Locking Handle: Yes
