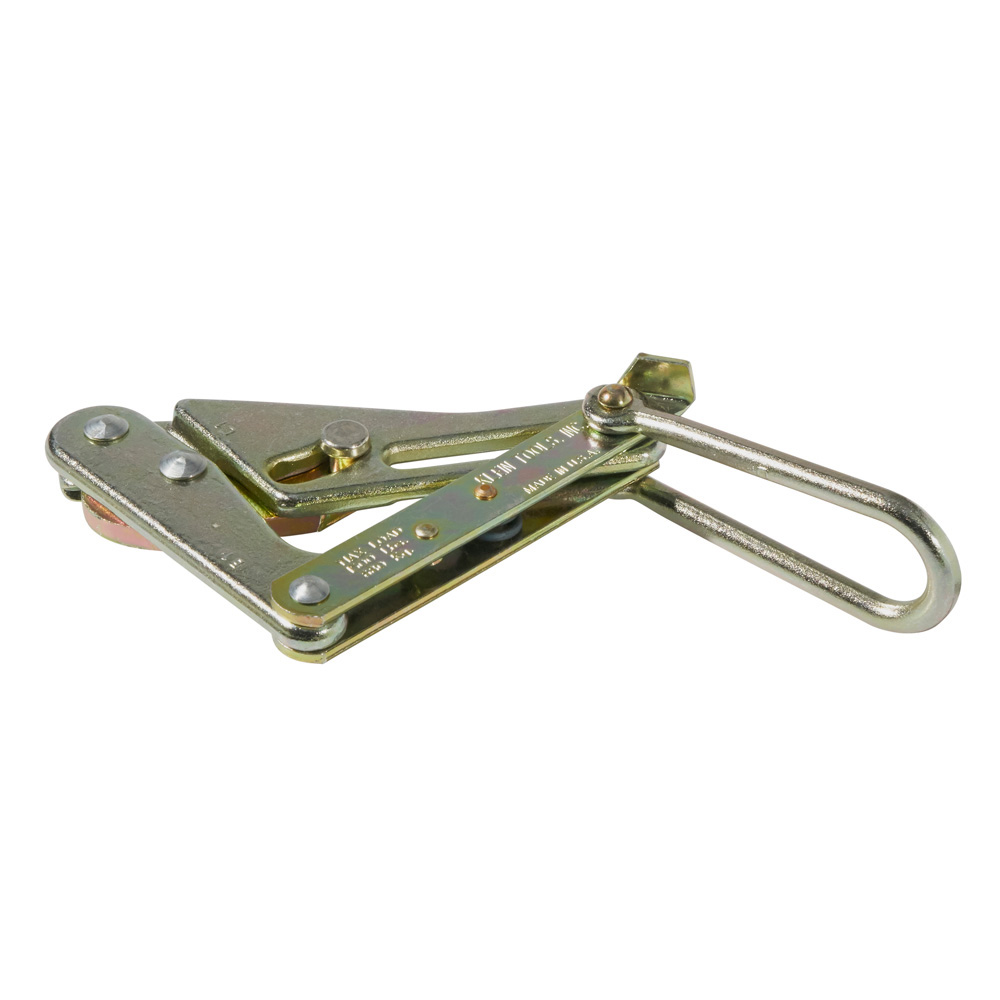

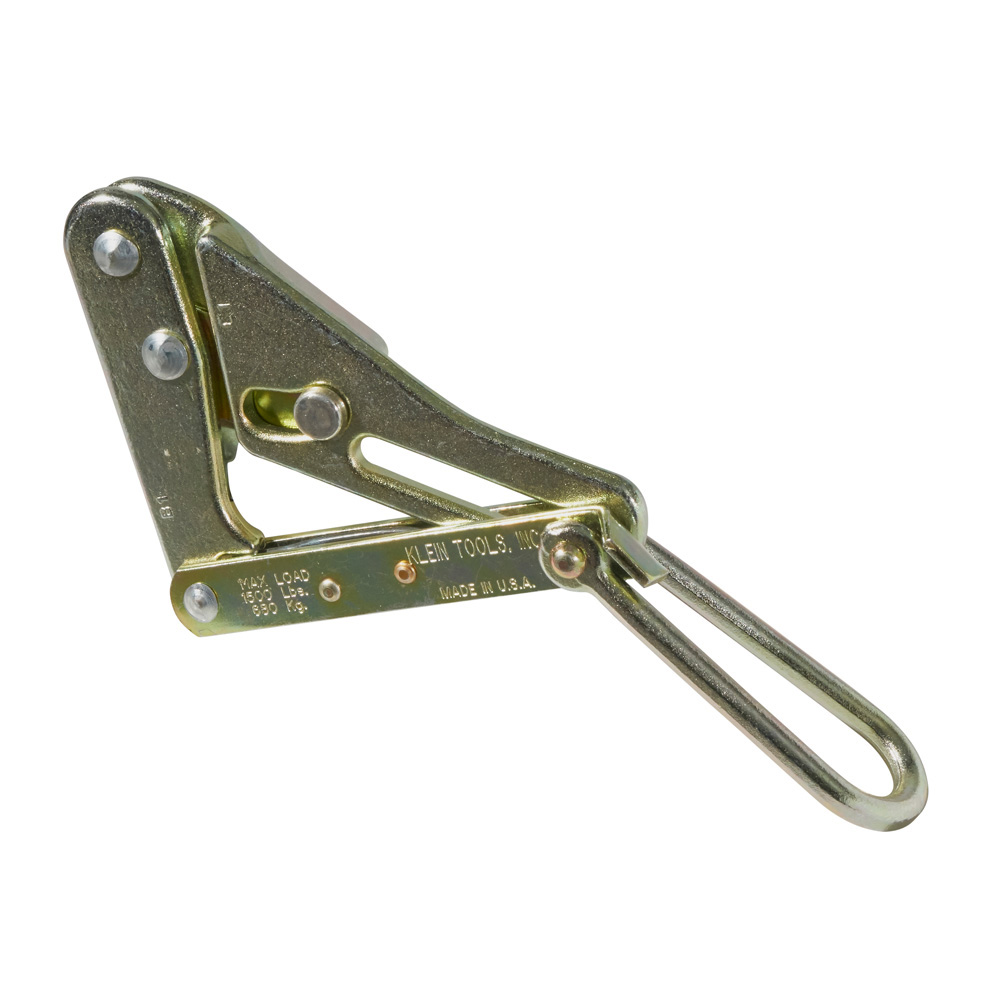

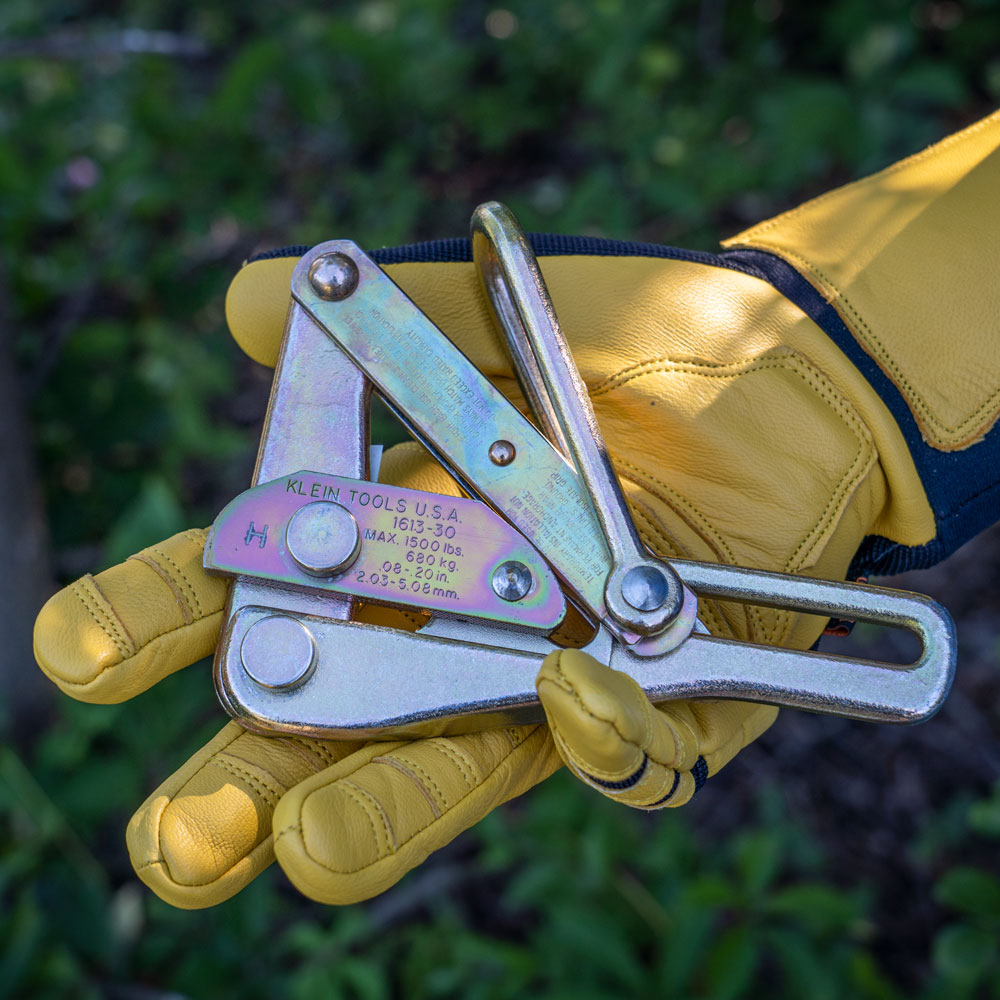

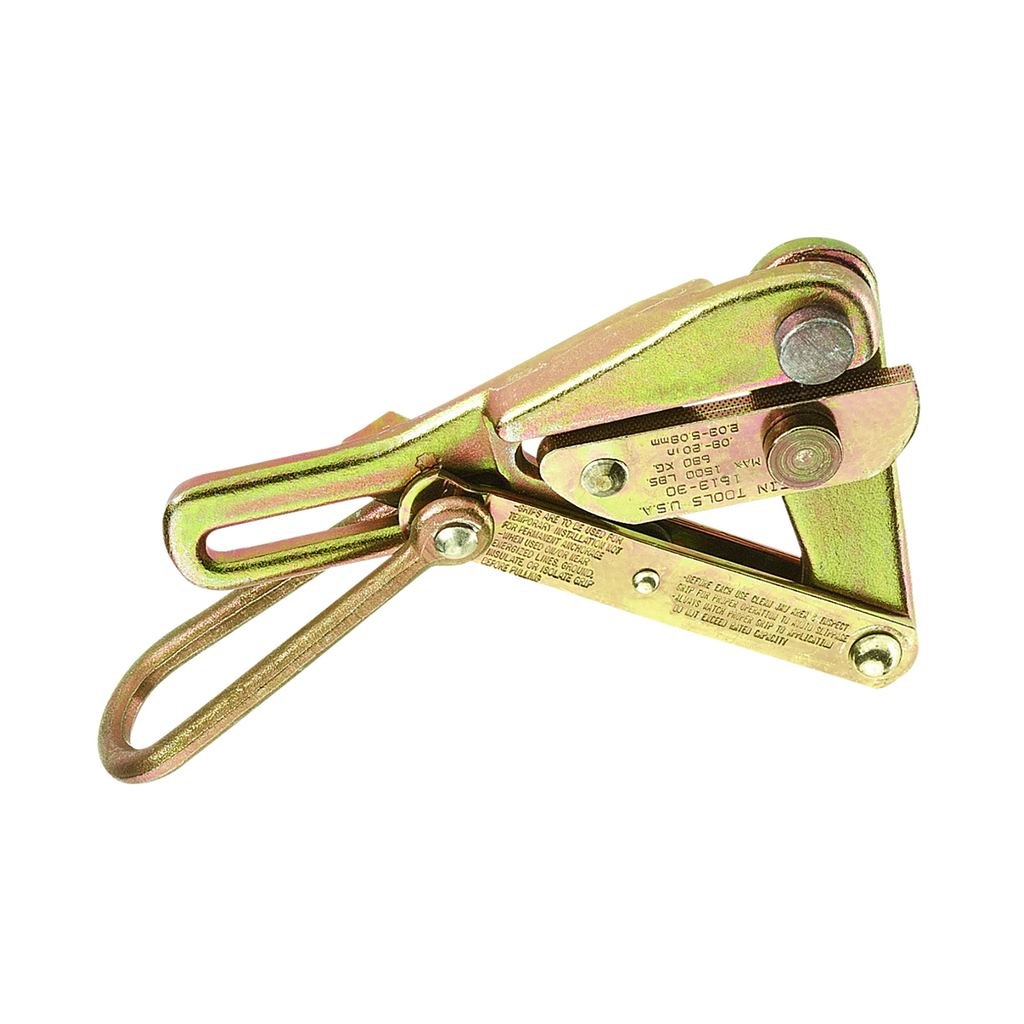

Chicago® Grip for Bare Wire

Klein Tools' 1613 Series Bare Wire Chicago Grips are designed to work with solid and stranded bare wire from 0.08-Inch to 0.20-Inch (2 mm to 5.1 mm). All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

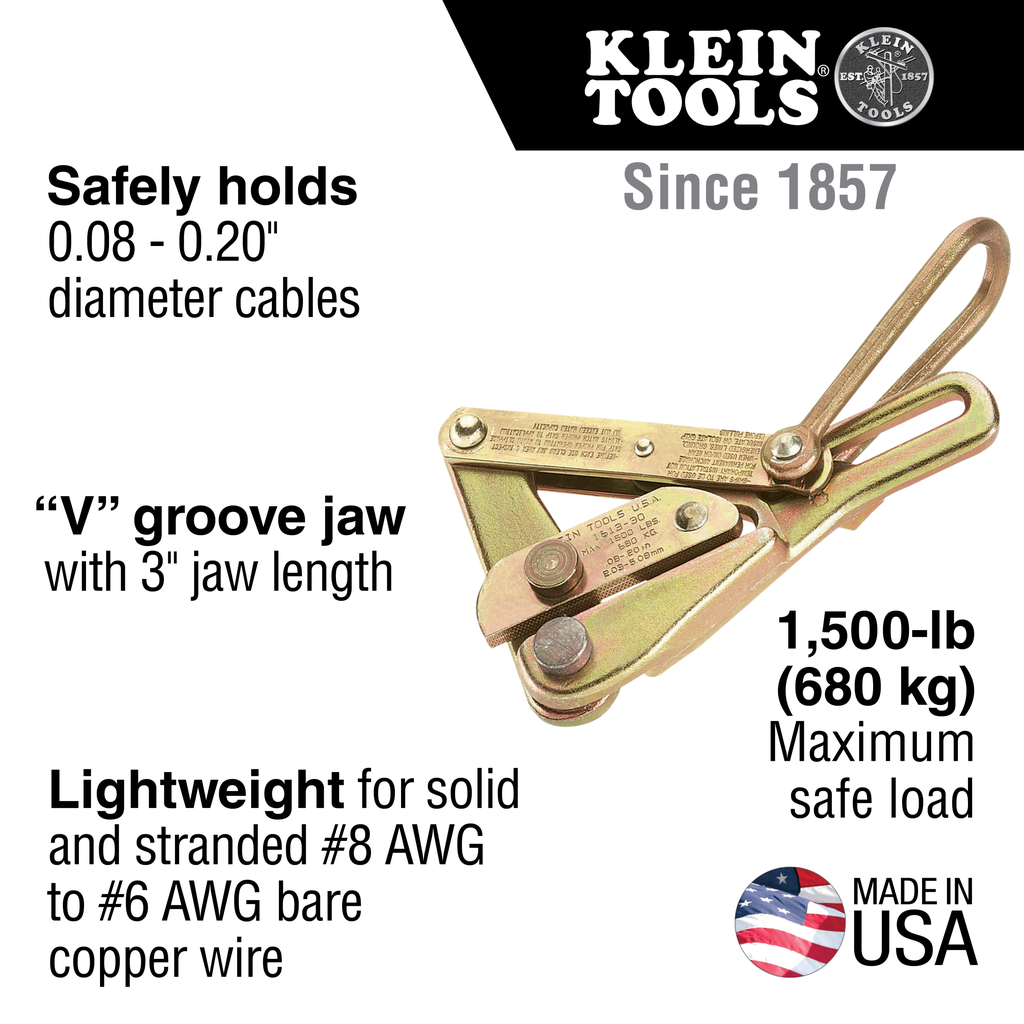

Features

• Lightweight, cost-effective grip for solid and stranded #8 AWG to #6 AWG bare copper wire
• Works within 0.08 to 0.20-Inch (2.0 to 5.1 mm) cable diameter range
• Single ''V'' groove jaw with 3-Inch jaw length
• Made in USA
• Max Safe Load of 1500-Pound (680 kg)

Warnings

• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Always match proper size and type of grip to application.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
• Do not exceed rated capacity.
• Grips are to be used for temporary installation, not for permanent anchorage.

Specifications

• Locking Handle: Yes
• Jaw Length (cm): 7.6
• Material: Steel
• Depth: 4.5000 in
• Weight (kg): 0.7
• Swing Latch: No
• Type: Chicago Grip
• Spring: Yes
• Cable Type: Copper, ACSR, Steel Strand

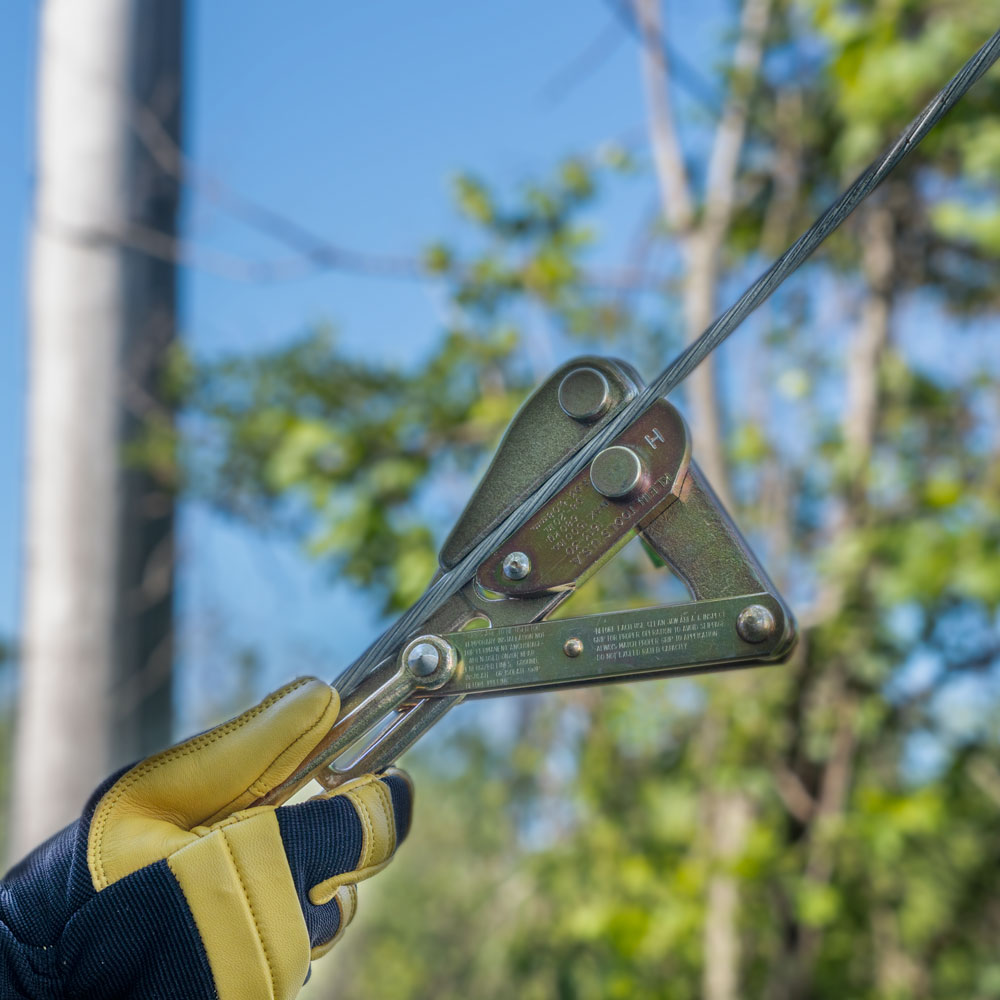

• Application: Wire Pulling
• Jaw Type: Single V
• Jaw Length (Inch): 3
• Width: 4.5000 in
• Weight (lb): 1.5
• Height: 1.4670 in
• Maximum Safe Load (lb): 1500
• Weight: 1.4580 lbs
• Teeth Type: Smooth
• Cable Diameter: 0.08" to 0.2" (2.03 to 5.08 mm)
• Maximum Safe Load (kg): 680.4
• Hot Latch: No
