Grip for High Strength Cables 0.37-Inch

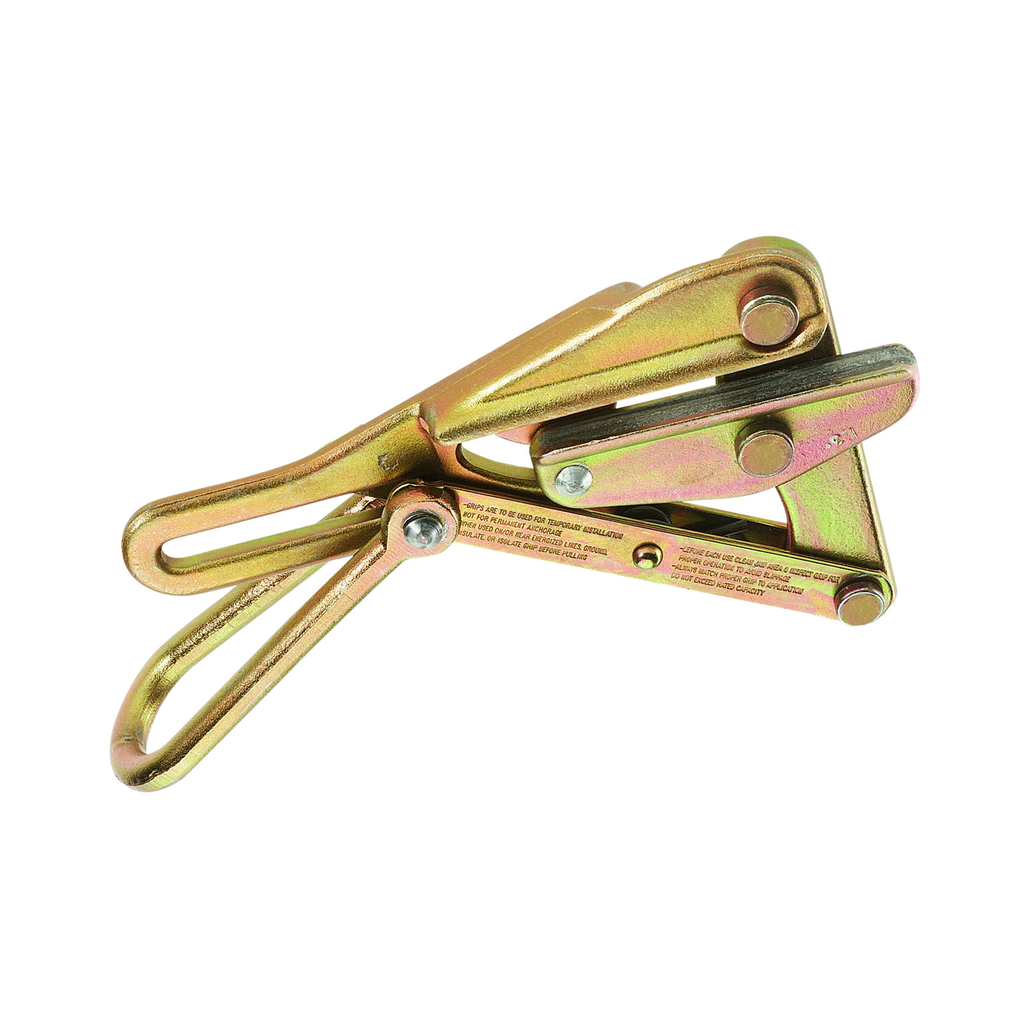

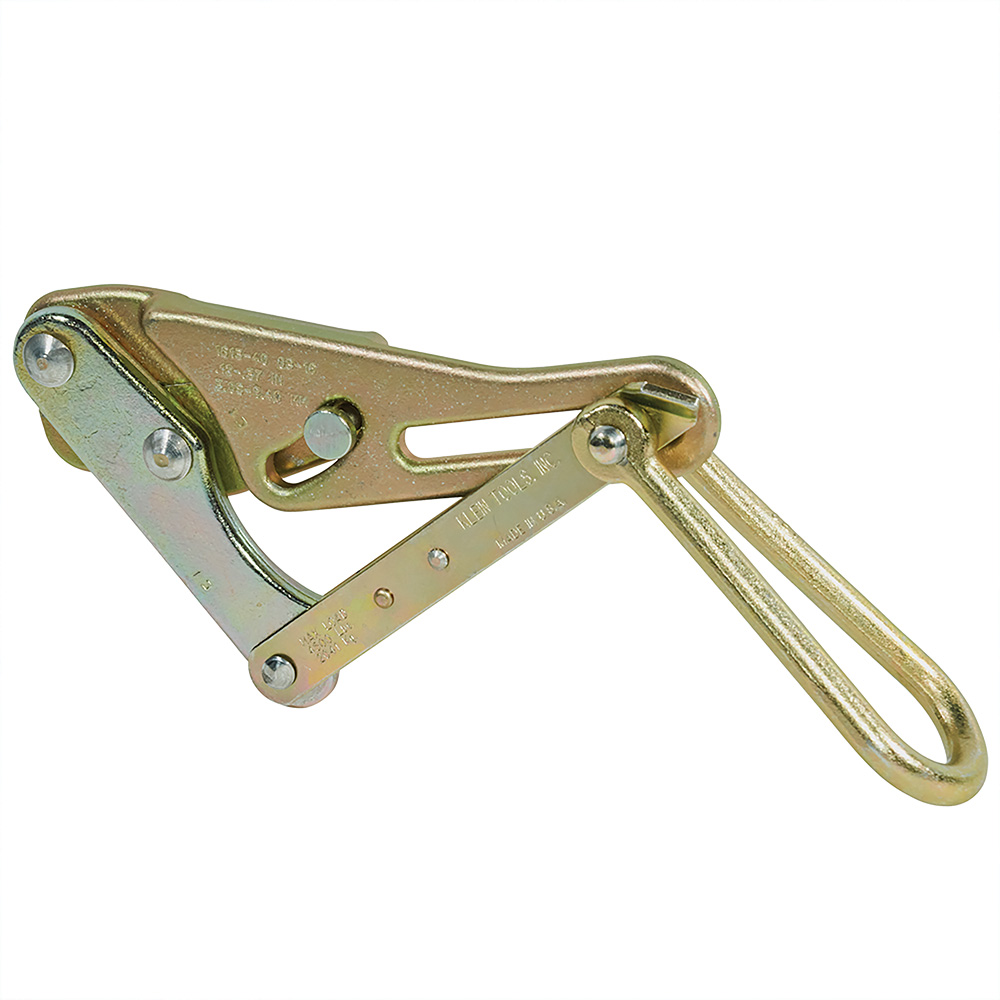

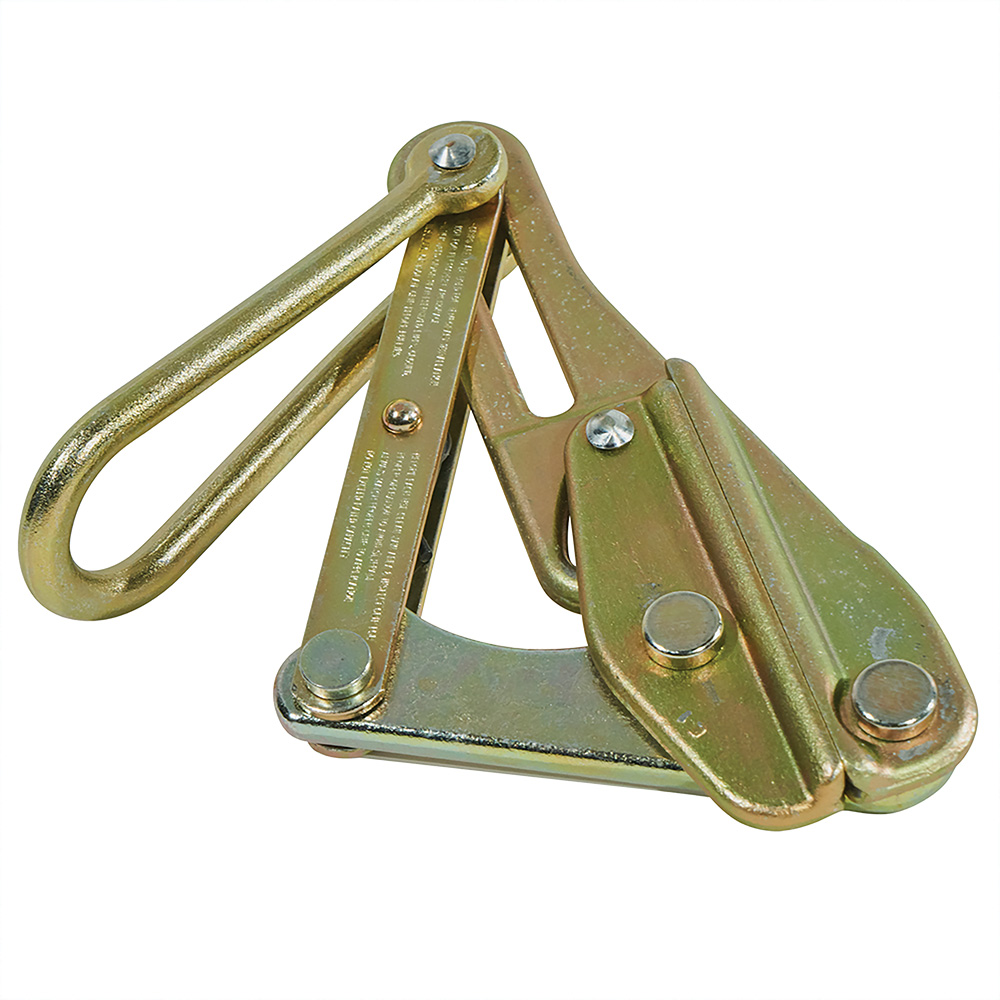

This Klein Tools 1613-40 Chicago Grip is designed for EHS, Messenger, and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Features

• Made in USA
• Double ''V'' grooves give four-point contact, reducing chance of slipping and providing proper alignment of wire and cable
• Designed for cable sizes from 0.12 to 0.37-Inch (3.05 to 9.40 mm) and has max safe load of 4500-Pound (2041 kg)
• For larger conductors, see our grips with round inside-jaw contour
• Works with aircraft, EHS, messenger and guy strand cable

Warnings

• Grips are to be used for temporary installation, not for permanent anchorage.
• Always match proper size and type of grip to application.
• When used on/near energized lines, ground, insulate, or isolate grip before pulling.
• Do not exceed rated capacity.
• Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.

Specifications

• Swing Latch: No
• Weight: 2.6640 lbs
• Jaw Type: Double V
• Hot Latch: No
• Jaw Length (cm): 10.6
• Width: 4.2750 in
• Cable Diameter: 0.12" to 0.37" (3.05 to 9.4 mm)
• Maximum Safe Load (kg): 2041.2
• Teeth Type: Smooth
• Height: 2.0250 in
• Jaw Length (Inch): 4.188
• Material: Steel
• Type: Chicago Grip
• Maximum Safe Load (lb): 4500
• Cable Type: Aircraft, EHS, Messenger, Guy Strand
• Depth: 7.4250 in
• Spring: No
• Locking Handle: Yes
• Application: Wire Pulling
• Weight (kg): 1.2
• Weight (lb): 2.7
